Fischer Sprinkler loop hanger M10 1 1/4 00516665

Fischer
Fischer
FIS 00516665 4048962139945

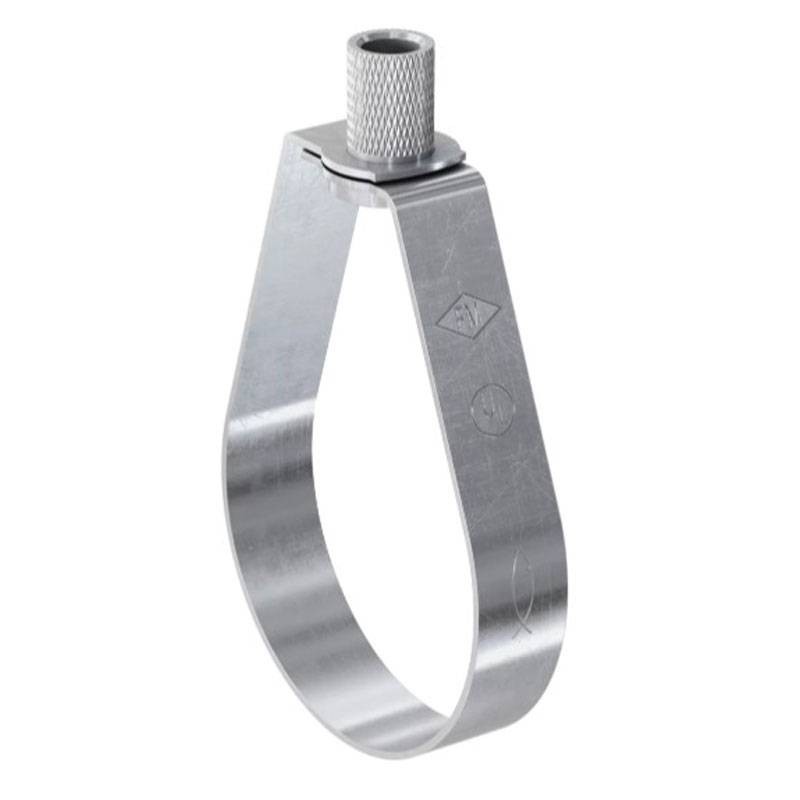

Galvanized steel Fischer Sprinkler loop hanger with height adjustment, conforming to FM and UL standards for fire protection systems, with the following features:

  • Nominal size: 1 1/4 inches

  • Thread: M10

  • Height: 78 mm

  • Width x Band Thickness: 16 x 1.2 mm

  • Maximum static load: 2 kN

  • Material: Steel

  • Coating: Anti-corrosion galvanizing

Do you have questions about this product or did you not find what you were looking for? Ask us!
Fischer Sprinkler loop hanger M10 1 1/4 00516665
€0.66
€0.66

€0.66
Tax included
Calculate shipping cost
Items Available: 179
Further availability of the manufacturer
€0.66

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Fischer Sprinkler loop hanger M10 1 inch 1/4

Safe and reliable installation for sprinkler systems

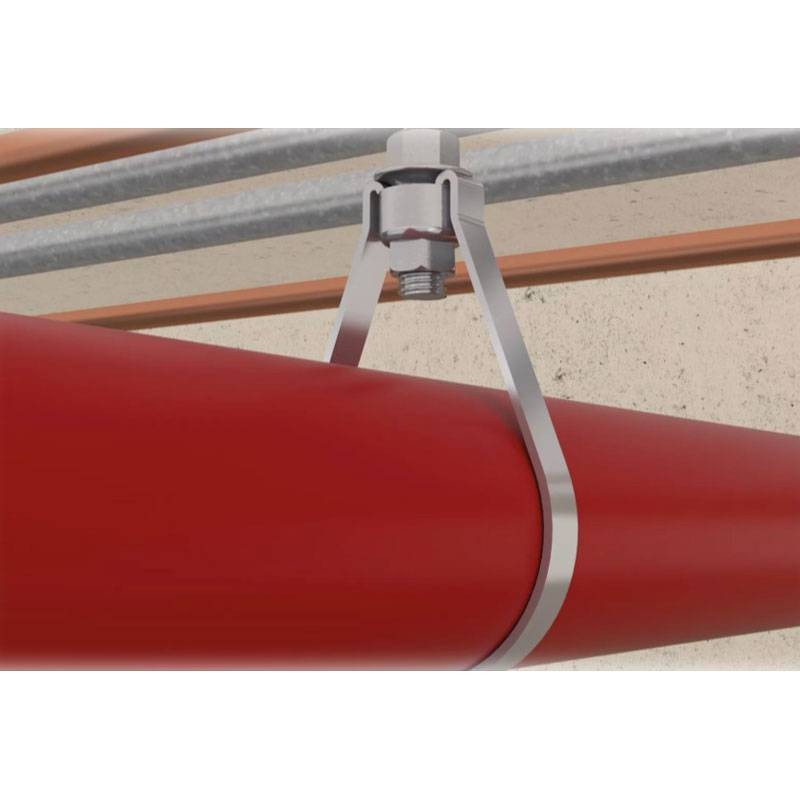

The Fischer FRSP M10 1 1/4 inch loop hanger is an essential component for installing piping in fire sprinkler systems. With FM and UL certifications, it offers guaranteed safety and compliance with international standards. This makes it an ideal choice for installations in civil, industrial or commercial environments.

Robust material and anti-corrosion treatment

The loop hanger is manufactured from steel, a high-quality material that complies with DIN EN 10327. The galvanized coating provides effective protection against corrosion, ensuring a long service life even in harsh environmental conditions.

Easy and precise adjustment

Thanks to the integrated threaded nut, the Fischer loop hanger allows quick height adjustment, making it easy to adapt to different installation configurations. This feature is particularly useful for complex installations or in limited spaces.

Ideal Applications

Designed specifically for fire sprinkler systems, the Fischer loop hanger is compatible with piping certified to FM and UL parameters. Its maximum static load capacity of 2 kN (centered tension) makes it suitable for installations of different sizes.

Key features:

  • Height adjustment: Easy to adjust thanks to the threaded nut

  • Corrosion protection: Galvanized coating for durability

  • Suitable for sprinkler piping: Ideal for FM and UL certified installations

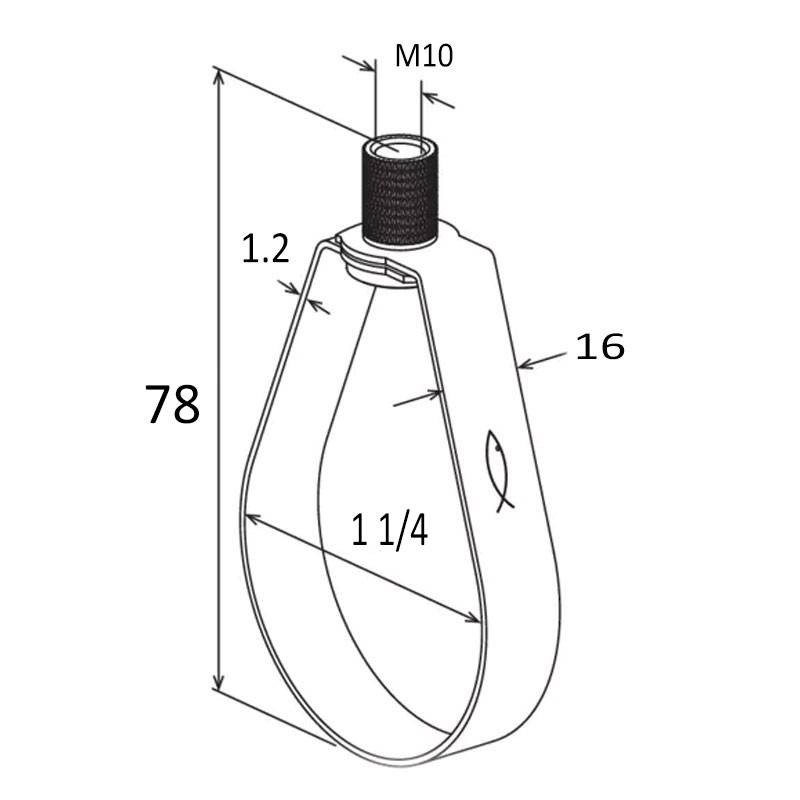

  • Compact size: 78 mm height, 16 mm band width, 1.2 mm thickness

There are no reviews

Data sheet

Type:
Collars
Connections:
1-1/4 inches
Material:
Steel
