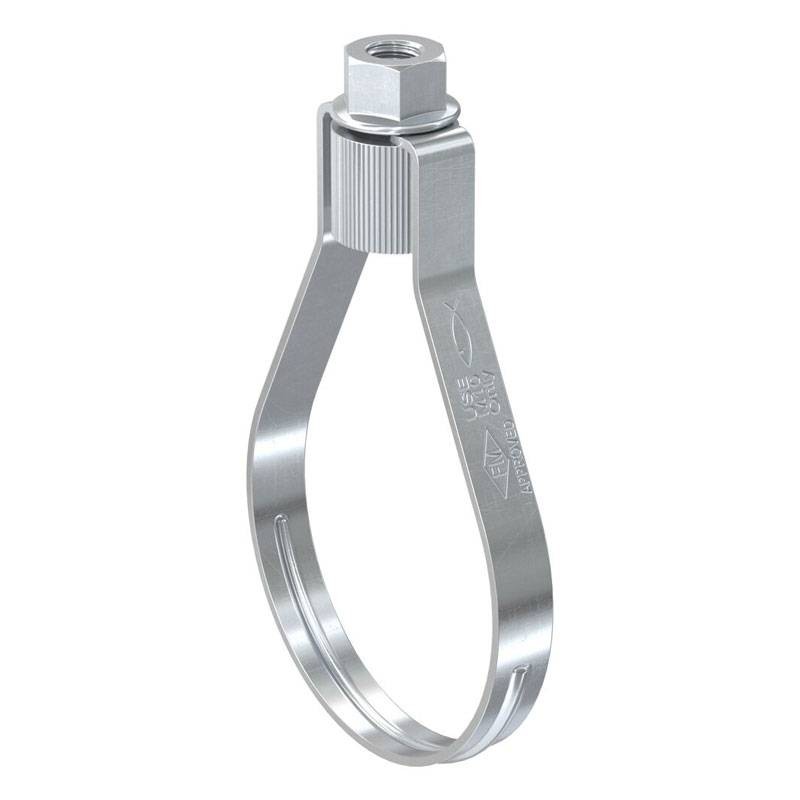

Fischer Sprinkler pipe collar FRLH 5 M12 00570240
FIS 00570240
4048962504217
The Fischer FRLH 5'' M12 Sprinkler System Collar is designed for secure and adjustable fixing of piping in sprinkler systems. With VdS and FM certifications, it ensures reliability and quality for applications in dry environments. High-strength steel construction with sendzimir galvanizing makes it a durable product that meets safety standards:
VdS and FM certifications: Ensures safety for use in fire sprinkler systems
Cable height adjustment: Easy adjustment with top connecting nut
High-quality materials: Made of DX51D+Z 275 MA steel with sendzimir galvanizing for corrosion protection
Quick and reliable fastening: Quick-attach system for easy installation.
€5.79
Items Available: 25
Collar for Sprinkler Systems Fischer FRLH 5'' M12 570240
- VdS and FM approvals: Maximum safety and compliance with international regulations.
- Sturdy material: Steel certified to DIN EN 10364/10143 for strength and durability.
- Easy adjustment: Adjusting nut for precise and stable fastening.
- Corrosion protection: Sendzimir galvanizing for long life in dry environments
Applications

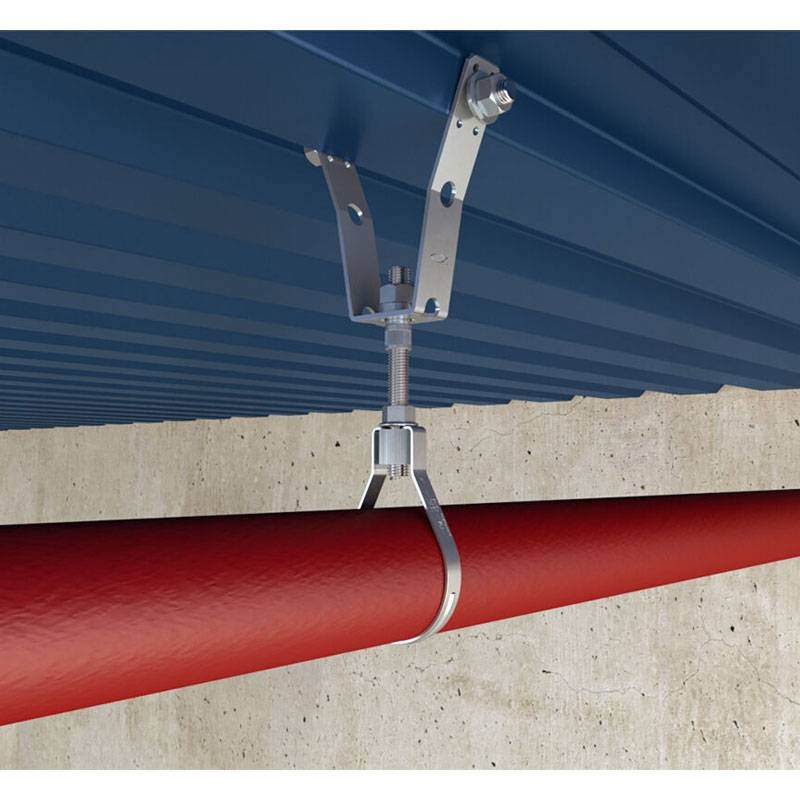

- Ideal for installation of sprinkler piping in fire protection systems.
- Designed for use in dry environments.
- Perfect for applications where precise height adjustment is required
Collar properties
- Collar material: Steel DX51D+Z 275 MA according to DIN EN 10364/10143.
- Galvanizing: Sendzimir for corrosion resistance.
- Adjusting nut material: 11SMnPb37 steel according to DIN EN 10087, electrolytically galvanized
Certifications
- VdS certification: PR466911
- FM certification: G 423025
Technical Data
- Height 235 mm
- Width x Thickness collar band 15 x 2.5 mm
- M12 threading
- Maximum static load (Nrec)8 kN (centered tension)
- Clamping range139.7 mm
There are no reviews
Data sheet
- Type: Collars
- Material: Steel
