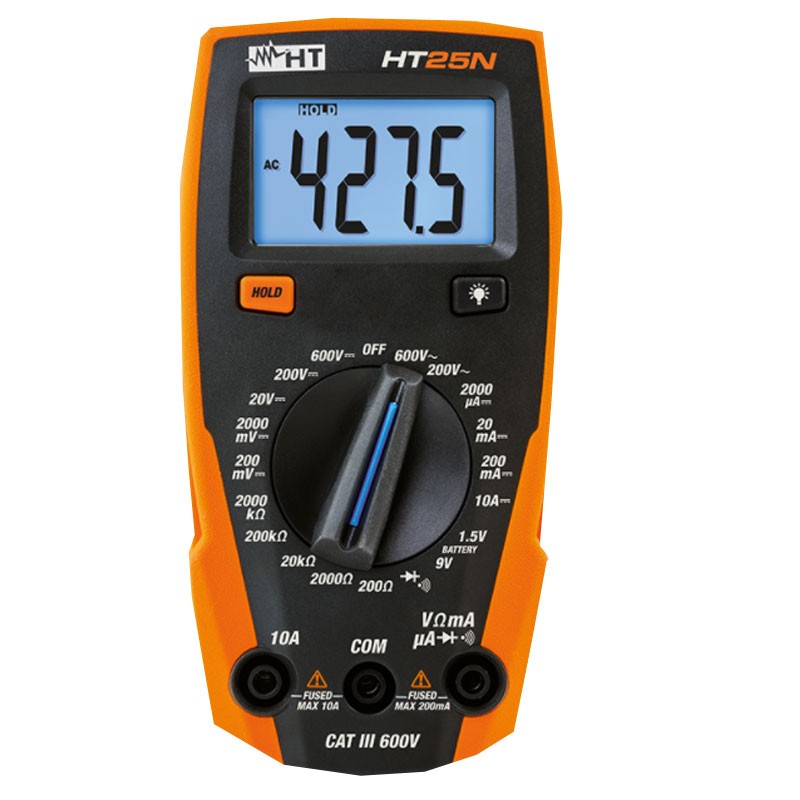

HT Italia Compact digital multimeter in CAT III HT25N
HTI HR00025N
8033100183160
Multimeter HT Italy digital, with the following features:
- Compact in category III
- Power supply: 1x9V battery NEDA 1604 IEC 6F22
- Autonomy: about 30h (backlight ON), about 130h (backlight OFF)
- Protection fuses: quick 10A/600V, 5x20mm (10A input), quick 200mA/600V, 5x20mm (mAuA input)
- LCD display, 3 ½ digits with maximum reading 2000 points plus sign and decimal point
- Automatic polarity indication
- Backlight
- OL" out of scale indication
€54.87
Items Available: 56
: 9
HT25N is a compact digital multimeter able to perform mainly measures of AC/DC Voltage up to 600V and DC Current up to 10A with complementary functions of Resistance, Continuity Test, Diode Test and 9V and 1.5V alkaline battery test.
It hasbeen designed according to IEC/EN61010-1 safety standard with double insulation protection in CAT III 600V. They are equipped with a large backlit LCD display and each function can be selected through the appropriate switch. Another function provided is the Data HOLD for maintaining the values on the display.
Features:
- HT Italia Series
- Functions: Data HOLD
- Low battery indication: "BAT" symbol appears when battery voltage is too low
- Operating temperature: 0°C to 50°C, <70%RH
- Storage temperature: -20°C to 60°C, <80%RH
- Maximum altitude of use: 2000 m
- Pollution degree: 2
- Insulation: double insulation
- Dimensions: 150 x 70 x 48 mm
- Weight (including battery) 25 grams
- Reference standards: Safety: IEC/EN61010-1, CAT III 600V to ground - EMC: IEC/EN61326-1
There are no reviews
Data sheet
- Type: Multimeters
