Innova Farna Small Fancoil 1.50 - 1.80 kW FARNASSC1II

Innova
Innova
NNV FARNASSC1II

Ultra-compact 2-pipe Innova FÄRNA Small fancoil with flexible installation, ideal for modern and space-constrained rooms without sacrificing thermal performance.

  • Cooling power: 1.50 kW

  • Heating power: 1.80 kW

  • System: 2 pipes

  • Metal design: sturdy and stylish

  • Versatile installation: bottom, top, side, wall or ceiling

  • Color: white RAL 9003

  • Footprint: reduced by 32% compared to equivalent models

  • Compatible accessories (optional): M7 control EWA044II, 3-way valve V30721II

Do you have questions about this product or did you not find what you were looking for? Ask us!
Innova Farna Small Fancoil 1.50 - 1.80 kW FARNASSC1II
€410.46
€410.46

€410.46
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€410.46

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Fancoil Innova FÄRNA Small: Maximum output in minimum space

The Fancoil Innova FÄRNA Small was created to meet the most complex installation requirements: small rooms, sophisticated design, architectural constraints. All this without sacrificing efficiency. Its small size makes it perfect for discreet but effective installations in modern residences, hotels, offices or commercial environments.

Installation without limits

With FÄRNA you can say goodbye to installation constraints: it mounts high, low, on the wall, suspended, under shelves or on partitions. This fancoil is designed to fit any space, maximizing comfort and energy savings.

Elegant and functional design

FÄRNA Small combines compact and elegant shapes with an all-metal body. It is not just an air conditioning terminal, but a technical furnishing element with strong aesthetic and functional value. Perfect for prestigious environments, it integrates technology, efficiency and design.

Compatible accessories (not included)

  • M7 SERIES on-board control Cod. EWA044II Modulating touch-screen control with integrated Wi-Fi

  • 3-way diverter valve unit Cod. V30721II Complete solution with lockshield and calibrated hydraulic by-pass

Strengths of Innova FÄRNA Fancoils

  • Versatile: Usually fancoils are installed either at the bottom or at the top. FÄRNA installs on the top, bottom, middle, side, bottom, middle, this way, that way... Everything is possible with FÄRNA!

  • Dimensions: Reduce space, significantly, leaving all the power needed for a large room. Compared to classic AirLeaf models of similar power, FÄRNA reduces the size (width) of the machine by 32% - a third! Not a small machine, but a powerhouse of power

  • Power: Increase the power, significantly, while leaving the size unchanged. Compared to classic AirLeaf models of similar size, FÄRNA increases power by a factor of three

  • Design: Elegant, different, unconventional design is specifically designed for a multifunctional product like FÄRNA. If the size hides the product, the design makes it prominent and valuable. A solution made entirely of metal

Technical specifications of the Fancoil Farna Small

Performance in Cooling (W 7/12 °C; H 27 °C)

Total output in cooling 1.50 kW
Sensible output in cooling 1.26 kW
Water flow rate 253 L/h
Water pressure drop 9.0 kPa
Maximum power consumption 15 W
Maximum sound power 53 dB(A)


Heating Performance (W 45/40 °C; H 20 °C)

Heating output 1.80 kW
Water flow rate 304 L/h
Pressure drop 10 kPa
Maximum power consumption 15 W
Maximum sound power 53 dB(A)


Hydraulic Data

Maximum operating pressure 10 bar
Hydraulic connections " EK 3/4


Electrical Data

Power supply 230/1/50 V/ph/Hz
Maximum current consumption 0,06 A
Power consumption at minimum speed 3,1 W


Aeraulic Data

Booster air flow rate 303 m³/h
Maximum air flow rate 272 m³/h
Average air flow rate 207 m³/h
Minimum air flow rate 101 m³/h
Superminimum air flow rate 63 m³/h


Sound Data

Sound pressure at maximum air flow rate 42 dB(A)
Sound pressure at medium air flow rate 34 dB(A)
Sound pressure at minimum air flow rate 25 dB(A)

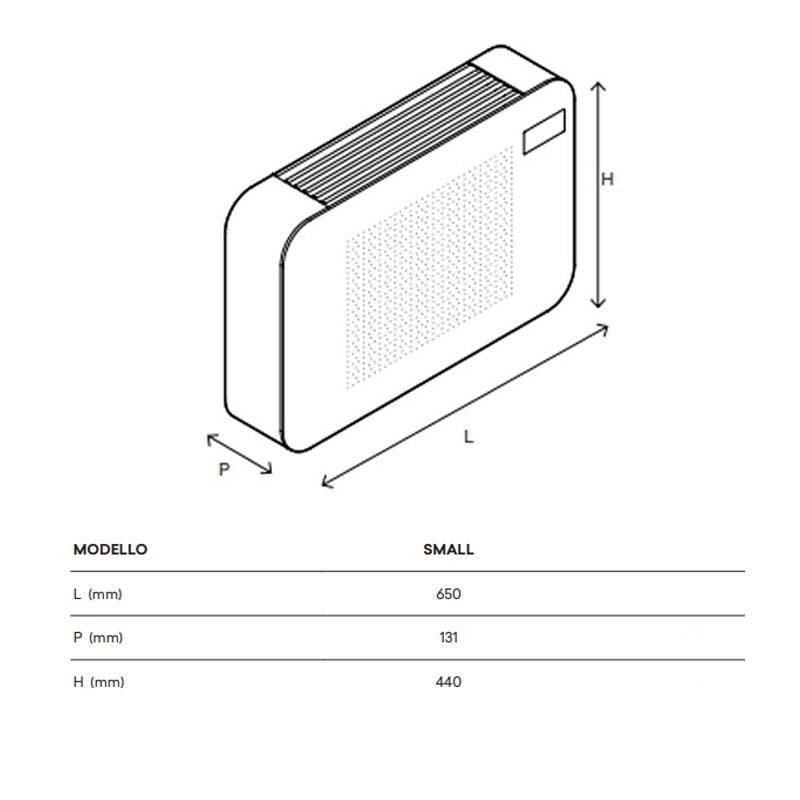

Dimensions and Weights Product

Width 650 mm
Height 440 mm
Total depth 131 mm
Net weight 13.1 kg

There are no reviews

Data sheet

Type:
Fan-Coils
Power:
1,50/1,80KW
Installation:
Wall-mounted
Connection:
Single-phase
Series:
Farna Small
