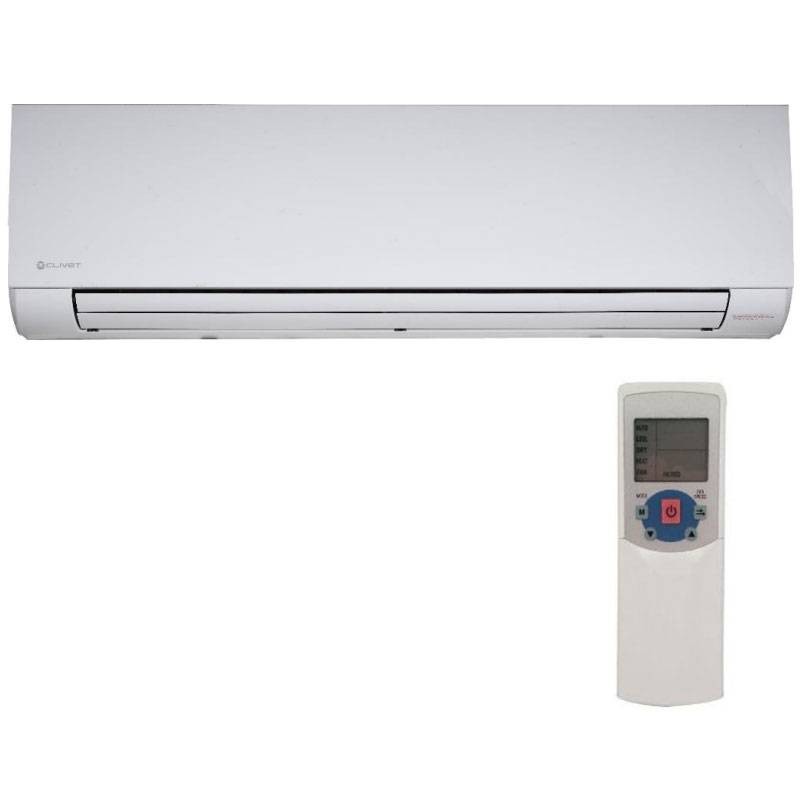

Clivet Mood wall-mounted Fancoil CFW-2 4.47 KW 87012270
CLV 87012270
Clivet Mood CFW-2-4 Wall-mounted Fancoil:
- Total cooling capacity High/Medium/Low 4.47/3.98/3.48 kW
- Total heating capacity High/Medium/Low 4.84/4.23/3.62 kW
- Long-life filter
- Brushless DC motor
- New electronics
- LED with set temperature indication
- Horizontal and vertical baffles
- Remote control included
- Equipped as standard with 3-way ON/OFF valves and clean contact for generator call
- Quiet and efficient, thanks to brushless DC fan motor
- Input contact for 0-10V management as standard
- Management via Modbus port with connection to BMS or Control4 NRG system
Optional accessory to be purchased separately User interface code 87022211.
€631.35
Items Available: 2
: 1
Frequently bought together
MOOD is the new water terminal unit for wall installation, designed to provide maximum comfort and a design that matches residential and tertiary environments. Thanks to the new electronics supplied as standard, MOOD allows maximum flexibility of integration with various Clivet control systems and third-party supply. The new Polar White color aesthetic and temperature-indicated LEDs allow the unit to marry with domestic and commercial design environments.
Wide range:
- Mood is available in 5 sizes, each with a wide operating range by adjusting the fan speed, which combined allow for one of the widest ranges on the market.
Strengths:
- Unit comes with installation template for easy positioning
- Unit components are easily accessible by simply lifting the front panel
- Piping can be directed as desired to the right, left or to the wall
- The 3-way valve is already mounted on board the unit
Features of the supplied remote control:
- Back-lighting
- On/Off
- Operation selection: Auto, Cooling, Heating, Dehumidification, Ventilation
- Ventilation speed selection: Auto, High, Medium, Low
- Temperature setting: 17°C÷30°C
- Daily On/Off timer setting
- Flap position setting (swing)
There are no reviews
Data sheet
- Type: Fan-Coils
- Power: 4,47/4,84KW
- Installation: Wall-mounted
- Connection: Single-phase
- Series: Mood
