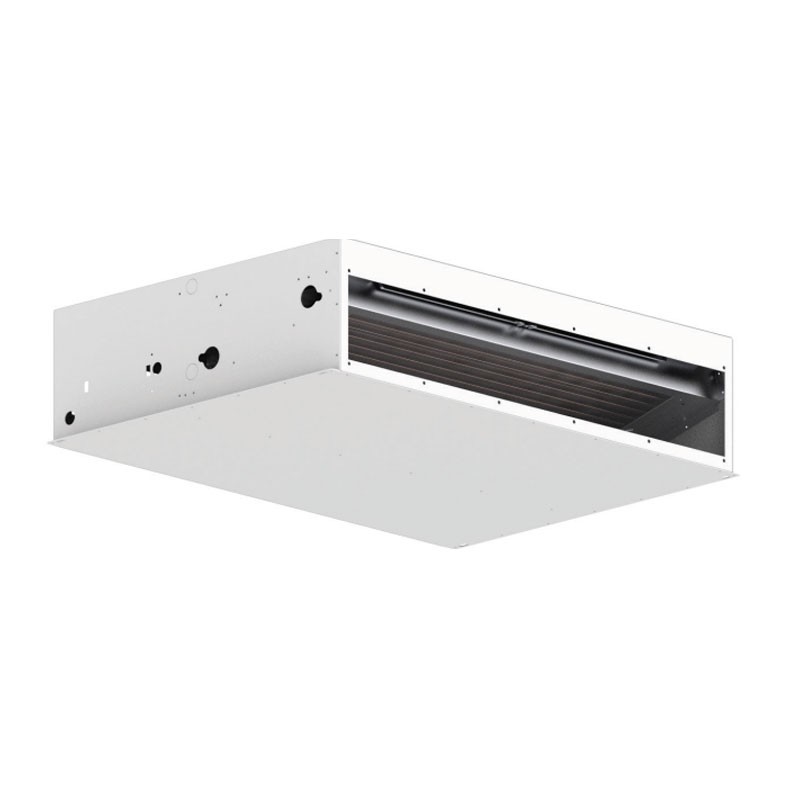

Innova Ducto SLC 1000 Ducted Fancoil 3.48-4.46 kW FASN10R01II-0R00
NNV FASN10R01II-0R00
Innova Ducto SLC 1000 built-in ducted fan coil unit, ideal for horizontal or vertical applications. DC Inverter technology for comfort, quiet operation and energy efficiency. Compatible with M7 controls and EFB749II Wi-Fi wall panel (not included to be purchased separately).
-
Cooling performance (W 7/12; A 27), Total power output: 3.48 kW
-
2-pipe version
-
Heating performance (W 45/40; A 20), Total power output: 4.46 kW
-
Optimal heat output for large rooms
-
Horizontal or vertical built-in installation
-
Compatible with EFB749II wall control with built-in Wi-Fi (not included)
-
Eurokonus 3/4-inch plumbing connections on the right side as standard
-
Factory-fitted aeraulic flanging ready for connection to ducts
-
DC inverter motor with modulating speed (M7 control)
-
Integrated electronic board for continuous modulation.
€927.32
Items Available: 1
Frequently bought together
Ducted Fancoil Innova Ducto SLC 1000 DC
The Innova Ducto SLC 1000 Ducted Fancoil is the ideal solution for those looking for a high-performance air conditioning system that can be fully integrated into false ceilings or walls. Thanks to DC Inverter technology and centrifugal ventilation with modulating speed, it provides maximum thermal comfort with minimum energy consumption.
The unit is prepared for both horizontal and vertical installation, offering wide design flexibility. Plumbing and electrical connections are located on the same side, simplifying installation work. Pairing with M7 series remote controls or wall-mounted panels with touch interface, such as the EFB749II with Wi-Fi (to be ordered separately), is required.
Constant flow, excellent comfort
Fancoil Ducto are INNOVA's ducted fancoils designed to fit perfectly inside any wall. Unlike traditional ducted fancoils, where the flow varies according to air resistance, DUCTO is intelligent because at all times it recognizes the resistance in the air and automatically varies the speed so that the air flow is constant, thus offering top thermal comfort at all times.
With Ducto, silence is ducted
Like all INNOVA fancoils, DUCTO can also boast very high standards of silence. Unlike normal on-off products that alternate annoying air currents with moments of absolute standstill, with DUCTO the air movement is constant and imperceptible. The centrifugal fan with single-motor impeller gradually dampens the revolutions when the set temperature is reached-a technical solution aimed at minimizing noise.
Ducto Fancoil Installation.
DUCTO can be installed either horizontally recessed or vertically recessed to meet the needs of any home and any architectural design. One product, two application possibilities, both extremely high-performance.
Strengths of the Fancoil Innova
-
Maximum comfort with the lowest consumption thanks to DC Inverter technology that guarantees perfect operating stability
-
Centrifugal fan with constant flow rate that automatically adapts to duct pressure drops
-
Modulated air flow
-
Quiet operation with single-motor impeller centrifugal fan
Technical specifications of Fancoil Ducto SLC 1000
Fancoil Aeraulic Performance
| Parameter | Value |
|---|---|
| Maximum air flow rate | 905 m³/h |
| Average air flow rate | 550 m³/h |
| Minimum air flow rate | 260 m³/h |
| Useful head | 140 Pa |
Performance in Heating (W 45/40 °C; H 20 °C)
| Parameter | Value |
|---|---|
| Total power output | 4.46 kW |
| Water flow rate | 910.00 L/h |
| Pressure drop | 18.37 kPa |
| Maximum power consumption | 38 W |
| Maximum sound power | 58 dB(A) |
Cooling performance (W 7/12 °C; A 27 °C)
| Parameter | Value |
|---|---|
| Total power output | 3.48 kW |
| Sensible power output | 2.95 kW |
| Water flow rate | 760.00 L/h |
| Pressure drop | 14.00 kPa |
| Maximum power consumption | 38 W |
| Maximum sound power | 58 dB(A) |
Room Side Fan
| Parameter | Value |
|---|---|
| Fan Type | Ec Brushless centrifugal forward-bladed |
| Number of fans | 2 |
| Maximum absorbed current | 0,74 A |
| Maximum power consumption | 170 W |
Room Side Sound Levels (UNI EN 3741; 3744)
| Parameter | Value |
|---|---|
| Sound power transmitted to the structure Lw | 62.0 dB(A) |
| Radiated sound power in the channel Lw | 69 dB(A) |
| Average sound pressure at 1 m Lp | 49.0 dB(A) |
| Average sound pressure at 3 m Lp | 41.0 dB(A) |
Heat Exchanger (W 7 / W 12)
| Parameter | Value |
|---|---|
| Coil water content | 1,80 L |
| Maximum operating pressure | 10 bar |
Electrical Characteristics
| Parameter | Value |
|---|---|
| Power supply | 230 V / 1 ph / 50 Hz |
| Maximum total power consumption | 170 W |
| Total current consumption | 1,50 A |
| Degree of protection | IP X0 |
Product Dimensions
| Parameter | Value |
|---|---|
| Width | 1190 mm |
| Length | 695 mm |
| Height | 240 mm |
| Weight | 56.0 kg |
Connections
| Parameter | Value |
|---|---|
| Condensate drain connection | 20 mm |
| Hydraulic connections | EK 3/4 inch |
| Intake air connection | 1060 × 150 mm (base x height) |
| Return air connection | 1110 × 150 mm (base x height) |
There are no reviews
Data sheet
- Type: Fan-Coils
- Power: 3,48/4,46KW
- Installation: Duct
- Connection: Single-phase
- Series: Ducto SLC
