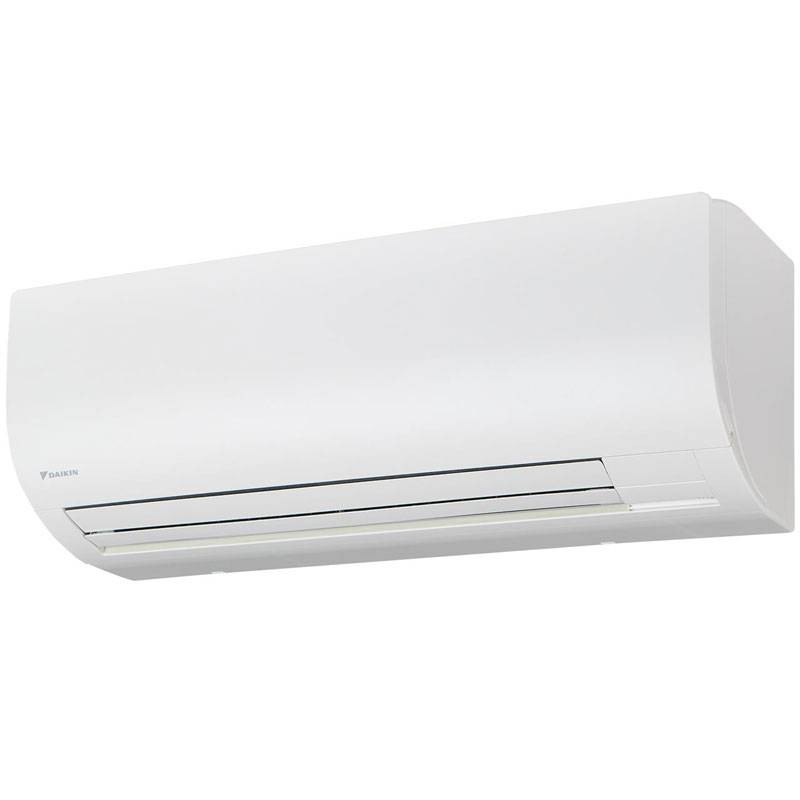

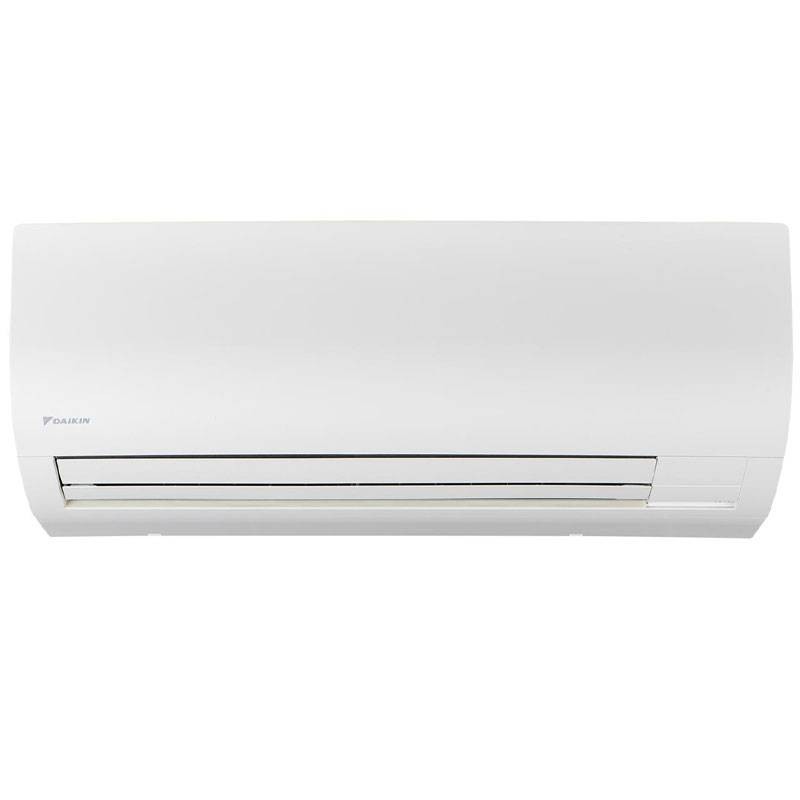

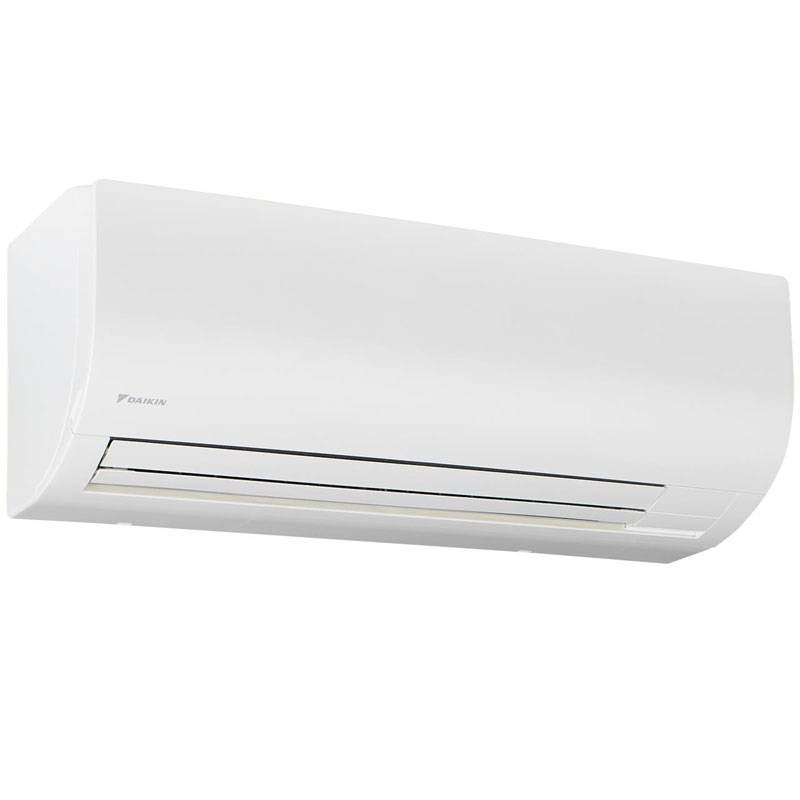

Daikin 2.8kW wall-mounted indoor unit for VRV systems FXAA25A
DAK FXAA25A
4548848878406
Daikin FXAA25A 2.8 kW wall-mounted indoor unit for VRV systems, with elegant design and flat panel. Easy to install and maintain, provides comfort and optimal air distribution.
-
Cooling capacity 2.8 kW and heating capacity 3.2 kW
-
Flat and modern design, easy to clean
-
5 adjustable air delivery angles
-
Easy installation in new construction or renovation
-
Easy front maintenance
-
Compatible with R32 refrigerant
-
Optional, not included: BRC7EA630 infrared remote control (with BRC1H52W/S/K).
The air conditioner will be delivered pre-charged with gas R32
€843.27
Items Available: 2
: 1
Frequently bought together
Daikin wall-mounted indoor unit VRV systems: : efficiency, elegance and comfort
The Daikin FXAA25A wall-mounted indoor unit is the ideal solution for VRV systems, offering high performance and refined aesthetics. With an output of 2.8 kW in cooling and 3.2 kW in heating, it provides optimal comfort in every season, maintaining the desired temperature evenly and efficiently.
The flat and compact design integrates easily into any environment, making it perfect for both residential and commercial spaces. The clean and modern line of the front panel not only lends elegance, but also simplifies daily cleaning operations.
Flexible installation for every project
Designed for easy installation, the Daikin FXAA25A unit is suitable for both new construction and renovation projects. Its compact design and light weight allow for quick and safe installation, optimizing installation time and reducing operation costs.
In addition, the unit is optimized for use with R32 refrigerant, providing greater energy efficiency and lower environmental impact than conventional gases.
Tailored comfort and air control
The air diffusion system is designed to provide maximum comfort. With five different adjustable supply angles, air can be directed up or down, allowing even temperature distribution in every area of the room.
This flexibility allows direct drafts to be avoided, resulting in a pleasant and balanced environment.
Simplified maintenance and intuitive control
Front-side maintenance facilitates any cleaning or service work, minimizing downtime.
The system is compatible with the BRC7EA630 infrared remote control (optional), which can be combined with the BRC1H52W/S/K wired remote control, offering precise and intuitive control of all operating functions.
Technical Features.
| Parameter | Value |
|---|---|
| Cooling capacity (high fan speed) | 2.8 kW |
| Heating capacity (high fan speed) | 3.2 kW |
| Cooling power input (high fan speed) | 0.03 kW |
| Heating input power (high fan speed) | 0.03 kW |
| Ventilation | |
| Air flow rate (cooling - low/medium speed) | 6.5 / 8.3 m³/min |
| Air flow rate (heating - low/medium speed) | 6.5 / 9.0 m³/min |
| Air filter | Washable resin mesh |
| Sound levels | |
| Sound power (cooling - high speed) | 53 dB(A) |
| Sound pressure (cooling - low/medium speed) | 28.5 / 35 dB(A) |
| Sound pressure (heating - low/medium speed) | 28.5 / 36 dB(A) |
| Refrigerant and connections | |
| Refrigerant type / GWP | R-32 / 675 |
| Liquid piping connection | 1/4 inch |
| Gas pipeline connection | 3/8 inch |
| Condensate pipe | VP13 (D.I. 15 / D.E. 18) |
| Power supply | |
| Phase / Frequency / Voltage | 1~ / 50 Hz / 220-240 V |
| Maximum fuse rating (MFA) | 6 A |
| Dimensions and weight | |
| Dimensions (H × W × D) | 290 × 795 × 266 mm |
| Weight | 12 kg |
There are no reviews
Data sheet
- Type: Fan-Coils
- Power: 2,8/3,2KW
- Installation: Wall-mounted
- Connection: Single-phase
