Innova Farna Big Fancoil 2.80 - 3.06 kW FARNABSC1II

Innova
Innova
NNV FARNABSC1II

Innova FÄRNA Big high-performance 2-pipe fancoil with flexible installation and modern design, ideal for residential and commercial environments with space constraints.

  • Cooling power: 2.80 kW

  • Heating power: 3.06 kW

  • Free installation: top, bottom, wall, center of room

  • Elegant and sturdy design: all-metal structure

  • Color: white RAL 9003

  • Reduced footprint: width reduced by 32% compared to similar models

  • Compatible with: M7 control EWA044II and 3-way valve V30722II (optional accessories).

Do you have questions about this product or did you not find what you were looking for? Ask us!
Innova Farna Big Fancoil 2.80 - 3.06 kW FARNABSC1II
€534.84
€534.84

€534.84
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€534.84

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Innova FÄRNA Big fancoil: High performance in a small space

The Innova FÄRNA Big fancoil is an innovative solution for those seeking maximum thermal efficiency in small spaces. Despite its compact size, it offers high power in both cooling and heating, making it suitable for medium to large rooms. The streamlined and optimized design allows space savings of up to 32 percent compared to conventional fancoils of the same power rating.

Installation without limits

FÄRNA knows no installation limits. It can be mounted on walls, ceilings, low or high, adapting to any architectural requirement. This versatility makes it ideal for:

  • Apartments with structural constraints

  • Modern and open-plan offices

  • Commercial environments or stores

  • Hospitality facilities and restaurants

Distinctive design and quality materials

Designed to be not only efficient but also beautiful to look at, the FÄRNA Big fancoil is distinguished by an original and modern design. The all-metal construction ensures robustness, longevity and a professional aesthetic that can be perfectly integrated into contemporary design contexts.

Compatible accessories (can be purchased separately)

  • M7 SERIES on-board control Code: EWA044II intuitive management, touch-screen and integrated Wi-Fi for complete control

  • 3-way valve assembly with thermoelectric motor Code: V30722II Automatic hydraulic by-pass, ideal for simplified installations.

Strengths of the Innova Farna Big

  • Compact, yet extremely powerful

  • Unprecedented installation versatility

  • Thoughtful design for premium environments

  • Compatibility with smart accessories and modulating system

  • Dimensions: Reduce space, significantly, leaving all the power needed for a large room. Compared to classic AirLeaf models of similar power, FÄRNA reduces the size (width) of the machine by 32% - one third! Not a small machine, but a powerhouse.

  • Power: Increase the power, significantly, while leaving the size unchanged. Compared to classic AirLeaf models of similar size, FÄRNA increases power by a factor of three

  • Design: Elegant, different, unconventional design is specifically designed for a multifunctional product like FÄRNA. If the size hides the product, the design makes it prominent and valuable. A solution made entirely of metal.

Technical specifications of the Farna BIG

Performance in Cooling (W 7/12 °C; H 27 °C)

Total output in cooling 2.80 kW
Sensible output in cooling 2.32 kW
Water flow rate 473 L/h
Water pressure drop 17 kPa
Maximum power consumption 25 W
Maximum sound power 51 dB(A)


Heating Performance (W 45/40 °C; H 20 °C)

Heating output 3.06 kW
Water flow rate 510 L/h
Pressure drop 16 kPa
Maximum power consumption 25 W
Maximum sound power 51 dB(A)


Hydraulic Data

Maximum operating pressure 10 bar
Hydraulic connections " EK 3/4


Electrical Data

Power supply 230/1/50 V/ph/Hz
Maximum current consumption 0,10 A
Power consumption at minimum speed 3,6 W


Aeraulic Data

Booster air flow rate 473 m³/h
Maximum air flow rate 422 m³/h
Average air flow rate 306 m³/h
Minimum air flow rate 151 m³/h
Superminimum air flow rate 78 m³/h


Sound Data

Sound pressure at maximum air flow rate 41 dB(A)
Sound pressure at medium air flow rate 33 dB(A)
Sound pressure at minimum air flow rate 24 dB(A)

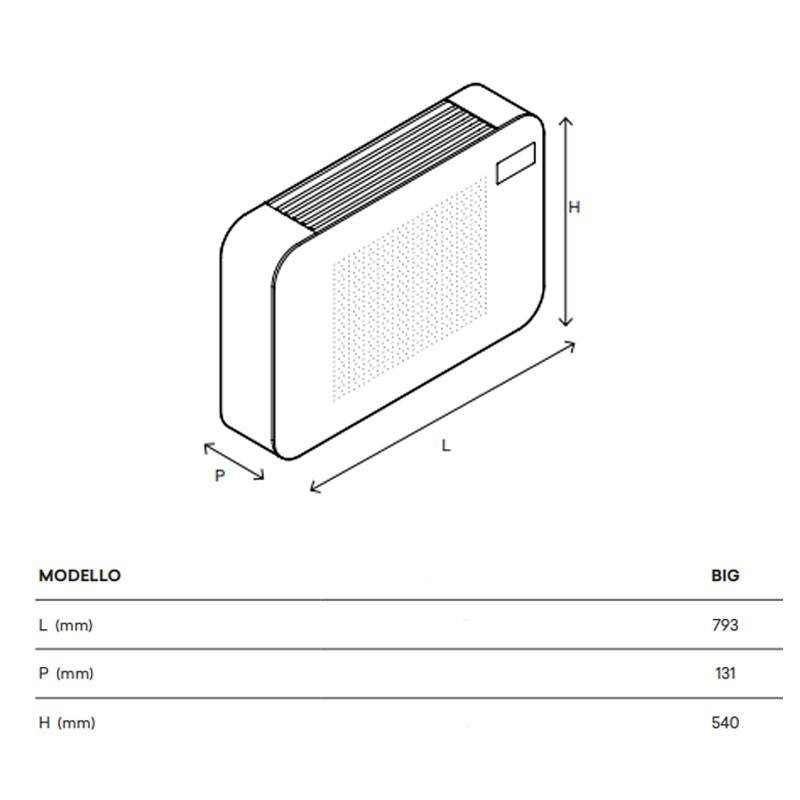

Dimensions and Weights Product

Width 793 mm
Height 540 mm
Total depth 131 mm
Net weight 17.3 kg

There are no reviews

Data sheet

Type:
Fan-Coils
Power:
2,80/3,06KW
Installation:
Wall-mounted
Connection:
Single-phase
Series:
Farma Big
