Innova Osmo SL 800 Fancoil 3.30-3.81 kW FAOL08SC1II
NNV FAOL08SC1II

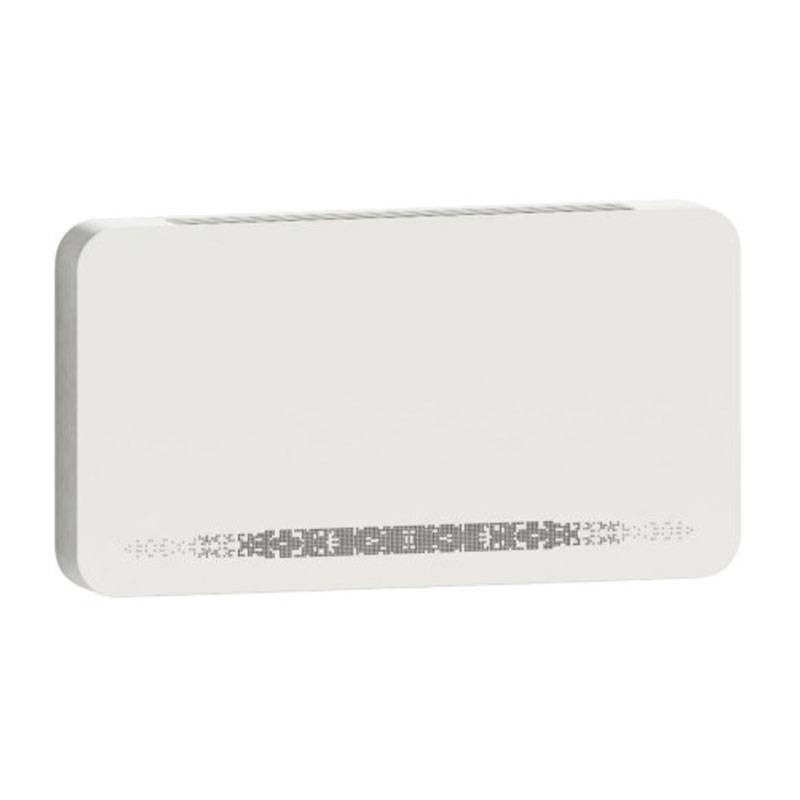

Fancoil Innova Osmo SL 800 fan coil unit only 119 mm thin, elegant and quiet, with front radiant effect and DC Inverter technology. Ideal for low-consumption heating and cooling.
-
Heating power: 3.81 kW
-
Cooling power: 3.30 kW
-
Installation: vertical wall-mounted
-
Ultra slim depth: only 119 mm
-
Left-hand hydraulic connections: 3/4 inch EK
-
System: 2 pipes
-
Color: White RAL 9003
-
Technology: DC Inverter for energy saving
-
Effect: front radiant for more comfort
-
Operation: quiet and minimal design
€559.72
Items Available: 18
: 9
Frequently bought together
Innova Osmo SL fancoil: Maximum comfort in a minimum thickness
The Innova Osmo SL 800 fancoil represents the perfect synthesis of aesthetics, efficiency and functionality. Thanks to its depth of just 119 mm, it integrates perfectly into any environment, whether domestic or professional, reducing wall space and improving living comfort.
DC Inverter technology and quiet operation

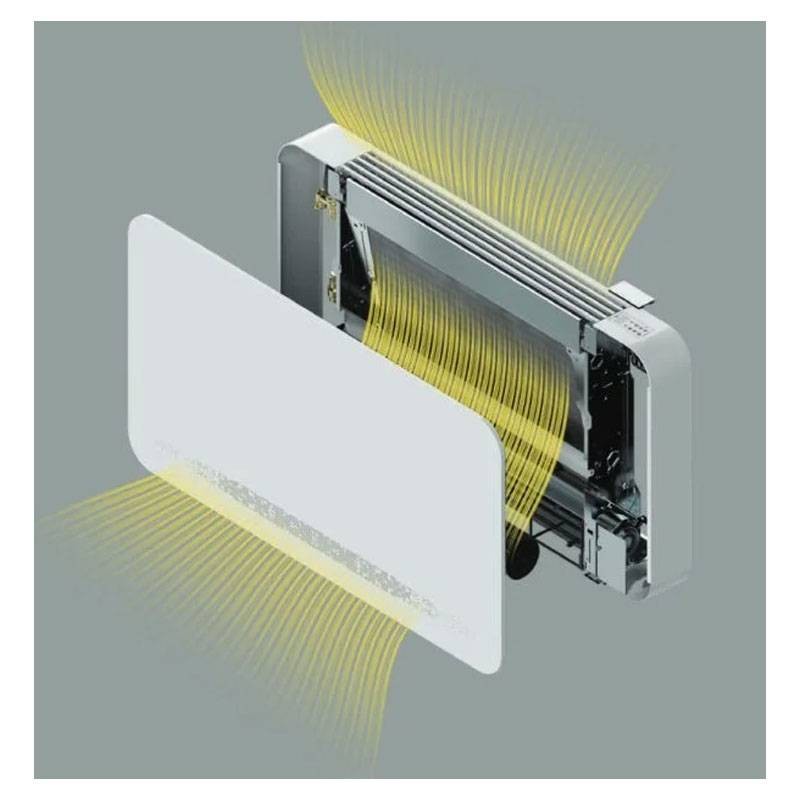

DC Inverter technology optimizes ventilation operation, providing maximum comfort with minimal energy consumption. The fancoil also features silent operation, ideal for bedrooms, hotels and offices, and has a heated front panel that generates radiant effect, making it effective even when the fan is off.
Elegance and versatility

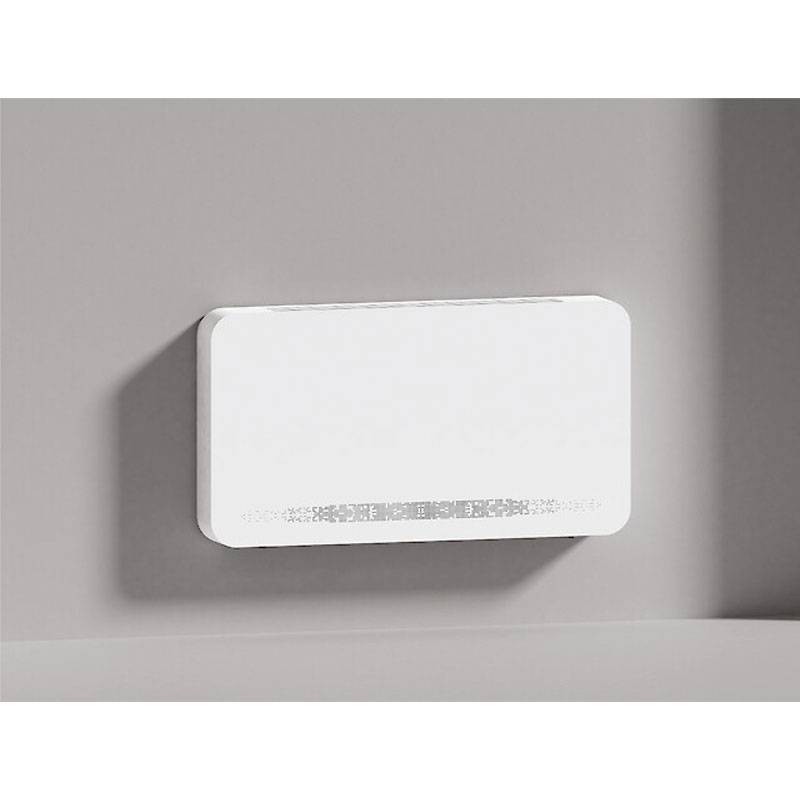

With modern lines and a sleek design in RAL 9003 white, Osmo SL 800 fits into any decor. It can be installed on the wall or ceiling, making it a versatile solution for any plant requirements.
Controls and accessories (optional)
The fancoil is prepared to be completed with:
-

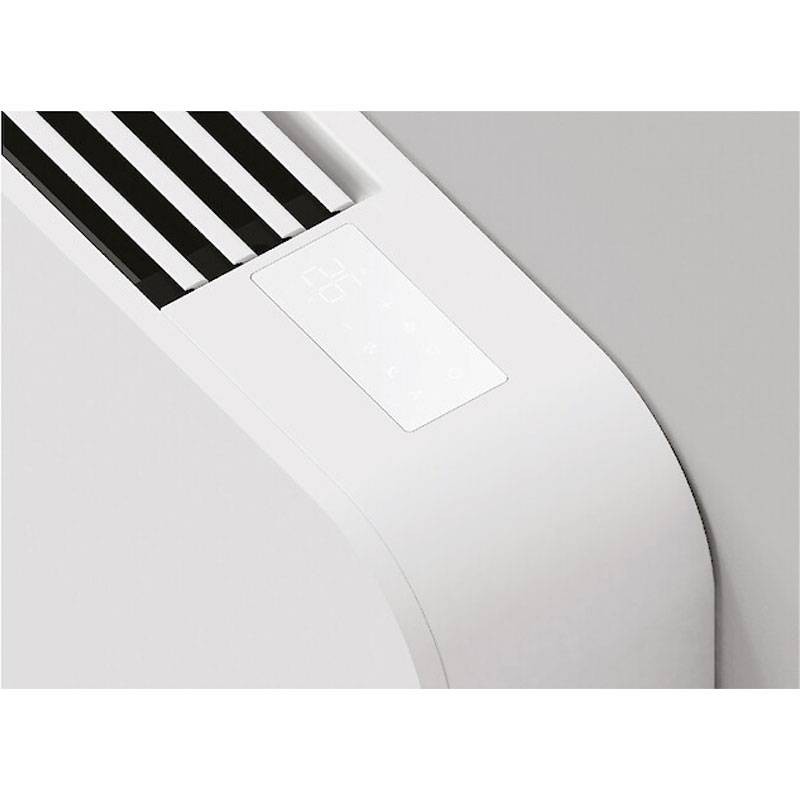

EFB749II electronic control panel (optional): Wall-mounted installation, LED interface with touch controls, thermostat, temperature and humidity probe and built-in Wi-Fi. Dimensions: 117×80×5 mm
-
V30720II 3-way diverter valve unit (optional): Complete with thermoelectric motor, inlet valve and lockshield, optimizes hydraulic flow management
-
M7 on-board electronic control with continuous modulation thermostat, with integrated Wi-Fi module code EWA844II
Technical Data
Performance in Cooling (W 7/12 °C; H 27 °C)
| Total output in cooling (kW) | 3,30 |
|---|---|
| Sensible output in cooling (kW) | 2,65 |
| Water flow rate (L/h) | 568 |
| Pressure drop (kPa) | 18,00 |
| Maximum power consumption (W) | 29 |
| Maximum sound power dB(A) | 55 |
Heating Performance (W 45/40 °C; A 20 °C)
| Heating output (kW) | 3,81 |
|---|---|
| Water flow rate (L/h) | 655 |
| Pressure drop (kPa) | 21,20 |
| Maximum power consumption (W) | 29 |
| Maximum sound power dB(A) | 55 |
Hydraulic Data
| Battery water content (L) | 1,46 |
|---|---|
| Maximum operating pressure (bar) | 10 |
| Hydraulic connections | 3/4" EK |
Aeraulic Data
| Maximum air flow rate (m³/h) | 567 |
|---|---|
| Average air flow rate (m³/h) | 410 |
| Minimum air flow rate (m³/h) | 247 |
| Maximum available static pressure (Pa) | 13 |
Electrical Data
| Electrical power supply (V/ph/Hz) | 230 / 1 / 50 |
|---|---|
| Maximum absorbed current (A) | 0,26 |
| Power consumption at minimum speed (W) | 5,0 |
Sound Data
| Sound pressure at maximum air flow (dB(A)) | 46 |
|---|---|
| Sound pressure at medium air flow rate (dB(A)) | 35 |
| Sound pressure at minimum air flow rate (dB(A)) | 26 |

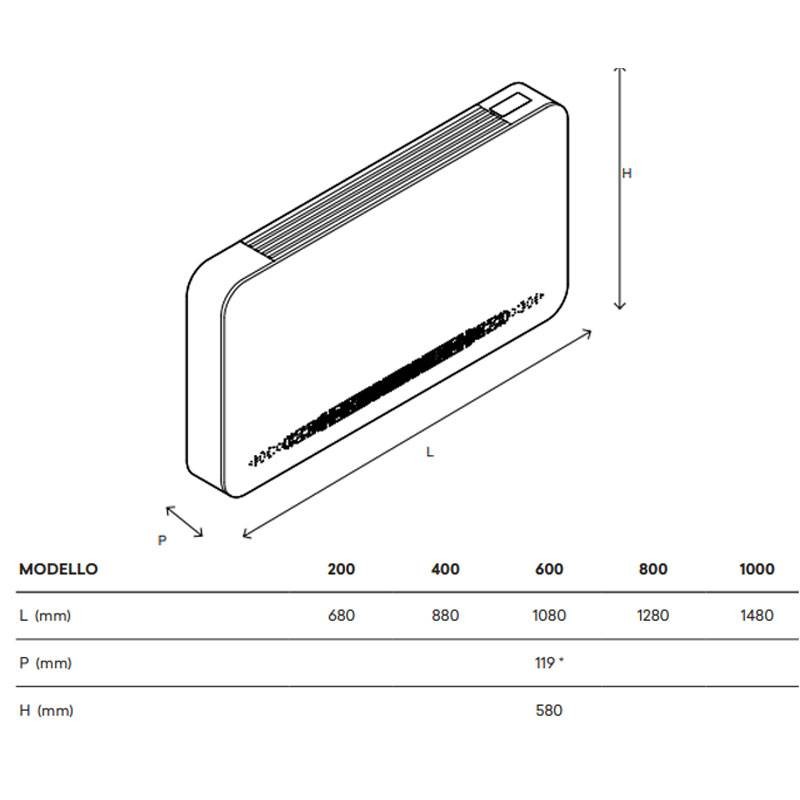

Dimensions and Weights Product
| Width (mm) | 1280 |
|---|---|
| Height (mm) | 580 |
| Total depth (mm) | 119 |
| Net weight (kg) | 20,0 |
There are no reviews
Data sheet
- Type: Fan-Coils
- Power: 3,81/3,30KW
- Installation: Wall-mounted
- Connection: Single-phase
- Series: Osmo SL
