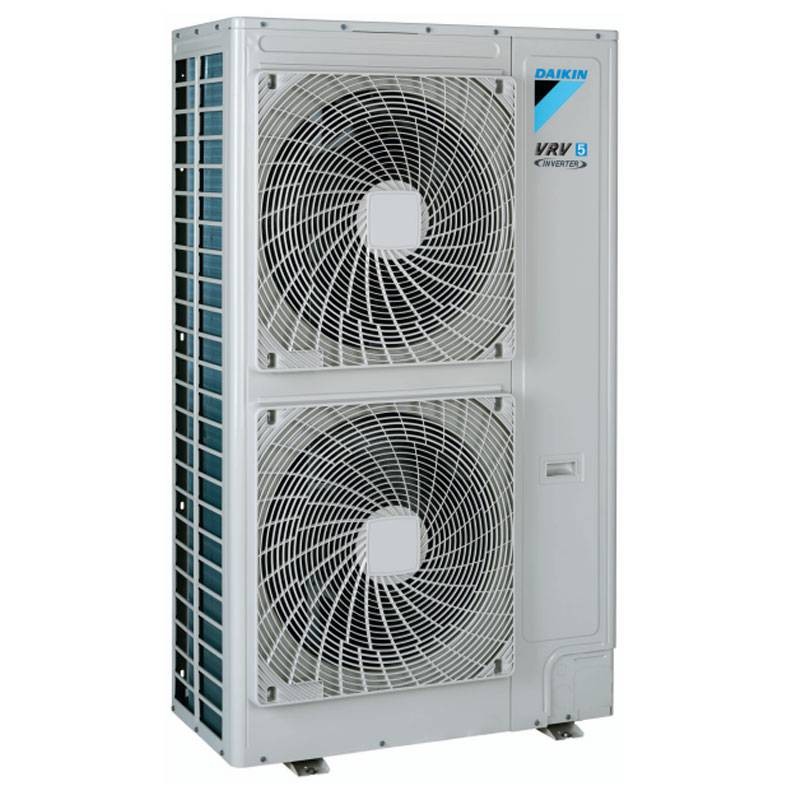

Daikin Heat Pump Mini S Series VRV 15 KW R32 RXYSA8A
DAK RXYSA8A
4573535294016
Daikin Mini VRV RXYSA8A 15 kW heat pump with low GWP R32 refrigerant 380-415/400V three-phase power supply. High seasonal efficiency, compact design and Shîrudo technology for safe and sustainable installations.
-
Power rating: 15 kW
-
Environmentally friendly R32 refrigerant with low GWP
-
Industry-leading seasonal efficiency
-
Compact and lightweight design for easy transport
-
Easy maintenance with display and front access
-
Shîrudo technology for installation in small rooms
-
Low sound level and high performance.
The air conditioner will be delivered pre-charged with gas R32
€6,250.31
Items Available: 1
Frequently bought together
Daikin Mini VRV RXYSA8A heat pump: sustainability and efficiency at the highest level
The 15 kW Daikin Mini VRV RXYSA8A is an innovative solution for climate comfort in residential, commercial and professional applications. Using R32 refrigerant, this heat pump significantly reduces CO2 equivalent emissions, ensuring minimal environmental impact and superior energy efficiency.
Thanks to the optimization of the refrigeration circuit and the use of state-of-the-art components, the Mini VRV series offers real seasonal performance that is among the highest in the industry, helping to reduce operating costs and improving the sustainability of the entire system.
Compact design and easy transportation
One of the strengths of the Daikin RXYSA8A is its compact and lightweight design, making it easy to transport, install, and maintain even in tight spaces. The optimized design enables installation in small rooms without the need for additional safety measures, thanks to Shîrudo technology, which ensures safe operation even in low-ventilation environments.
Simplified maintenance and easy access
The RXYSA8A Mini VRV heat pump RXYSA8A is designed to minimize technical intervention time. The large accessible surface area and built-in 7-segment display enable quick and accurate diagnostics, while the additional handle makes it easy to move during maintenance or installation.
Comfort and quiet operation
Indoor units designed to run on R32 ensure low sound levels and optimized airflow for maximum comfort. The Mini VRV series' high energy efficiency allows it to maintain consistent performance in both heating and cooling modes, fitting perfectly with the needs of multifunctional buildings and commercial spaces.
Specifications
| Parameter | Value |
|---|---|
| Capacity range | 8 HP |
| Cooling capacity (Prated,c) | 22.4 kW |
| Heating capacity (Prated,h / Max) | 22.4 / 25.0 kW |
| SEER | 6,4 |
| SCOP | 4,4 |
| Seasonal cooling efficiency (ηs,c) | 251,4% |
| Seasonal efficiency in heating (ηs,h) | 173,8% |
| Dimensions and weight | |

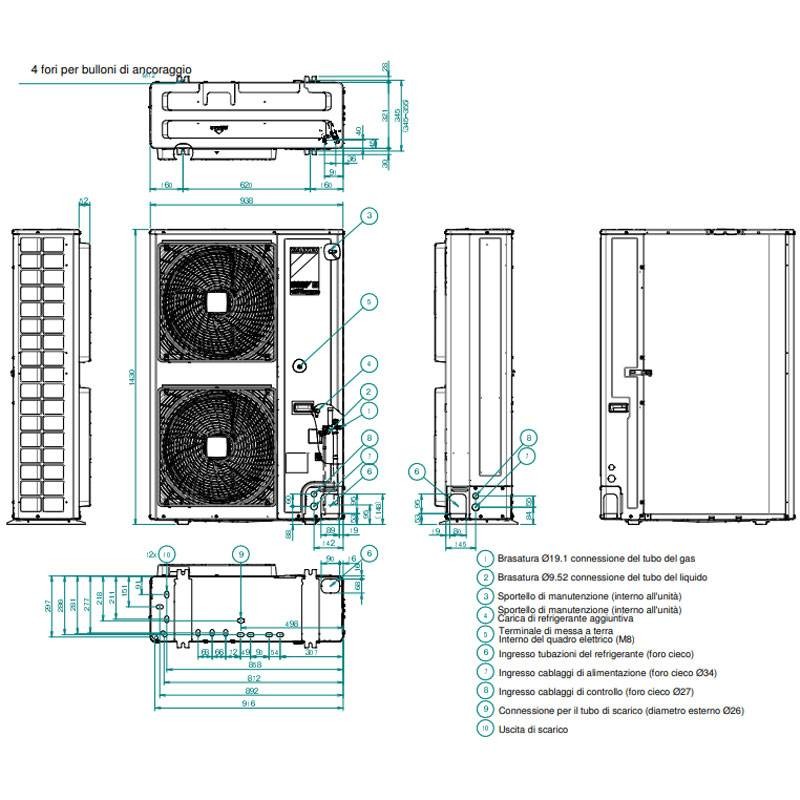

| Dimensions (H × W × D) | 1,430 × 940 × 320 mm |
| Weight | 144 kg |
| Sound Levels | |
| Sound power level (cooling/heating) | 73.2 / 73.5 dB(A) |
| Sound pressure (cooling) | 58.1 dB(A) |
| Operating range | |
| Cooling (Min °C) | -5 ~ 52 °C BS |
| Heating (Max °C) | -20 ~ 15.5 °C BU |
| Refrigerant | |
| Type / GWP | R-32 / 675 |
| Charge / tCO-eq | 3.51 kg / 5.2 tCO-eq |
| Piping connections | |
| Liquid piping | 9.5 mm |
| Gas piping | 19.1 mm |
| Total effective system length | 300 meters |
| Power supply | |
| Phase / Frequency / Voltage | 3N~ / 50 Hz / 380-415 V |
| Maximum fuse rating (MFA) | 25 A |
There are no reviews
Data sheet
- Type: Monoblock units
- Gas: R32
- Thermal power: 15 KW
- Series: Serie S
