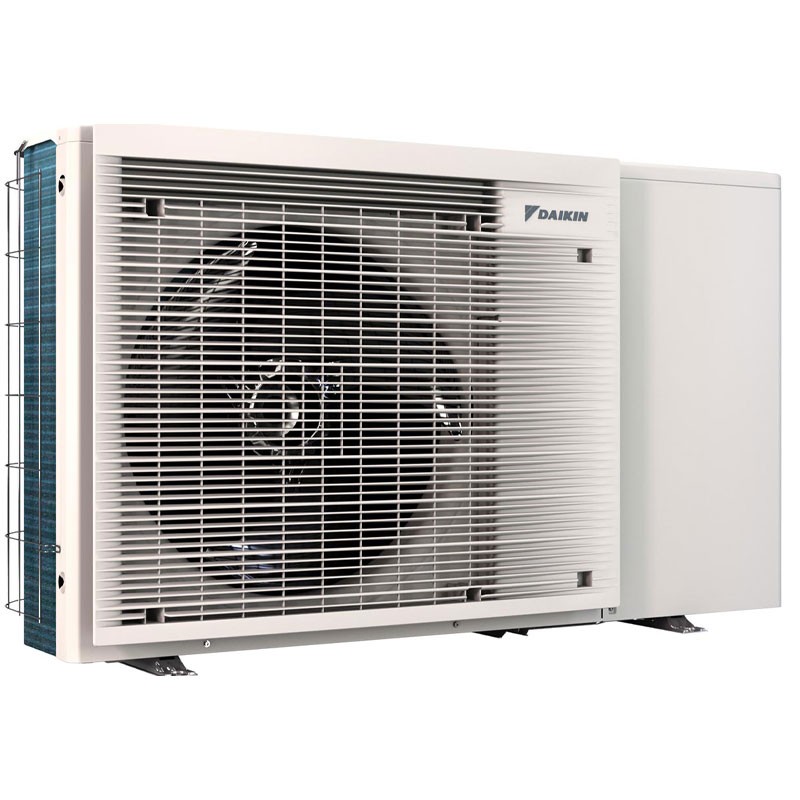

Product overview:




Newly designed paneling:

• White front grille with horizontal lines hides the fan from view, reducing the perception of noise produced by the unit
• Uniform, light gray-colored paneling gently reflects the environment in which the unit is installed, allowing it to blend seamlessly into any setting



A new fan shape:

• The fan shape has been redesigned to reduce the surface area in contact with air and improve its circulation



Easier installation and commissioning:

• The rotary control unit is a first for this packaged heat pump
• Helps installers easily access the unit's plumbing and refrigeration components
• Maintenance and commissioning can then be carried out with ease



Monoblock R32 gas:

• Daikin is a pioneer in launching heat pumps with R32. With the same potential compared to standard refrigerants, R32 offers a low global warming potential (GWP) and ensures higher energy efficiency and lower CO2 emissions. Easy to recover and reuse, R32 refrigerant is the perfect solution to meet the European Union's new CO2 emission targets



A simple solution where space is limited:

• Thanks to the monoblock configuration, no indoor unit is required: it is ideal if space inside is limited. You can even fit the monoblock unit under a window! All hydraulic components are integrated into one unit, including the refrigerant circuit.



Domestic hot water production:

• The monoblock unit can be combined with stainless steel tanks (EKHWS) and Sanicube and HybridCube technical storage tanks for instantaneous domestic hot water production



Product advantages:

• Space heating up to A+++
• Domestic hot water up to A+
• Operation down to -25°C
• LWT of 60°C at -5°C without a backup heater
• Suitable for small new buildings or for replacement of existing systems
• Reversible models for heating and cooling
• Model without backup heater
• Combination with stainless steel domestic hot water tank (EKHWS)
• Sanicube and HybridCube technical storage tanks for instantaneous domestic hot water production with support options for solar energy
• Combination with underfloor heating applications
• Combination with Daikin Altherma HPC heat pump convectors.



Features:

• Heating capacity Nom 7.80kW
• Power input Heating capacity Nom 2.23kW
• COP 3.50
• Cooling Capacity Nom. 5.44kW
• Power input Cooling Nom. 1.73kW
• Ivory white galvanized mild steel paneling
• Unit Dimensions Height x Width x Depth 770 x 1,250 x 362mm
• Weight 91kg
• Swing type hermetic compressor
• R32 Gas
• GWP 675
• Charge 1.35 Kg
• Charge 0.91 TCO2Eq
• Control Expansion valve
• Sound power level Heating Nom. 62 dBA
• Power Supply Name/Phase/Frequency/Voltage V1/50/230V
• Current Recommended fuses 25A



Space heating Water output with average climatic conditions 55°C:

• General(seasonal efficiency for space heating) 131
• SCOP 3.35
• Room heating seasonal eff. class A++



Space heating Water outlet with average climatic conditions 35°C:

• General(seasonal efficiency for space heating) 181
• SCOP 4.61
• Room heating seasonal eff. class A+++



Operating range Heating:

• Min/Max outdoor temperature -25 ~ 35
• Water side Min.~Max : 9 ~ 65



Operating range Cooling:

• Min/Max outdoor temperature 10 ~ 43
• Water side Min.~Max 5 ~ 22



Operating range Domestic hot water:

• Outdoor temperature Min/Max -27 ~ 35
• Water side Min.~Max. 25 ~ 55



Connections:

• 1M water inlet connection
• 1M connection of water outlet
