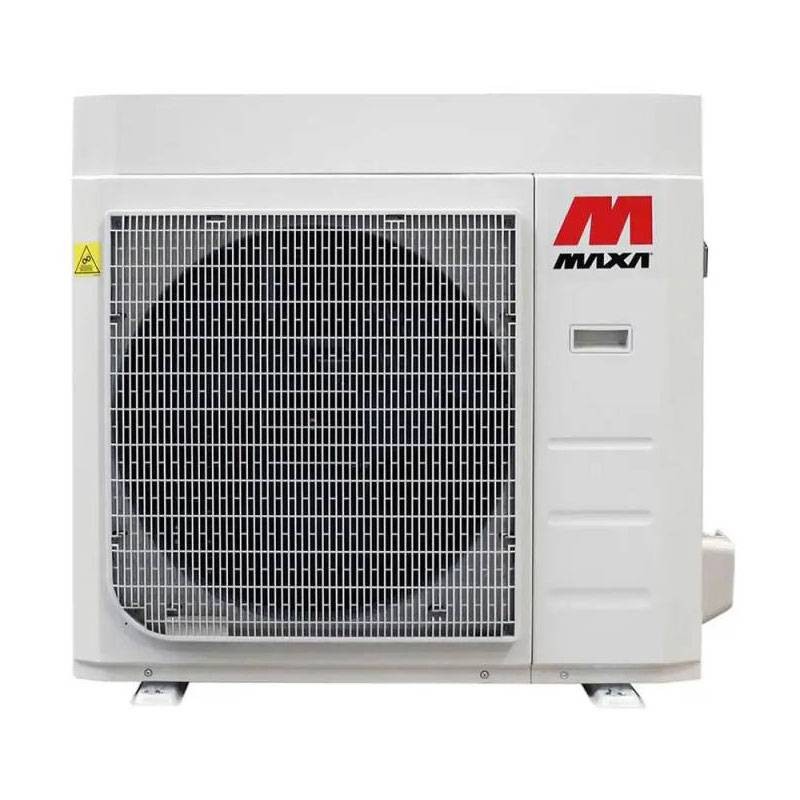

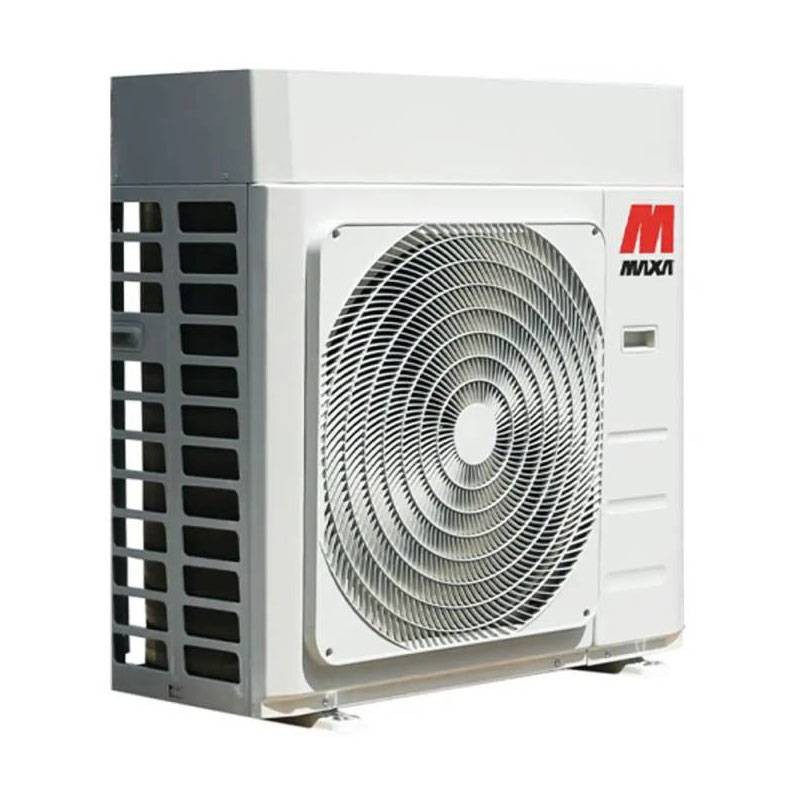

Maxa I-32V510 monoblock inverter heat pump 7.5/9.5kW R32
TIX 000313
Maxa i32V510 inverter monoblock heat pump, cooling 7.59.5kW, heating 9.810.1kW, energy class A+++/A++, Gas R32, with 230V power supply and advanced control for comfort and energy saving.
-
Cooling from 7.5kW (12/7°C) to 9.5kW (23/18°C)
-
Heating from 9.76kW (40/45°C) to 10.1W (30/35°C)
-
Energy class A+++ for water at 35°C, A++ for water at 65°C
-
Single-phase 230V/50Hz power supply
-
Inverter with Twin Rotary DC compressors and brushless DC fans
-
Optimized heat exchangers with hydrophilic fins and AISI304 stainless steel plates
-
Integrated refrigeration circuits (4-way electronic valve, pressure switches, separator, ModBus)
-
Complete hydraulic circuit with brushless circulator, valves, flow switch, pressures and pressure gauge.
For wall-mounted remote control, purchase Maxa E-Lite code 011049#0101 separately.
The air conditioner will be delivered pre-charged with gas R32
€3,104.90
Items Available: 3
: 2
Maxa i32V510 heat pump: Inverter technology with high thermal performance
The i32V510 version guarantees maximum performance in every season: it cools up to 9.5kW and heats up to 10.1kW, with excellent efficiencies confirmed by A++/A++ ratings
Twin Rotary DC inverter together with electronic expansion valve allow precise and adaptive control, optimizing consumption and comfort. Compressors on anti-vibration mounts and variable-speed fans reduce noise and consumption.
The i-32V5 reverse cycle heat pumps are designed for residential and commercial applications, extremely versatile and prepared for: the production of hot water for winter heating, domestic hot water heating at 58°C (up to 63° with the aid of electric resistance), and chilled water for summer cooling. The new i-32V5 system is the ideal solution in combination with radiant floor/ fan coil systems, with electrical supply from the grid and/or renewable sources.
Key strengths and features
-
Cooling (12/7°C) 7.5kW
-
Cooling (23/18°C) 9.5kW
-
Heating (30/35°C) 10.1kW
-
Heating (40/45°C) 9.76kW
-
Energy class A+++ (35°C), A++ (65°C)
-
Power supply 230V / 1phase / 50Hz
-
Twin Rotary DC inverter compressors
-
Axial brushless DC fans
-
Air exchanger Copper + aluminum + GOLD FIN hydrophilic fins
-
Water exchanger AISI304 stainless steel plates
-
Refrigeration control 4-way electronic válvula, pressure switches, ModBus
-
Hydraulic circuit EEI0.23 brushless circulator, 6bar overhang, etc.
-
Dimensions (W×D×H) 1047×455×936mm
-
Certifications EUROVENT, CE
Rugged construction
Weather-resistant, hydrophilic, pre-painted sheet metal outdoor unit. GOLD FIN treated copper/aluminum exchangers ensure long life even in corrosive environments.
Integrated hydraulic system
Equipped with EEI0.23 circulator, expansion tank, relief valve, 6bar overpressure, pressure gauge and charging/discharging taps. All ready for installation on existing systems.
Winter Heating
The i-32V5 series provides comfortable winter heating by combining high energy efficiency with extreme ease of operation.
Summer Cooling
MAXA units in the i-32V5 series provide chilled water production suitable for summer air conditioning services in an efficient and environmentally friendly manner.
Domestic Hot Water
Domestic hot water production, traditionally entrusted to combustion systems, can be provided by the i-32V5 series heat pumps in an environmentally friendly manner.
Energy Efficiency
The i-32V5 range makes extensive use of brushless DC motor technology, which is applied on compressors, circulation pumps and fans. In addition, inverter technology is also used for the compressors, which ensures very high energy efficiency and high modulation capacity of the power output.
Technical specifications of the Maxa i-32V5 10 heat pump
Cooling
| Feature | Detail |
|---|---|
| Cooling capacity | 7.5/9.5 kW |
| Power consumption | 2.4/2.2 kW |
| EER | 3,2/4,4 |
| Water flow rate | 0.4 L/s |
| Useful head | 69 kPa |
Heating
| Feature | Detail |
|---|---|
| Heating capacity | 10.1/9.76 kW |
| Power consumption | 2.3/2.8 kW |
| COP | 4,4/3,5 |
| SCOP | 4,5 |
| Water flow rate | 0.5 L/s |
| Useful head | 53 kPa |
Compressor
| Feature | Detail |
|---|---|
| Type | Twin Rotary DC Inverter |
| Number of compressors | 1 |
| Number of refrigerant circuits | 1 |
| Refrigerant quantity | 2.5 Kg |
Hydraulic circuit
| Feature | Detail |
|---|---|
| Hydraulic connections | 1 "M |
| Minimum water volume | 50 L |
Sound level
| Feature | Detail |
|---|---|
| Minimum water volume | 63 dB(A) |
| Sound pressure at 1 meter | 48 dB(A) |
Electrical data
| Feature | Detail |
|---|---|
| Power supply | 230V/1/50Hz |
| Maximum power consumption | 4.6 kW |
| Maximum absorbed current | 20,2 A |
| Operating weight | 96 Kg |
There are no reviews
Data sheet
- Type: Monoblock units
- Gas: R32
- Thermal power: 9,5Kw
- Energy class: A+++
