Product overview:

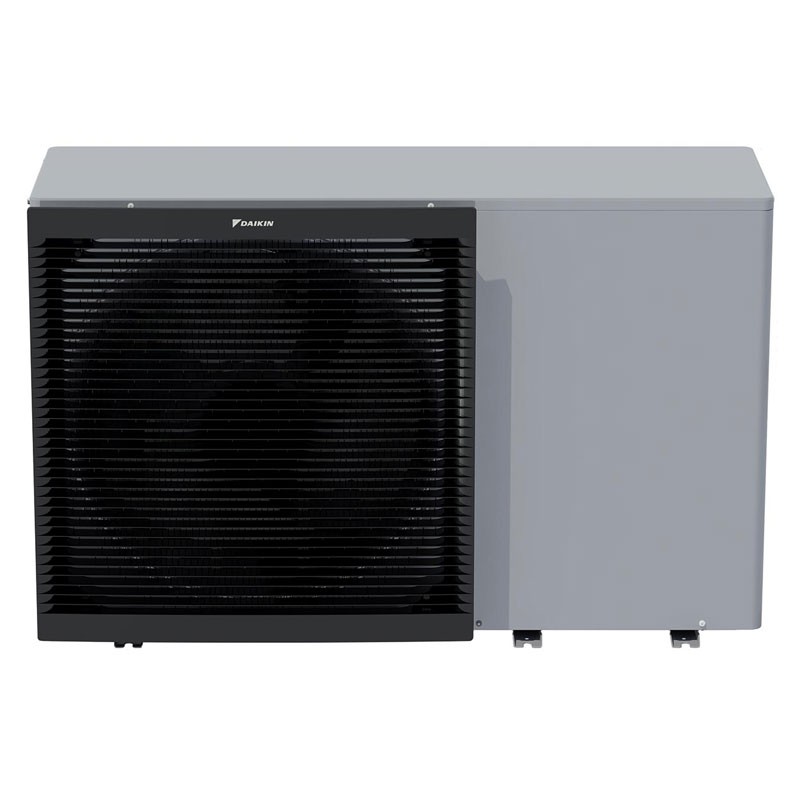

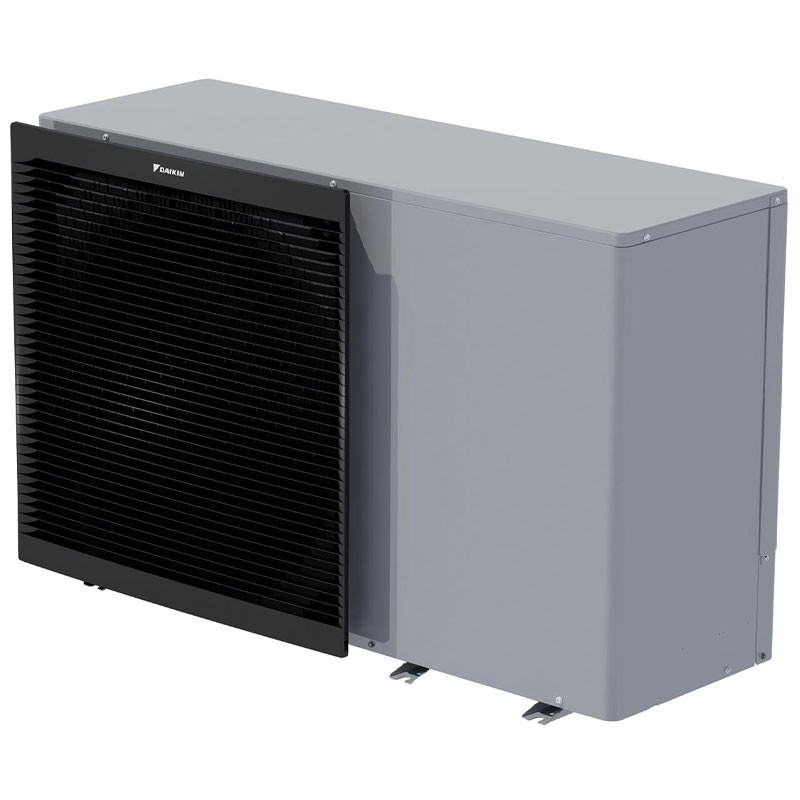

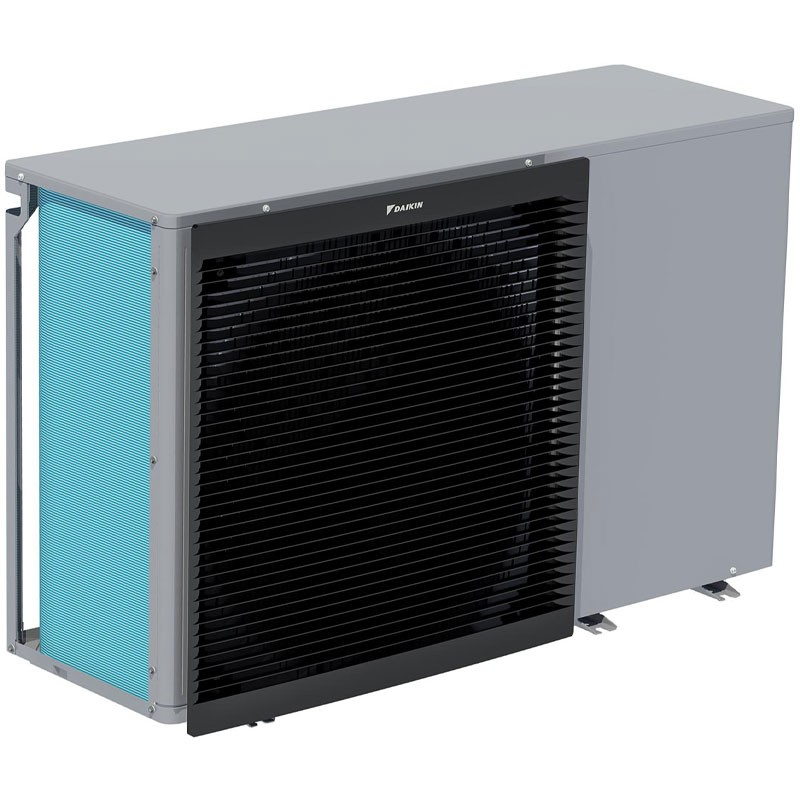

Improved compact design:

• A black horizontal front grille conceals the single fan, reducing the perception of the sound level produced by the unit
• Light gray paneling reflects the space in which the unit is installed, allowing it to blend seamlessly into any environment
• Daikin engineers replaced the double fan with a larger one, optimizing its shape to reduce noise and improve air circulation



Monoblock unit operating with R-32 refrigerant:

• Daikin is pioneering the launch of heat pumps with R-32. With the same potential compared to standard refrigerants, R-32 offers low global warming potential (GWP) and ensures higher energy efficiency and lower CO2 emissions. Easy to recover and reuse, R-32 refrigerant is the perfect solution to meet the European Union's new CO2 emission targets.



Ideal for small spaces:

• The packaged unit is the ideal solution for those locations with space limitations. No need for an additional indoor unit: the monoblock system can be installed in the space under a window to save space outside.



Flexibility in domestic hot water production:

• Combinable with the stainless steel domestic hot water tank (EKHWS(U)-D or the ECH2O thermoaccumulator to obtain solar-supported domestic hot water.



Perfect match with any heating system:

• Possible combination with underfloor heating applications or Daikin Altherma HPC heat pump convectors.



Features:

• Nominal Heating Capacity 16.0kW
• Heating Power Consumption Nominal 4.56kW
• COP 3.51
• Cooling Capacity Nominal 15.3kW
• Cooling Absorbed Power Nominal 3.24kW
• EER 4.74
• SEER 5.59
• Paneling Color Silver
• Material Galvanized steel sheet painted with polyester powder
• Unit Dimensions Heightx Width x Depth mm 870 x 1,380 x 460
• 1 compressor
• Weight 149 kg
• Swing-type hermetic compressor



Ambient heating at 55 °C:

• Water output at average weather conditions 55 °C ?s (seasonal efficiency for space heating) 132
• SCOP 3.37
• Energy class A++



Room heating at 35 °C:

• Seasonal efficiency for space heating 185
• SCOP 4.69
• Energy class A+++



Refrigerant:

• R32 type
• GWP 675.0
• Charge kg 3.80
• Charge TCO2Eq 2.57
• Expansion valve control



General:

• Sound power level Heating Nom. dBA 62
• Power Supply Name/Phase/Frequency/Voltage Hz/V 50/400
• Current Recommended Fuses A 16




Operating range Heating:

• Outdoor temperature Min/Max -25 ~ 35
• Water side Min/Max 15 ~ 60



Operating range Cooling:

• Outdoor temperature Min/Max 10 ~ 43
• Water side Min/Max 5 ~ 22



Operating range Domestic hot water:

• Outdoor temperature Min/Max -25 ~ 35
• Water side Min/Max 25 ~ 55
