The term fan coil units refers to the terminals used for home or office air conditioning, with the function of both heating and cooling. Thus, fan coils are a viable alternative to traditional radiators, radiators and electric radiant panels to ensure the right thermal comfort in all rooms of one's home or office. The latest models are all of the latest generation, low energy consumption and perfectly combinable with an external heat pump or, if the installation of the latter is not possible, also monoblock, easy to install and with a really low noise level.



Inside the innovatively designed casing that makes up the 'outside of the fan coil unit are one or more coils that allow heat exchange between the water from the heating system and the air emitted by the terminal, an air filter, a fan and a tray to collect the condensation that forms on the coils during the heat exchange process:



• The fan draws in the air in the room and pushes it first to the filter to purify it and then to the coils for heat exchange;
• The air absorbs or gives up heat to the water in the heating system pipes, depending on whether the room is to be heated or cooled;
• Once heated or cooled, the air is distributed to the room.

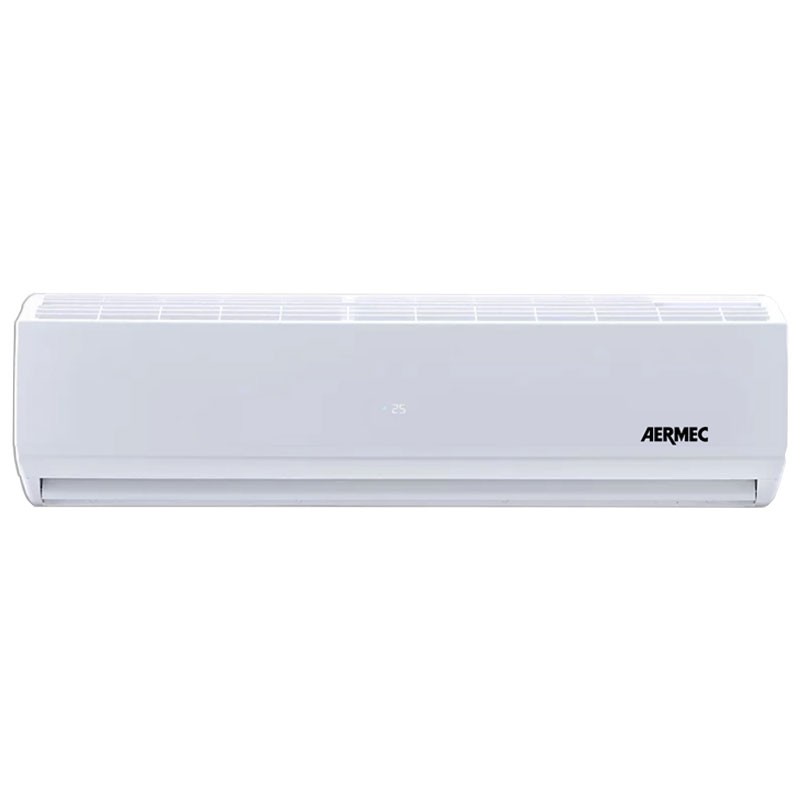

FCW is the fan coil for wall-mounted installation, the small footprint of this model and its elegance ensure a pleasant visual impact and make this terminal ideal in residential or small tertiary applications. To meet various system requirements, the product is configurable, and is available with or without an internal valve (2 or 3-way), with or without a control board.



Advantages:

• Cooling and heating
• Compatible with VMF (Variable Multi Flow) system (optional)
• Consists of a tangential fan, particularly quiet and directly coupled to the motor shaft
• The electric motor has three speeds
• With copper tubes and aluminum fins, the main exchanger has female gas hydraulic connections and is equipped with air vents
• The exchanger is not suitable for use in corrosive atmospheres or any environment where corrosion can be generated against aluminum
• The fan coils are equipped, with air filters that are easy to extract and clean.

Features:



Heating performance 2-pipe systems with Ambient air 20°C b.s.; Water (in/out) 70°C/60°C:

• Heat output (70°C) (H/M/L) 7.97 7.23 6.29 kW
• Water flow rate (H/M/L) 699 635 552 l/h
• Pressure drop (H/M/L) 32.0 27.0 21.0 kPa



Performance in heating 2-pipe systems with Ambient air 20°C b.s.; Water (in/out) 45°C/40°C (EUROVENT):

• Heat output (45°C) (H/M/L) 3.96 3.60 3.13 kW
• Water flow rate (H/M/L) 688 624 543 l/h
• Pressure drop (H/M/L) 31.0 26.0 20.0 kPa



Cooling performance Ambient air 27°C b.s./19°C b.u.; Water (in/out) 7°C/12°C (EUROVENT):

• Total cooling capacity (H/M/L) 3.80 3.45 3.00 kW
• Sensible cooling capacity (H/M/L) 2.85 2.50 2.01 kW
• Latent cooling capacity (H/M/L) 0.95 0.95 0.99 kW
• Water flow rate (H/M/L) 654 593 516 l/h
• Pressure drop (H/M/L) 32.0 27.0 21.0 kPa



Fan:



• Air flow rate (H/M/L) 540 470 370 m3/h
• Tangential Type
• Asynchronous Motor
• 1 fan
• Power consumption 31/41/48W

Sound Levels:

• Sound power (H/M/L) 44/49/54 dB(A)
• Sound pressure (H/M/L) 35.5/40.5/45.5 dB(A)



Main Battery Fittings Diameter:

• Standard coil Ø Gas (F) 1/2 "F



Electrical characteristics:

• Electrical connections (H/M/L) V3 V2 V1
• Power supply 230V~50Hz

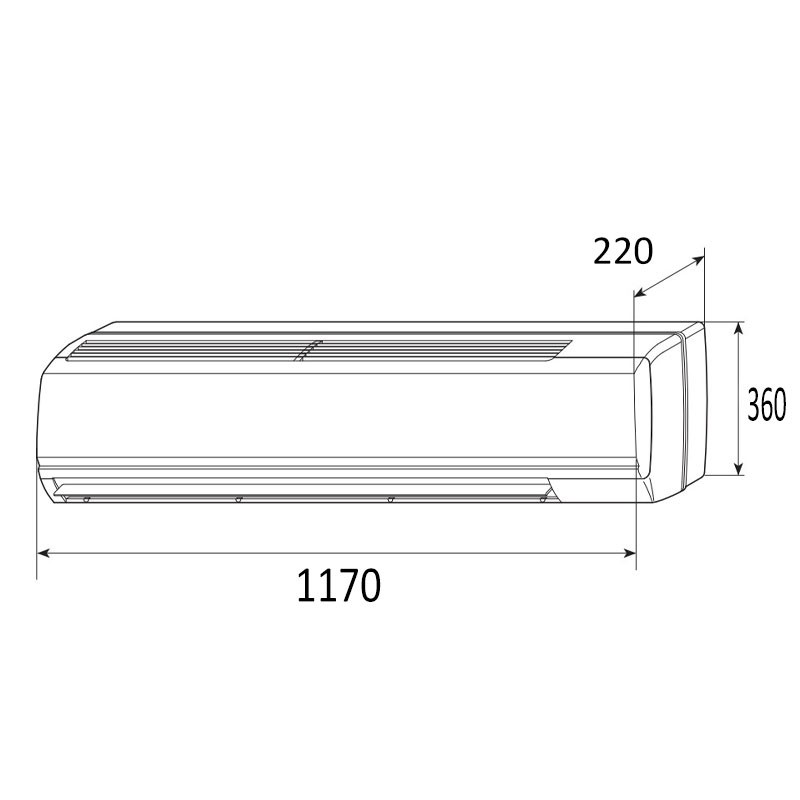

• Dimensions: Width 1170 mm - Height 360 mm - Thickness 220 mm
• Weight 19 Kg.
