Innova Ducto SLC+ 1200 Ducted fancoil multi-fan FASQ12R01II-0R00
NNV FASQ12R01II-0R00
Ducted Fancoil Innova Ducto SLC+ 1200 Multi-fan DC Inverter, horizontally concealed with dual fans and multi-zone management. Quiet, powerful and modulating: ideal for the comfort of residential and commercial spaces.
-

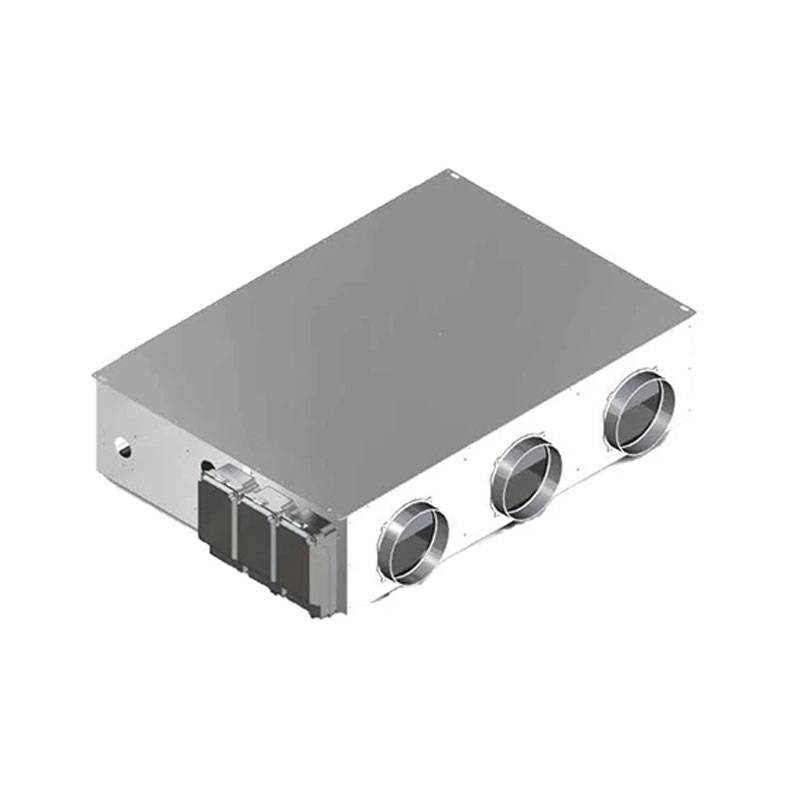

Ducted 2-pipe, horizontal ceiling or recessed version
-
Room-side fan, Number: 5 No.
-
DC Inverter technology with modulating speed
-
Cooling power: 7.73 kW
-
Heating output: 9.82 kW
-
Connectable to M7 series remote controls (continuous modulation)
-
Eurokonus 3/4-inch hydraulic connections on right side
Recommended accessories (can be purchased separately)
-
EFB749II wall control panel: touch display, built-in Wi-Fi, temperature and humidity sensors
-
3-way valve assembly with thermoelectric motor code V30361II
€2,301.06
Out of stock
Incoming
Frequently bought together
Innova Ducto SLC+ ducted fancoil: Efficiency and excellent comfort

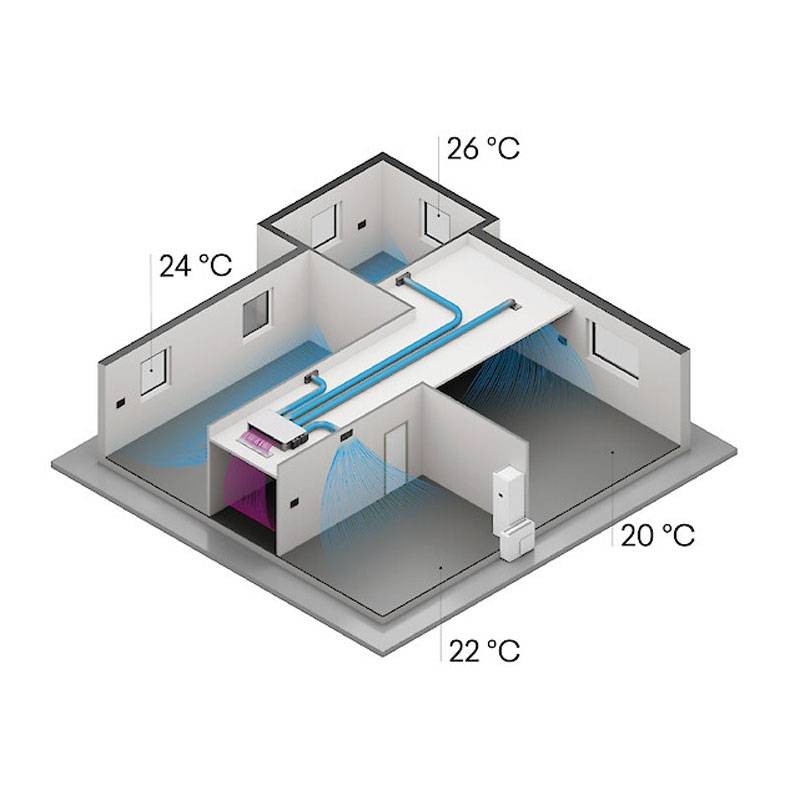

The Innova Ducto SLC+ 1200 Ducted Fancoil is a high-performance air conditioning unit designed for horizontal concealed installations. With its built-in dual room fans, it can handle multiple zones simultaneously, maintaining thermal uniformity and optimizing air distribution.
Equipped with a DC Inverter motor and electronic board for continuous modulation, the device ensures maximum energy efficiency, quiet operation and precise temperature control according to the heat load.
The Ducto SLC+ series is ideal for installation in false ceilings or hidden spaces, thanks to its compact design and the ability to connect remote controls such as EEB749II or EFB749II (optional), for advanced temperature, humidity and ventilation management.
Strengths of the Fancoil Innova Ducto
-

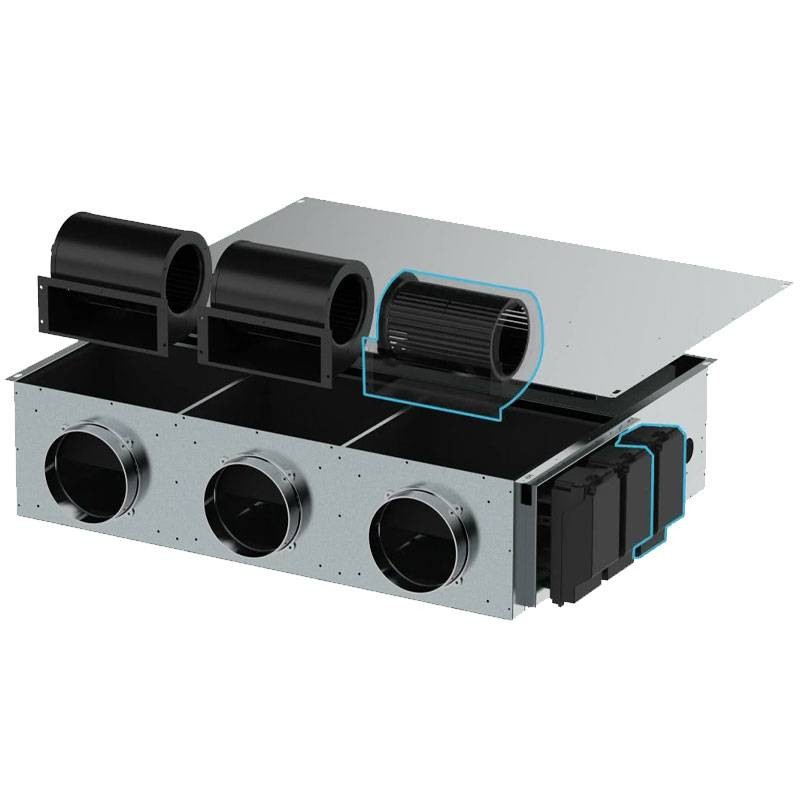

Multizone management with dual room fans
-
Energy saving with DC inverter motor
-
Constant thermal comfort with continuous modulation
-
Flexible and fully concealed installation
-
Smart compatibility with integrable touch panels and Wi-Fi
Silence is ducted
DUCTO MULTI also boasts high standards of quietness. The centrifugal fan with single-motor impeller gradually dampens revolutions as the set temperature is reached, thus ensuring maximum silence.
Technical specifications of the Fancoil Innova Ducto Multi
Fancoil Aeraulic Performance
| Parameter | Value |
|---|---|
| Maximum air flow rate | 1500 m³/h |
| Useful head | 100 Pa |
Fancoil Single Zone Aeraulic Performance
| Parameter | Value |
|---|---|
| Maximum air flow rate | 300 m³/h |
| Average air flow rate | 205 m³/h |
| Minimum air flow rate | 60 m³/h |
Heating Performance (W 45/40; A 20)
| Parameter | Value |
|---|---|
| Total power output | 9.82 kW |
| Water flow rate | 1722 L/h |
| Pressure drop | 38.60 kPa |
| Maximum power consumption | 141 W |
| Maximum sound power | 142 dB(A) |
Performance in Heating Single Zone (W 45; A 20)
| Parameter | Value |
|---|---|
| Total power output | 2.20 kW |
Performance in Cooling (W 7/12; A 27)
| Parameter | Value |
|---|---|
| Total power output | 7.73 kW |
| Sensible power output | 6.70 kW |
| Water flow rate | 1328 L/h |
| Pressure drop | 32.52 kPa |
| Maximum power consumption | 141 W |
| Maximum sound power | 142 dB(A) |
Single Zone Cooling Performance (W 7; A 27)
| Parameter | Value |
|---|---|
| Total power output | 2.10 kW |
| Sensible power output | 1.50 kW |
Room Side Fan
| Parameter | Value |
|---|---|
| Type | Ec Brushless centrifugal forward-bladed |
| Number | 5 |
| Maximum absorbed current | 1,52 A |
| Maximum power consumption | 350 W |
Sound Levels Room Side
| Parameter | Value |
|---|---|
| Sound power transmitted to the structure Lw | 64.0 dB(A) |
| Radiated sound power in the channel Lw | 71.0 dB(A) |
| Average sound pressure at 1 m Lp | 51.0 dB(A) |
| Average sound pressure at 3 m Lp | 43.0 dB(A) |
Models
| Parameter | Value |
|---|---|
| Type | Hydronic battery |
| Number | 1 |
| Battery water content | 2,14 L |
| Maximum operating pressure | 10 bar |
Electrical Characteristics
| Parameter | Value |
|---|---|
| Power supply | 230 V / 1 / 50 Hz |
| Maximum total power consumption | 420 W |
| Total current consumption | 3,50 A |
| Degree of protection | IP X0 |
Connections
| Parameter | Value |
|---|---|
| Condensate drain connection | 20 mm |
| Hydraulic connections | EK 3/4 inch |
| Intake air connection | 160 mm |
| Return air connection | 1320 × 150 mm |
Dimensions
| Parameter | Value |
|---|---|
| Width | 1440 mm |
| Length | 695 mm |
| Height | 240 mm |
| Weight | 67.0 kg |
There are no reviews
Data sheet
- Type: Fan-Coils
- Power: 7,73/9,92KW
- Installation: Duct
- Connection: Single-phase
- Series: Ducto SLC
