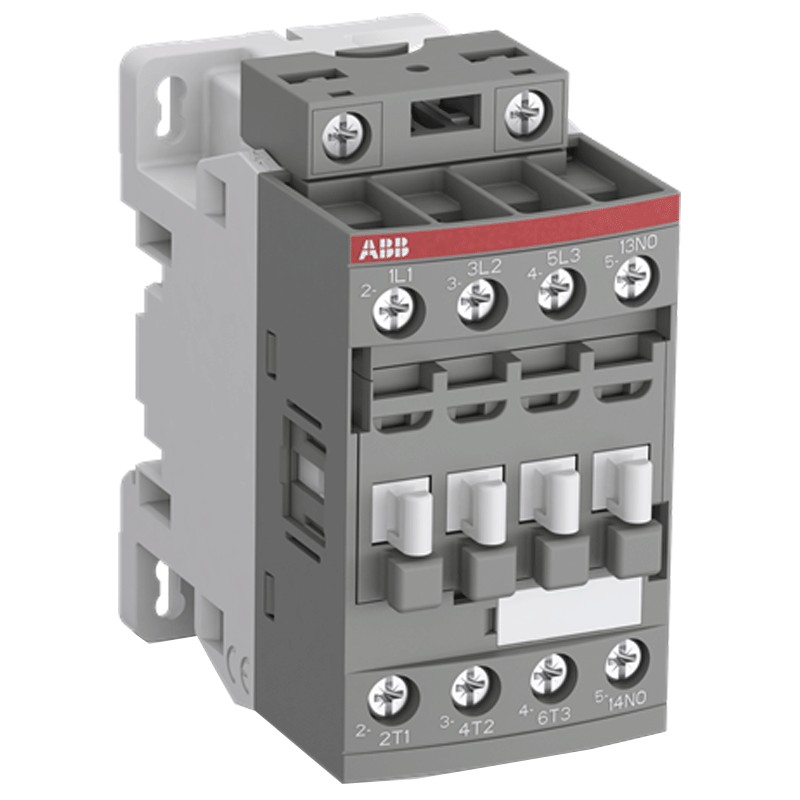

ABB contactor 3 poles 9A 100-250V a.c./d.c. AF09301013
ABB AF09301013
3471523110038
Abb contactor, with the following characteristics
- Rated voltage control circuit DC operation 100/250 V
- Nominal operating voltage auxiliary circuit 690 V - main circuit 690 V
- 3 poles
- 2 modules
- DIN connection (universal for any switchboard on the market)
- Contact type 3NO
- Rated frequency auxiliary circuit 50 / 60 Hz - main circuit 50 / 60 Hz
- Operating current 9 amperes
ABB contactor 3 poles 9A 100-250V a.c./d.c. AF09301013
€27.02
€27.02
Tax included
Tax included
Pay in installments with Klarna
Items Available: 131
Frequently bought together
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated control circuit voltage DC operation 100/250 V
- Rated operating voltage auxiliary circuit 690 V - main circuit 690 V
- Operating current 9 amps
- Rated frequency auxiliary circuit 50 / 60 Hz - main circuit 50 / 60 Hz
- 3 poles
- 2 modules
- Contact type 3NO
- Type of terminal Screw Terminals
- Degree of protectionauxiliary terminals IP40, coil terminals IP20,main terminals IP20
- Screw Terminals

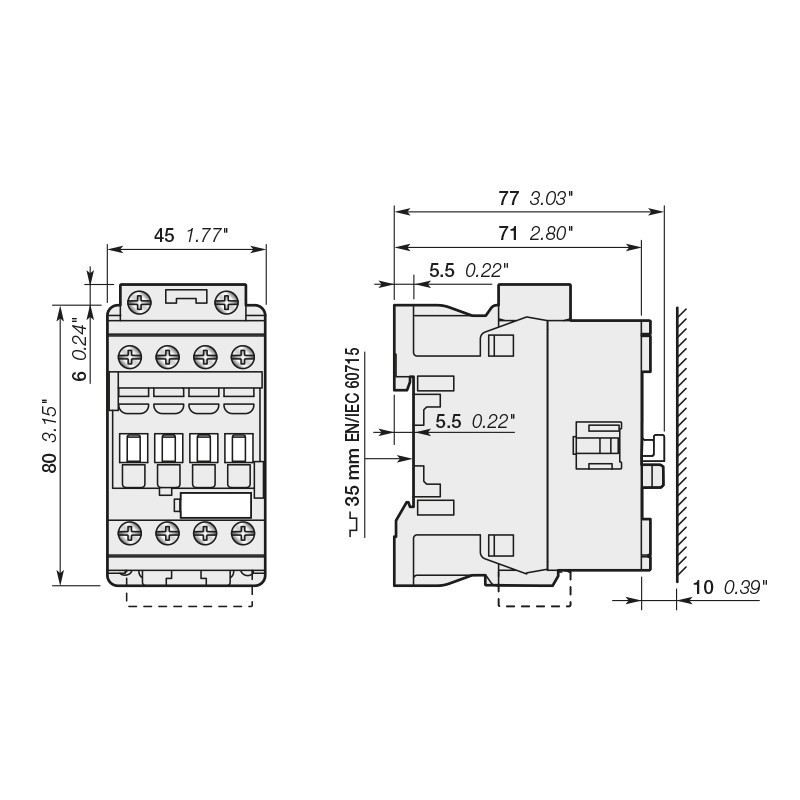

- Net width 45 mm
- Depth 77 mm
- Net Height 86 mm
- Net Product Weight 0.27 kg
Ottimo contattore. Peccato che non abbia disponibile anche un contatto NC. Si sopperisce comunque con un contatto ausiliario.
Data sheet
- Type:
- Contactors
- Voltage:
- 100/250VAC
- Modules:
- 2
- Poles:
- 3P
- Amps:
- 9A
