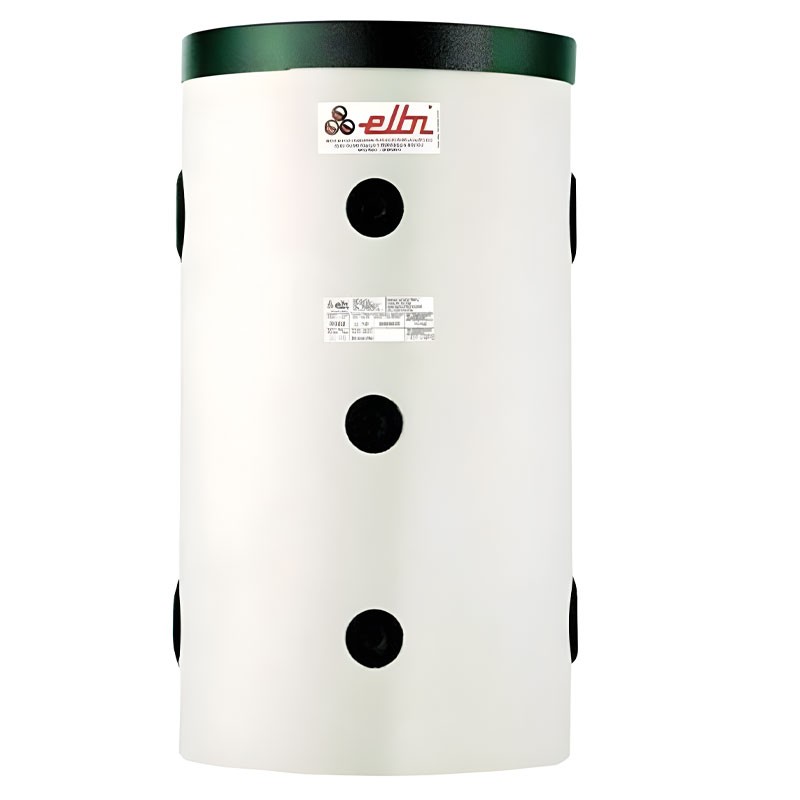

Elbi AR 200-liter vitrified accumulator for chilled water 1681129

Elbi
Elbi
ELB A460L47 PGP55 8019742128011

Elbi vitrified inertial storage tank/boiler model AR 200 for chilled water, with the following characteristics



  • Capacity: 200 litres (effective 195)
  • Energy class: B
  • Maximum cylinder temperature: 95°C
  • Heat dispersion in Watts: 57
  • Height: 1185mm
  • Diameter g 460mm
  • Diameter: 610mm
  • Tipping height: 1350mm
  • Insulation type: rigid polyurethane foam with 95% closed cells, CFC- and HCFC-free, fire resistance class B2 according to DIN 4102-1
  • Insulation thickness: 55 mm
  • Finish: RAL 9006 grey polystyrene



Elbi accumulators are designed to be installed as a thermal flywheel in air-conditioning/heating systems, with the aim of optimising the overall cooling inertia by increasing the volume of chilled water.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Elbi AR 200-liter vitrified accumulator for chilled water 1681129
€504.20
€504.20

€504.20
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€504.20

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Reference standard:

  • Directive 2014/68/EU - ART. 4.3, with exemption from CE marking.
  • Standard EN 12897:2020
  • Designed and manufactured in accordance with the requirements of 2009/125/EC and Regulation 814/2013 (EU)
  • Labelling in accordance with the requirements of 2017/1369/EU and Delegated Regulation 812/2013 (EU)





Internal vitrification: DIN 4753 - The vitrification treatment makes the accumulator resistant to corrosive phenomena.

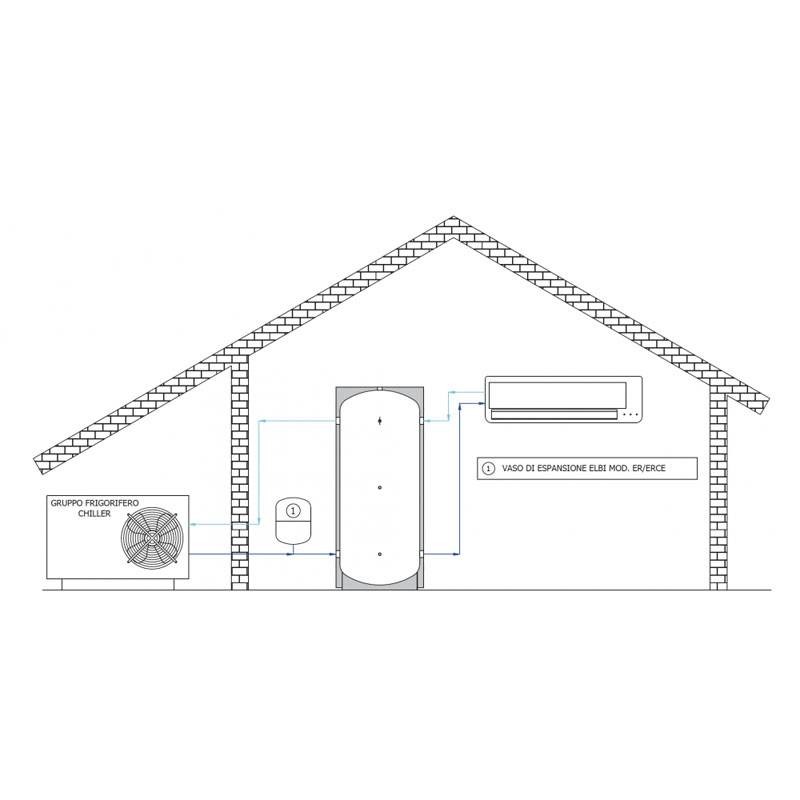

Installation: Use as a thermal flywheel in air conditioning systems to optimise the cooling inertia and increase the volume of chilled water.


Legend:

  • DN1 Inlet from refrigerating unit
  • DN2 Outlet to refrigerating unit
  • DN3 Outlet to plant
  • DN4 Inlet from plant
  • DN7 Preparation for electric heater
  • DN11 Drain
  • DN15 Probe
  • DN19 Auxiliary connection



Connection dimensions in mm:

  • DN1: 255
  • DN2: 915
  • DN3: 255
  • DN4: 915
  • DN7: /
  • DN7: 505
  • DN7:505
  • DN11: /
  • DN15: 255
  • DN15: 915
  • DN15:585
  • DN19:/



Connection connections:

  • DN1: G 1.1/2’
  • DN2: G 1.1/2’
  • DN3: G 1.1/2’
  • DN4: G 1.1/2’
  • DN7: G 1.1/2’ DN7: G 1.1/2’
  • DN7: G 1.1/2’
  • DN11: /
  • DN15: G1/ 2’
  • DN19: G 1.1/4’

There are no reviews

Data sheet

Type:
Accumulators
Capacity:
200 Liters
Energy class:
B
Consulta scheda EPREL info_outline
