Elbi ACF-500 Puffer Accumulator 500-liter Inertial A480L55 GG250
EBI A480L55 GG250
8019742090721
Elbi ACF-500 500-liter inertial thermal puffer accumulator for air conditioning and heating systems to optimize thermal inertia and increase the volume of chilled/heated water:
- Capacity 494 liters
- Diameter 760 mm
- Height 1735 mm
- Qr (tipping height) 1900 mm
- Energy class C
- Max kettle temperature 95 degrees
- Polyurethane insulation
- Max Operating Pressure 10 bar
Elbi ACF-500 Puffer Accumulator 500-liter Inertial A480L55 GG250
€803.46
€803.46
Tax included
Tax included
Pay in installments with Klarna
Items Available: 1
Elbi's ACF accumulators are designed to be installed as a thermal flywheel in air conditioning and heating systems that have the problem of thermal inertia.
The purpose of the accumulators is to optimize the overall thermal inertia by increasing the volume of water processed.
The additional storage also allows the operations of refrigeration units (in air conditioning systems) and heating units (in heating systems) to be spaced out, thus making the workloads of motors and equipment less burdensome.

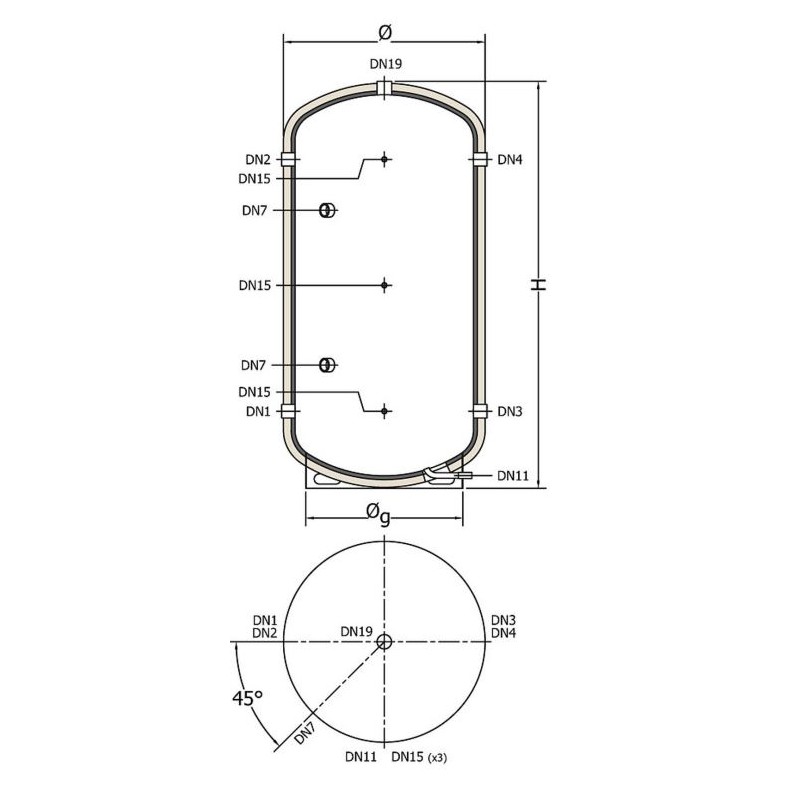

Dimensions Connections:
- DN1 320
- DN2 1390
- DN3 320
- DN4 1390
- DN7 730
- DN15 320 - 855 - 1390
Connections connections:
- DN1 G3"
- DN2 G3"
- DN3 G3"
- DN4 G3"
- DN7 G1/2"
- DN15 G1/2"
- DN19 G1/4"
There are no reviews
Data sheet
- Type:
- Accumulators
- Capacity:
- 500 Liters
- Energy class:
- C
