Pleion Water accumulator PS-ZN 50 hot/cold 3010600050
PLE 3010600050
The Pleion PS ZN 50 50-liter technical water storage puffer is ideal for hot/cold systems. Made of steel, without internal exchangers, with armaflex insulation and versatile installation.
-
Capacity: 50 liters for technical water (without exchanger)
-
Made of S235JR steel
-
Non-removable self-extinguishing armaflex insulation
-
Floor or wall installation (suspended)
-
Without internal coils, with drain and vent
-
Energy class B
€204.96
Items Available: 16
: 14

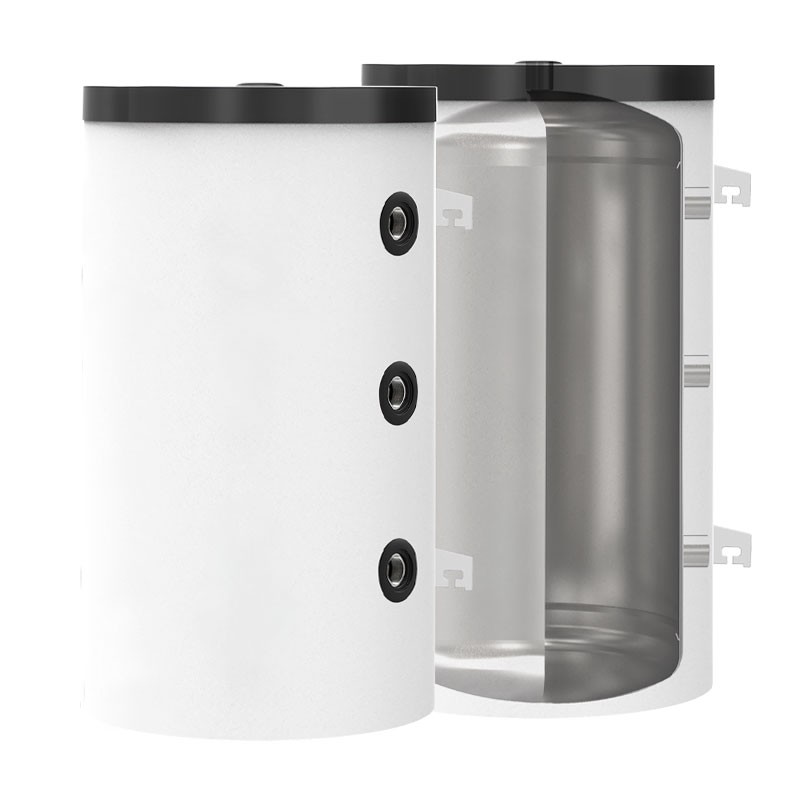

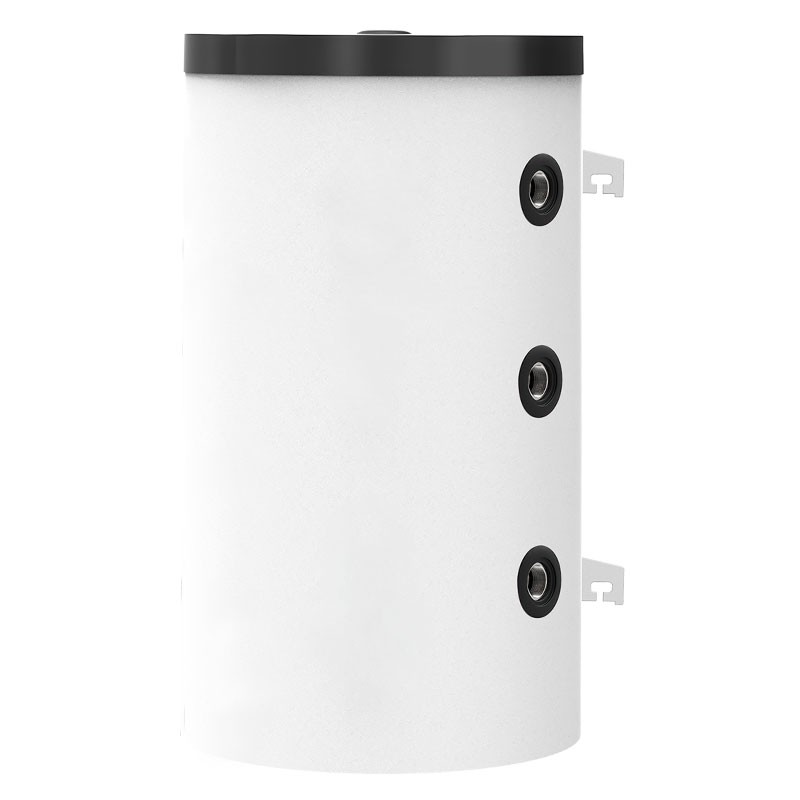

Pleion Puffer PS-ZN 50 liters: Efficient storage tank for thermal systems
The Pleion PS ZN 50 puffer is a technical water storage tank designed to optimize the efficiency of heating and cooling systems. With a capacity of 50 liters, it is ideal for small and medium-sized systems where there is a need to intelligently store and manage the thermal energy produced. The absence of internal exchangers makes it perfect as a thermal flywheel or inertial storage in heat pump systems, boilers or solar systems.
Sturdy structure and effective insulation
Constructed of durable S235JR steel, the puffer has self-extinguishing armaflex foam insulation applied directly to the surface of the tank. This type of insulation, which cannot be removed, ensures high thermal performance and fire safety by preventing leakage and keeping the temperature of the stored technical water stable. The insulation system also contributes to energy class B, a guarantee of good efficiency performance.
Exchangerless design for maximum versatility
The PS ZN 50 model has no internal coil, making it extremely versatile and suitable for various system configurations. It can be easily integrated into hybrid or conventional systems as a buffer tank, serving as a compensation tank between heat generation and distribution. The hydraulic connections (varying in number depending on the model) allow easy connection to the various circuits, while the drain and vent complete the puffer's technical equipment.
Flexible installation
The Pleion PS ZN 50 can be installed either on the floor or suspended on the wall, offering excellent flexibility when designing and installing the system. This feature makes it ideal for smaller technical rooms or installations in unconventional spaces, always ensuring a safe and functional installation.
Technical specifications Puffer Pleion PS ZN 50
| Feature | Description |
|---|---|
| Kettle content | 50 liters |
| Temperature loss (DT 45K) | 38 KW |
| Test pressure | 4.5 bar |
| Maximum operating pressure | 3 bar |
| Maximum operating temperature | 95 degrees |
| Empty weight | 15 kg |
| Overall height dimensions | 755 mm |
| Diameter | 430 mm |
| Insulation thickness | 55 mm |
| Connections | |
| Bracket height | 450 mm |
| First sleeve | 162 mm F 1" |
| Second sleeve | 377 mm F 1" |
| Third sleeve | 592 mm F 1" |
| Vent | F 1/2" |
| Outlet dimensions | F 1/2" |
There are no reviews
Data sheet
- Type: Accumulators
- Capacity: 50 Liters
- Energy class: B
