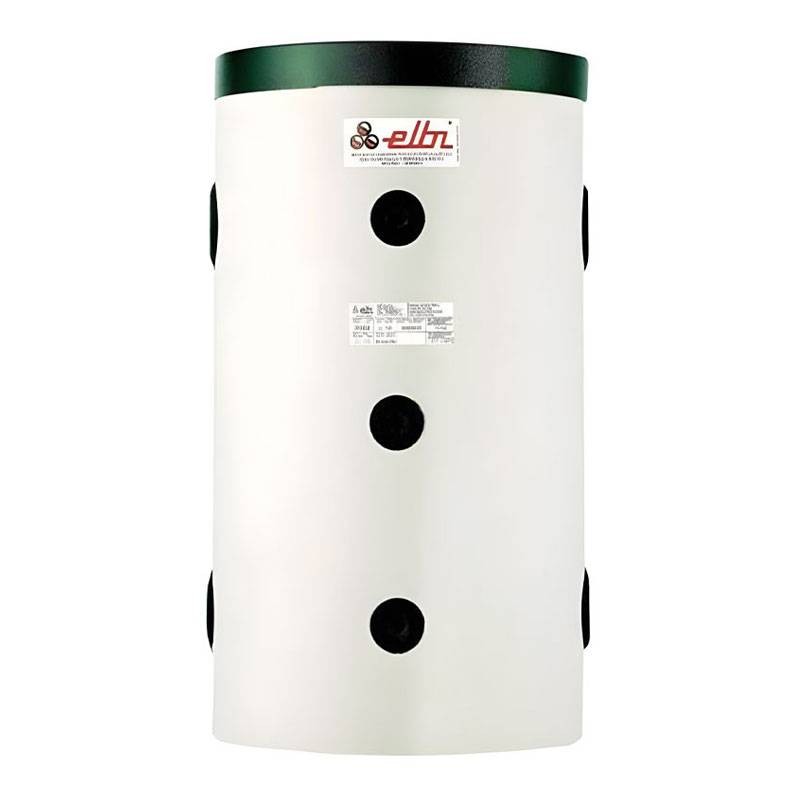

Elbi AR-100 100 liter 10 bar inertial puffer accumulator A460L38 PGP55
ELB A460L38 PGP55
8019742125362
Elbi AR-100 Inertial Puffer Accumulator, designed to improve thermal efficiency in heating and air-conditioning systems, offers corrosion resistance and reduced heat loss due to 30 mm polyurethane foam insulation, with the following features:
-
Capacity: 100 liters for hot or chilled water storage
-
Maximum pressure: 10 bar for air conditioning and heating systems
-
30 mm polyurethane foam insulation for minimum dispersion
-
Threaded connections from: 1 1/2 - 1 1/4 inches, for versatile installation
-
Vertical cylindrical shape with stable support base
€393.21
Items Available: 2
: 1
Elbi AR-100 storage tank: optimized thermal inertia and maximum resistance
Optimization of thermal inertia
The Elbi AR-100 accumulator is ideal for heating and air conditioning systems, functioning as a thermal flywheel to optimize cooling inertia. This makes it possible to reduce the number of times the refrigeration unit or boiler is turned on and off, increasing the efficiency and lifetime of the equipment.
High-quality materials and corrosion resistance
Constructed of 900°C vitrified steel, this puffer ensures maximum corrosion resistance and long service life. Treatment in accordance with DIN 4753 ensures protection against chemicals in the water.
Elbi puffer: thermal efficiency and safe installation
Thermal insulation for greater efficiency
With 30 mm rigid polyurethane foam insulation, the storage tank minimizes heat loss, improving energy savings and optimizing system performance.
Versatile and safe installation
Equipped with 1 1/2- to 1 1/4-inch threaded connections, the Elbi AR-100 puffer easily integrates with different types of systems. The upright cylindrical shape with a stable support base makes it easy to install.
Technical Specifications Elbi Inertial Puffer
| Feature | Value |
|---|---|
| Capacity | 100 liters |
| Material | Steel vitrified at 900°C |
| Maximum pressure | 10 bar |
| Operating temperature | -10°C / +99°C |
| Insulation | 30 mm polyurethane foam |
| Thermal conductivity | 23.5 mW/mK |
| Energy class | A |
| Diameter | 460 mm |
| Height | 885 mm |
| Hydraulic connections | 1 1/2 - 1 1/4 inches |
| Insulation density | 40 kg/m³ |
There are no reviews
Data sheet
- Type: Accumulators
- Capacity: 100 Liters
- Energy class: A
