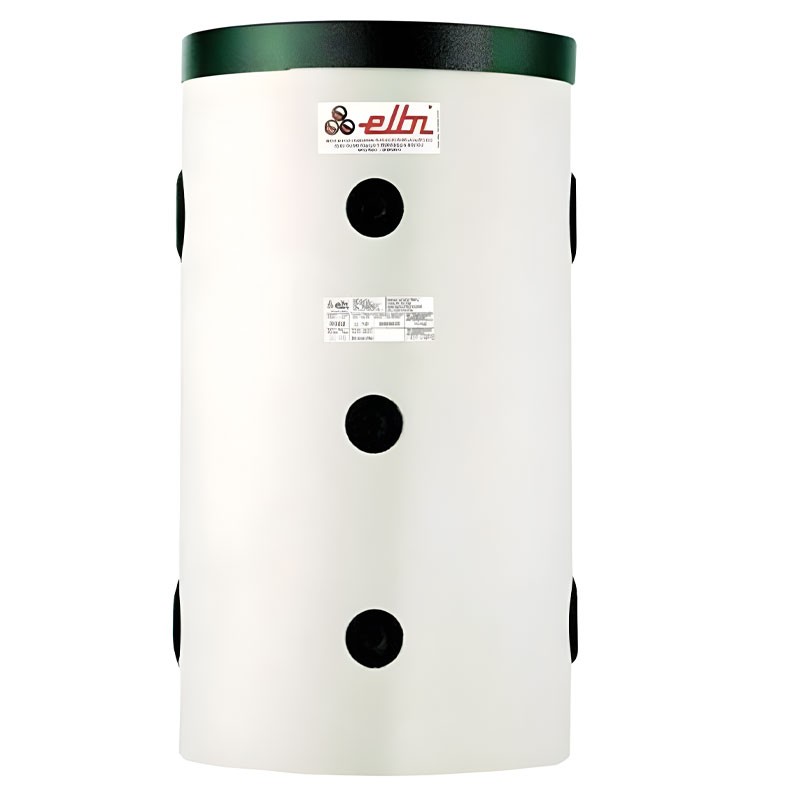

Elbi ACF-100 96-liter Inertial Buffer tank A480L38 PGP55
EBI A480L38 PGP55
8019742125379
Elbi ACF-100 96-liter inertial Buffer tank for air conditioning and heating systems to optimize thermal inertia and increase the volume of chilled/heated water:
- 96-liter capacity
- Diameter 510 mm
- Height 960 mm
- Qr (tipping height) 1090 mm
- Energy class B
- Max kettle temperature 95 degrees
- Polyurethane insulation
- Max operating pressure 10 bar
Elbi ACF-100 96-liter Inertial Buffer tank A480L38 PGP55
€348.91
€348.91
Tax included
Tax included
Pay in installments with Klarna
Items Available: 8
Elbi's ACF buffer tanks are designed to be installed as a thermal flywheel in air conditioning and heating systems that have the problem of thermal inertia.
The purpose of the accumulators is to optimize the overall thermal inertia by increasing the volume of water processed.
The additional storage also allows the operations of refrigeration units (in air conditioning systems) and heating units (in heating systems) to be spaced out, thus making the workloads of motors and equipment less burdensome.
Dimensions Connections:
- DN1 235
- DN2 715
- DN3 235
- DN4 715
- DN7 315
- DN15 235 715 475
Connections connections:
- DN1 G1/2"
- DN2 G1/2"
- DN3 G1/2"
- DN4 G1/2"
- DN7 G1/2"
- DN15 G1/2"
- DN19 G1/4"
Data sheet
- Type:
- Accumulators
- Capacity:
- 100 Liters
- Energy class:
- B
