Elbi ACF-200 Puffer Accumulator 200-liter Inertial A480L47 GG250
ELB A480L47 PGP55
8019742128042

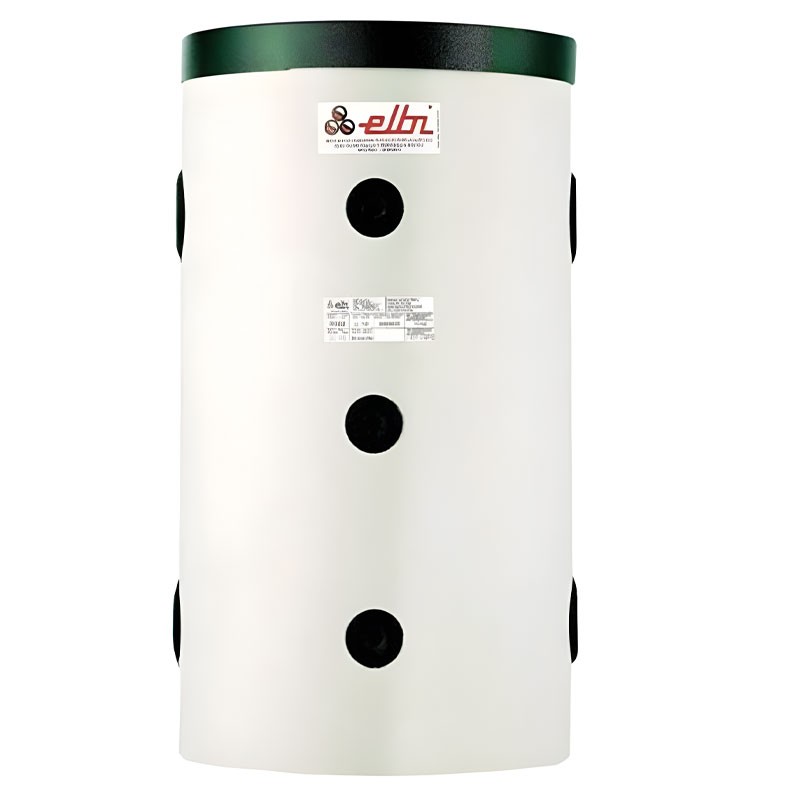

200 litre Elbi inertial thermal puffer/accumulator model ACF-200 HE for air conditioning and heating systems, to optimise thermal inertia and increase the volume of chilled/heated water:
- Capacity 195 litres
- Diameter 610 mm
- Height 1185 mm
- Qr (tipping height) 1350 mm
- Energy class B
- Heat dispersion: 57W
- Max. cylinder temperature: -10/+95°C
- Type of insulation: rigid polyurethane foam with 95% closed cells, CFC- and HCFC-free, fire resistance class B2 according to DIN 4102-1
- Insulation thickness: 55 mm
- Max. operating pressure 10 bar
- Finish: polystyrene grey RAL 9006
€443.47
Items Available: 1
Elbi's ACF accumulators are designed to be installed as a thermal flywheel in air conditioning and heating systems where thermal inertia is a problem. The purpose of the accumulators is to optimise the overall thermal inertia by increasing the volume of water processed The additional accumulator also makes it possible to distance the work of the refrigeration units (in air-conditioning systems) and the heating units (in heating systems), thus easing the workload on motors and equipment.

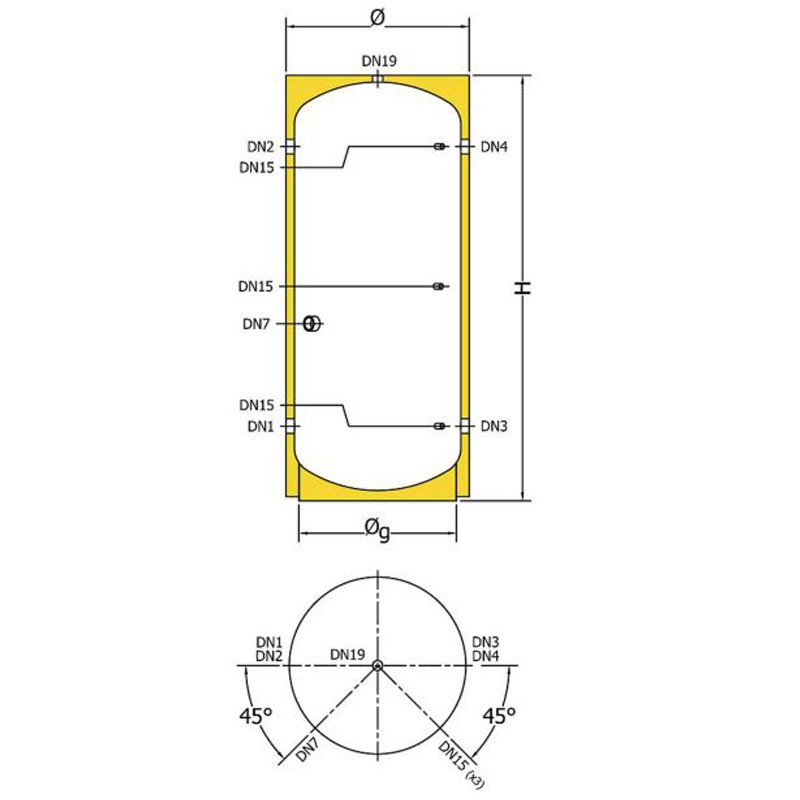

Dimensions Connections in mm:
- DN1 255
- DN2 915
- DN3 255
- DN4 915
- DN7 505
- DN15 255 - 585 - 915
Connections:
- DN1 G1/2"
- DN2 G1/2"
- DN3 G1/2"
- DN4 G1/2"
- DN7 G1/2"
- DN15 G1/2"
- DN19 G1/4"
Ritengo che i prezzi in generale dei puffer siano eccessivi, il prodotto in questione è leggermente più economico rispetto alla concorrenza. Devo ancora provare l'impianto per cui non posso fare una valutazione attendibile su funzionamento e affidabilità.
Data sheet
- Type: Accumulators
- Capacity: 200 Liters
- Energy class: B
