Vortice Axial fan VARIO 230/9 12452
VOR 0000012452
8010300124520

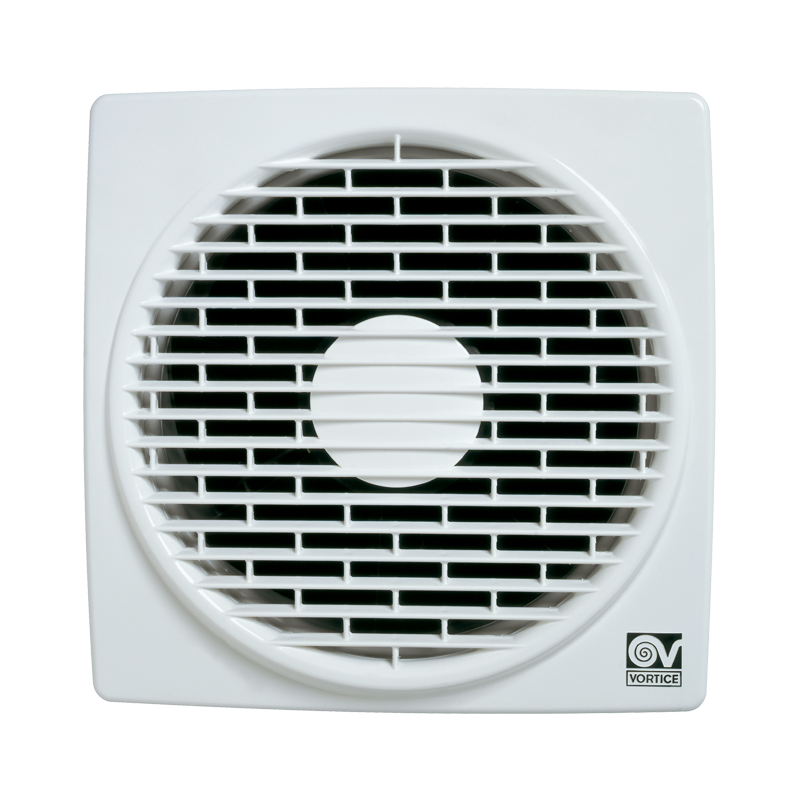

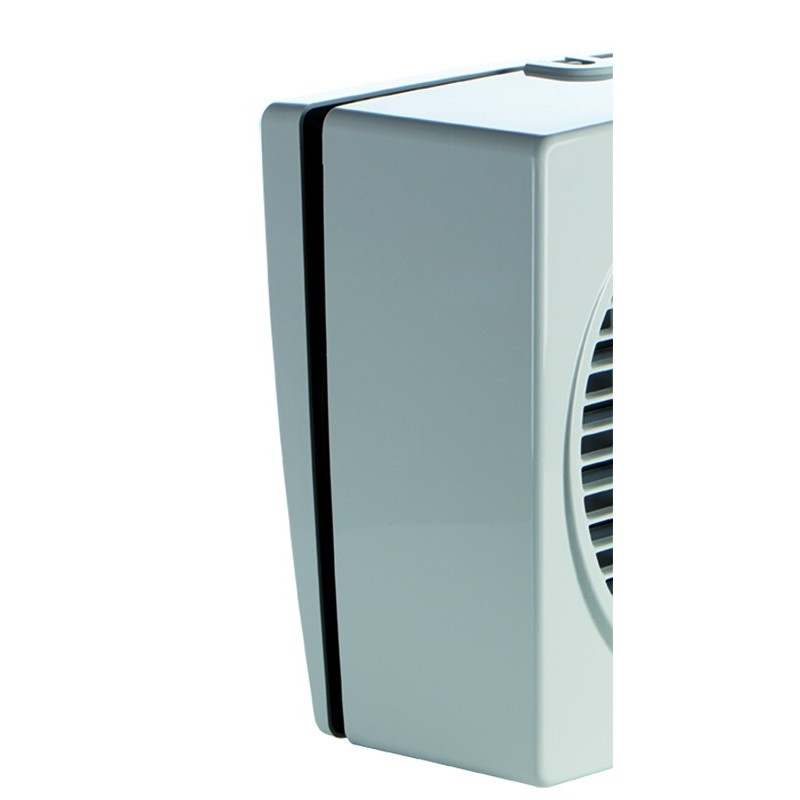

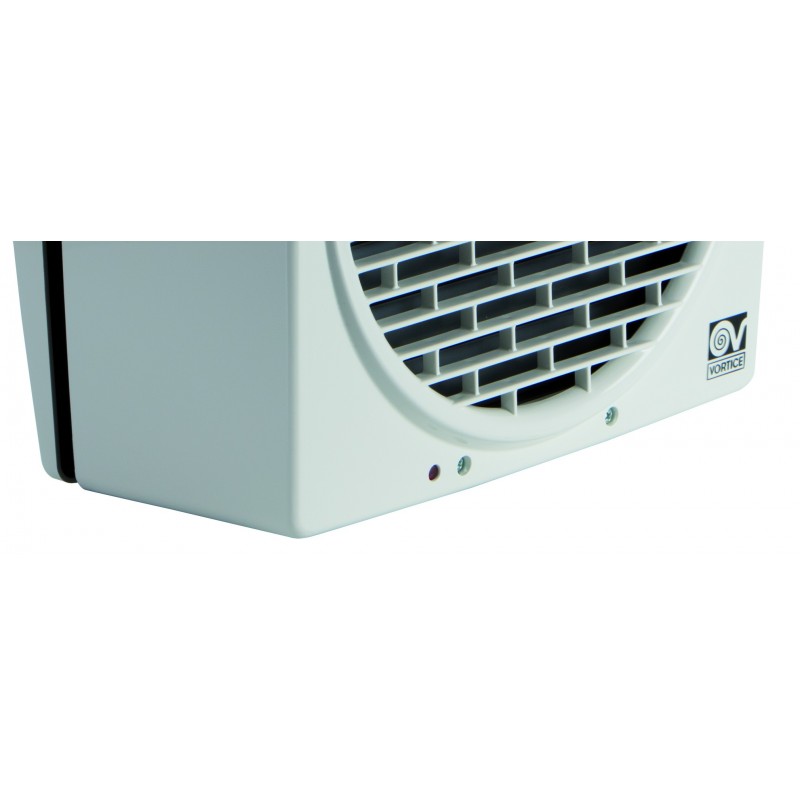

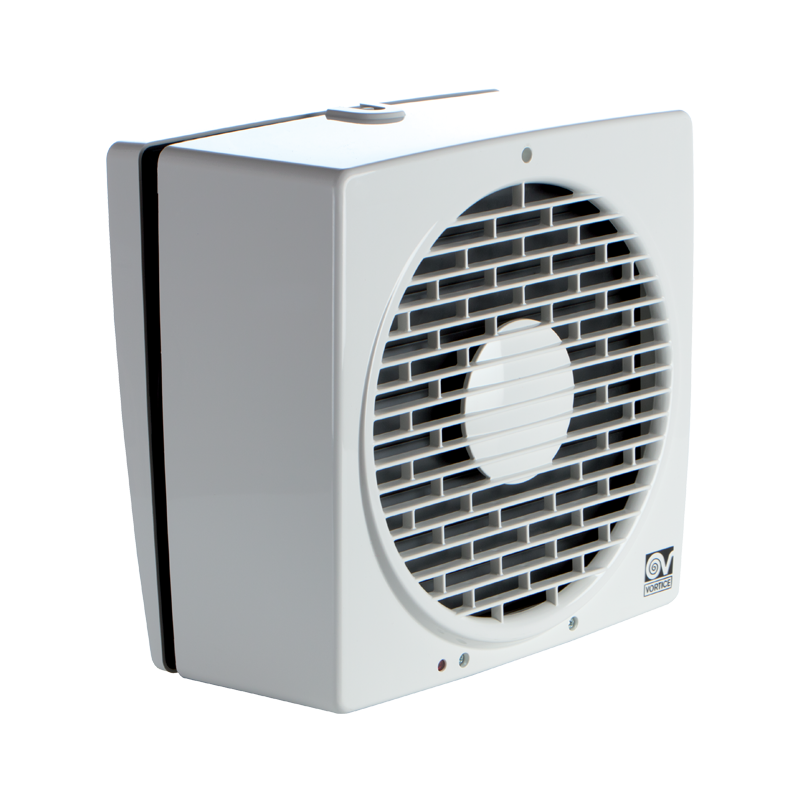

Vortice Air and odour Axial fan VARIO 230/9" AR, for wall and also glass, rated diameter 230 mm.
€321.56
Items Available: 18
: 4
Frequently bought together
Features:
- Model for window/wall installation
- Reversible function (air intake or extraction)
- Automatically operated damper: prevents cold air and odours from entering when the appliance is switched off.
- ABS plastic resin construction resistant to aging due to "UV resistant" sun exposure
- Nominal diameter 230 mm

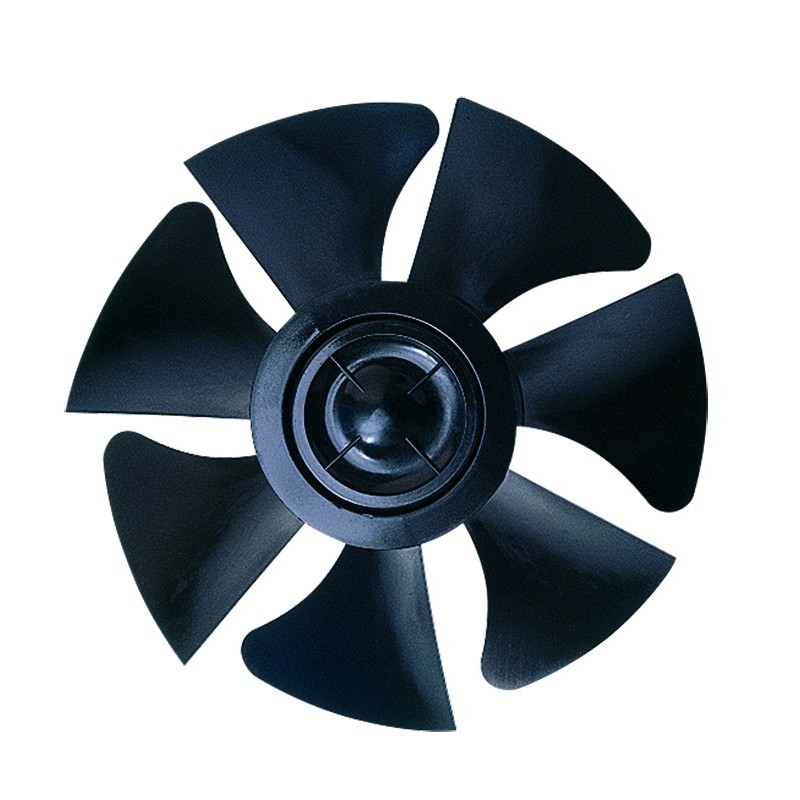

- Thermally protected motor, with shaft mounted on self-lubricating bushings, combined with a helical impeller in thermoplastic material with wing profile blades
- Safety and performance certified IMQ and IMQ PERFORMANCE.
Technical specifications:
- Automatic Wing Opening
- Max. current consumption (A) 0.13
- Frequency (Hz) 50-60
- IP X4 Degree of Protection
- Insulation Class II
- Ø Discharge (mm) 230
- Weight (Kg) 3,45
- Max. power consumption (W) 26
- Power consumption max 60Hz (W) 26
- Ambient temperature max. continuous operation 60Hz (°C) 50
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Max. flow rate (m³/h) 480
- Max suction flow rate (l/s) 133
- Max. suction flow rate (m3/h) 480
- Max flow rate in ventilation (l/s) 86
- Max flow rate in ventilation (m3/h) 310
- Sound Pressure Lp [dB (A)] 3m 35.6
- RPM 790
- Suction RPM 790
- RPM in ventilation 1080
Data sheet
- Diameter: 260-265
- Type: Axial fans
