Vortice Ultra-flat Axial fan diameter 150 11125


VOR 0000011125 8010300111254

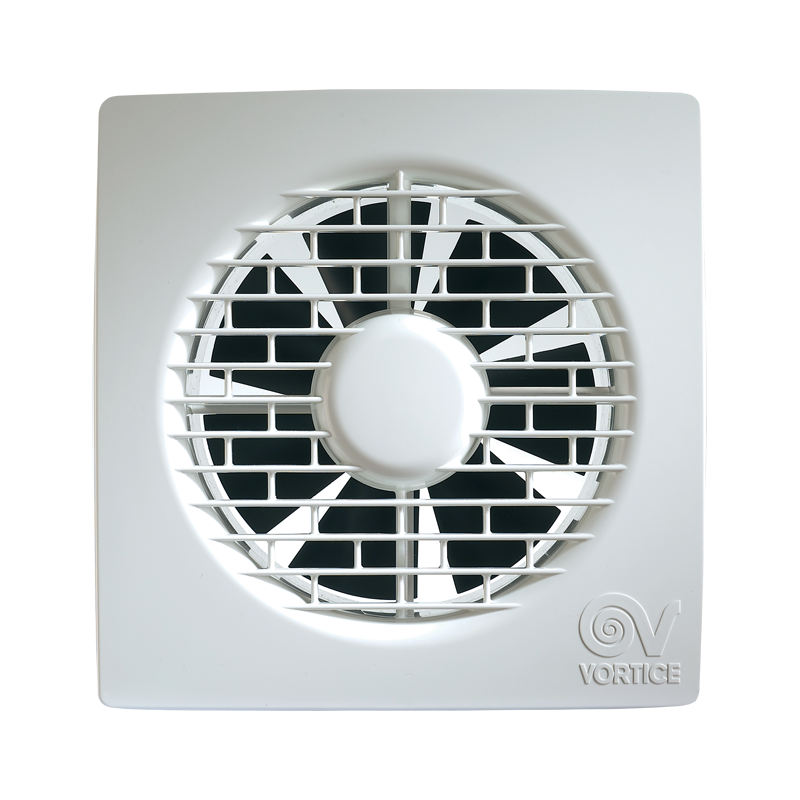

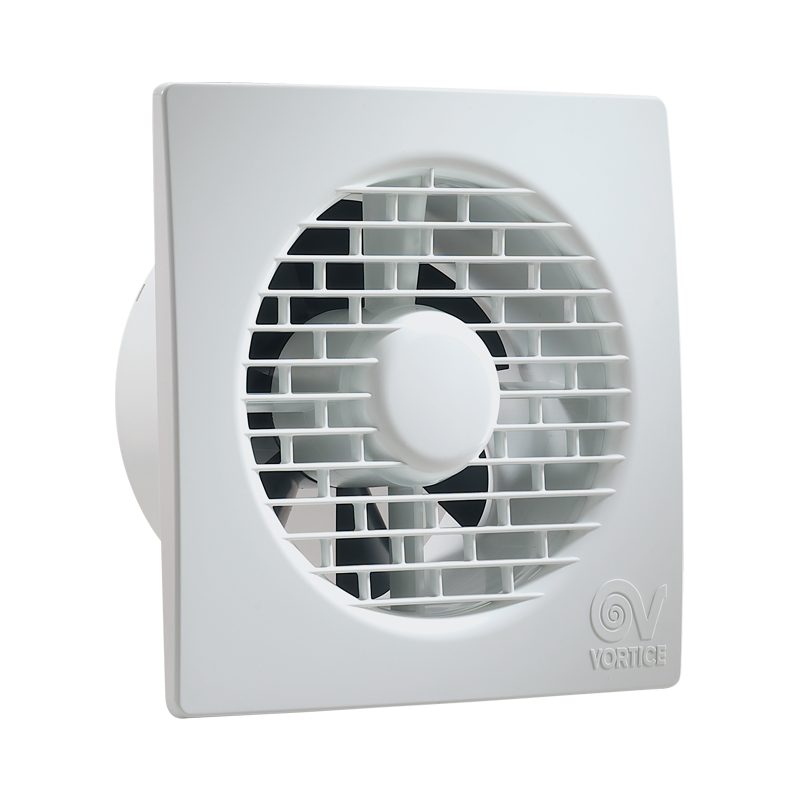

Axial fan Vortice model MF 150/6", wall mounted, White color, Rated diameter 150 mm.

Request info about this product

Vortice Ultra-flat Axial fan diameter 150 11125

€131.89
€131.89

Vortice Ultra-flat Axial fan diameter 150 11125

€131.89
Tax included
klarna Pay in installments with Klarna
qty

Vortice Ultra-flat Axial fan diameter 150 11125

€131.89

Buy it within and receive it from Thursday, 20 June
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Construction in plastic resin resistant to aging due to sun exposure ("UV resistant")
  • Rated diameter 150 mm
  • Thermally protected motor, with shaft mounted on self-lubricating bushings, combined with a helical impeller in thermoplastic material with wing profile blades
  • Maximum flow rate 335 m3/h
  • Anti-return valve applied to the delivery port
  • Safety and performance certified IMQ and IMQ PERFORMANCE
  • Speed controllable by Vortex regulator.

Technical specifications:

  • Current consumption max (A) 0.15
  • Rated Duct Diameter (mm) 150
  • Frequency (Hz) 50
  • IP X4 Degree of Protection
  • Insulation Class II
  • Ø Exhaust (mm) 156
  • Weight (Kg) 0.97
  • Max. power consumption (W) 28
  • Max. ambient temp. continuous operation (°C) 50
  • Voltage (V) 220-240
  • Max flow rate (m³/h) 335
  • Max pressure (mmH2O) 6
  • Max pressure (Pa)
  • Sound Pressure Lp [dB (A)] 3m 40.1 db

Data sheet

Diameter:
150
Type:
Axial fans
