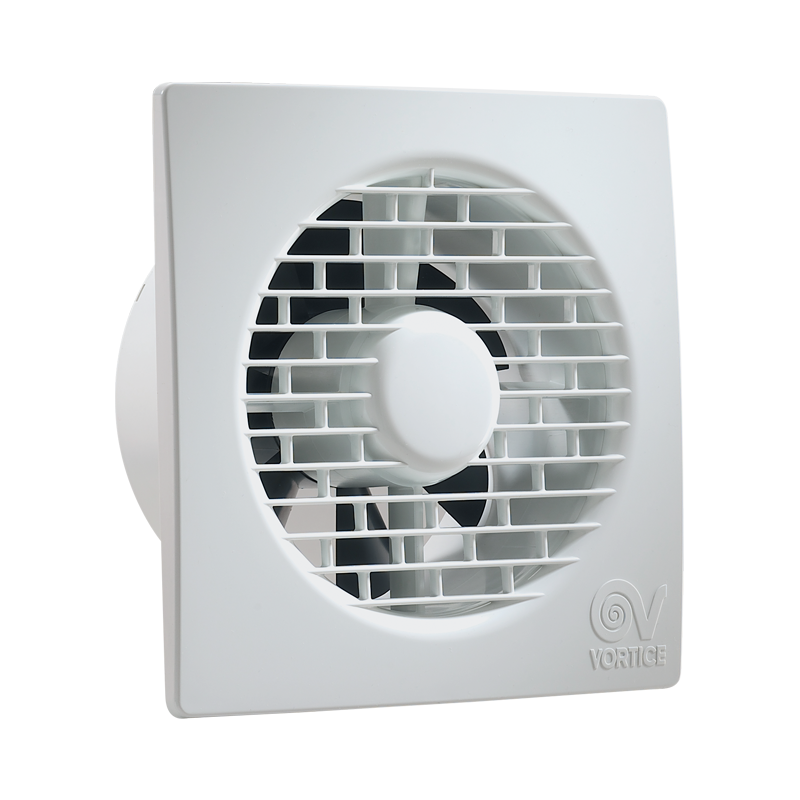

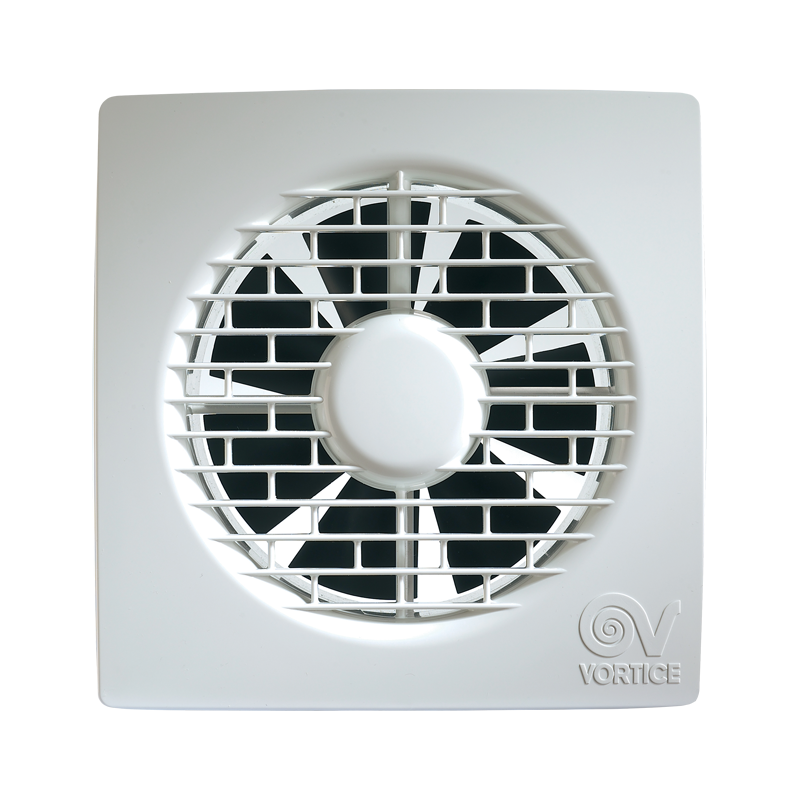

Vortice Ultra flat Axial fan 120 11124


VOR 0000011124 8010300111247

Axial fan Vortice model MF 120/5" helical Vortex, Colour White, Wall application, Rated diameter 120 mm.

Request info about this product

Vortice Ultra flat Axial fan 120 11124

€63.22
€63.22

Vortice Ultra flat Axial fan 120 11124

€63.22
Tax included
klarna Pay in installments with Klarna
qty

Vortice Ultra flat Axial fan 120 11124

€63.22

Buy it within and receive it from Thursday, 20 June
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • UV resistant plastic resin construction resistant to ageing due to sun exposure ("UV resistant")
  • Rated diameter 120 mm
  • Thermally protected motor, with shaft mounted on self-lubricating bushings, combined with a helical impeller in thermoplastic material with wing profile blades
  • Maximum flow rate 175 m3/h
  • Anti-return valve applied to the delivery port
  • Safety and performance IMQ and IMQ PERFORMANCE certified
  • Speed controllable by Vortex regulator.



Technical specifications:

  • Current consumption max (A) 0.12

Nominal Duct Diameter (mm) 120

Frequency (Hz) 50

IP X4 Degree of Protection

Insulation Class II

Ø Exhaust (mm) 119

Weight (Kg) 0.61

Power consumption max (W) 20

  • Max. ambient temp. continuous operation (°C) 50
  • Voltage (V) 220-240
  • Max flow rate (m³/h) 175
  • Max pressure (mmH2O) 5
  • Max pressure (Pa) 49
  • Sound Pressure Lp [dB (A)] 3m 34.4 db

Data sheet

Diameter:
120
Type:
Axial fans
