Vortice Axial fan diameter 150 11401
VOR 0000011401
8010300114019

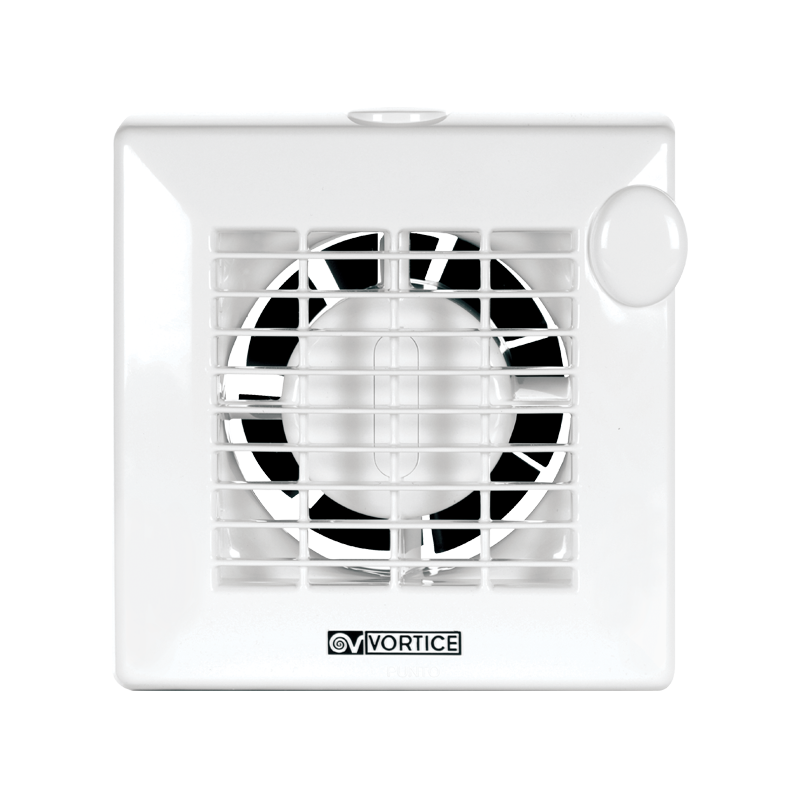

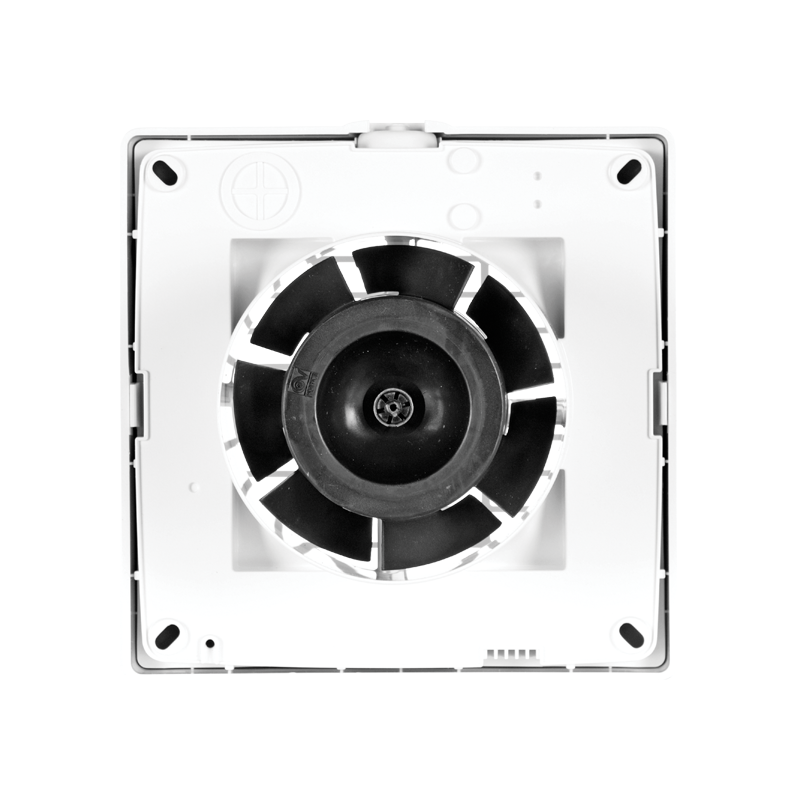

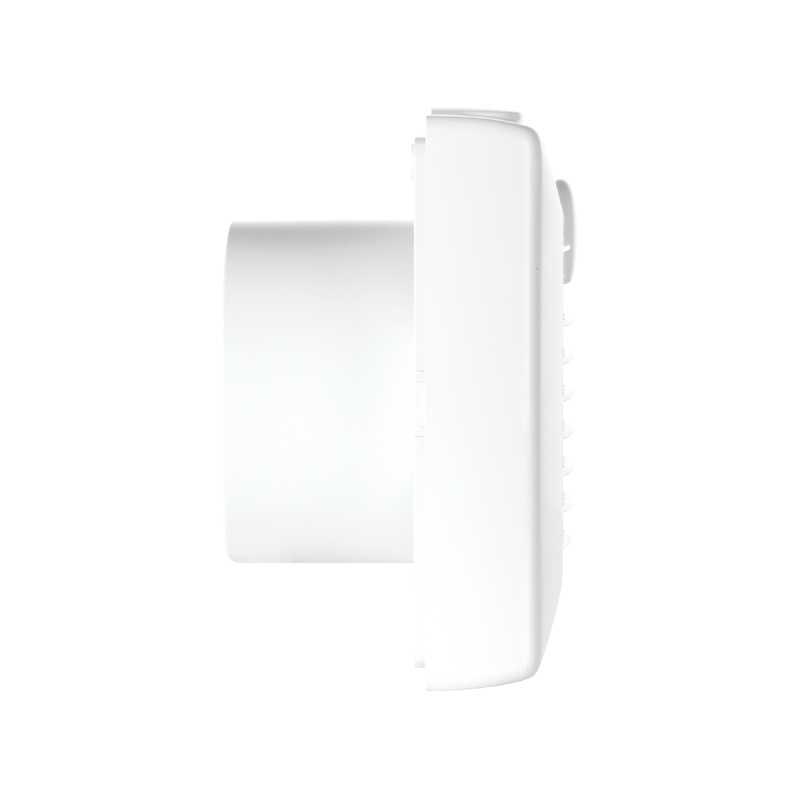

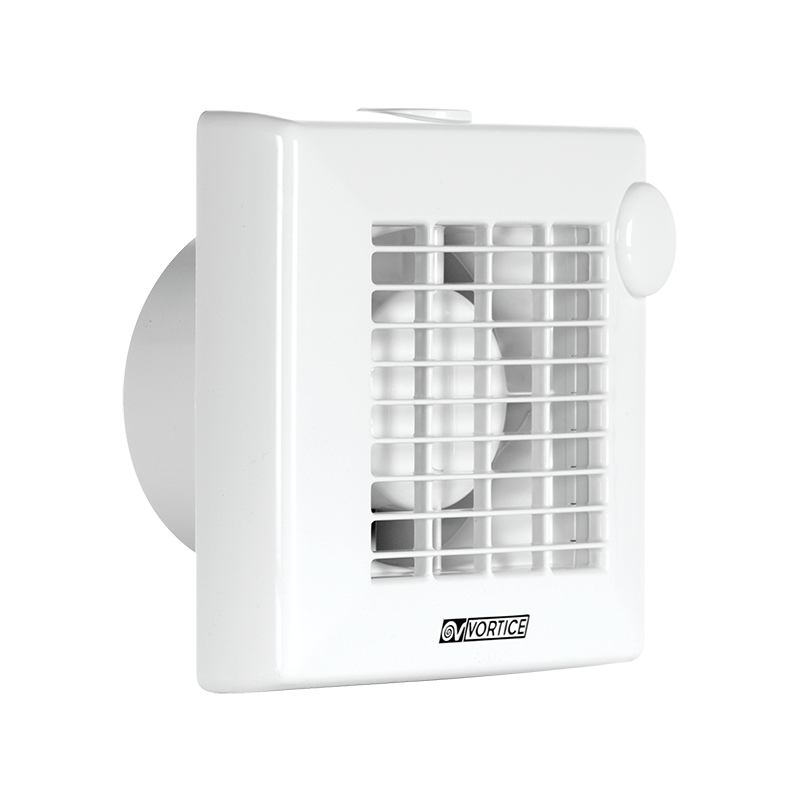

Air and odor Axial fan Vortice model M 150/6", wall application, white colour, Rated diameter 150 mm.
€130.53
Items Available: 36
: 4
Frequently bought together
Characteristic:
- UV resistant plastic resin construction resistant to ageing due to sun exposure ("UV resistant")
- Rated diameter 150mm

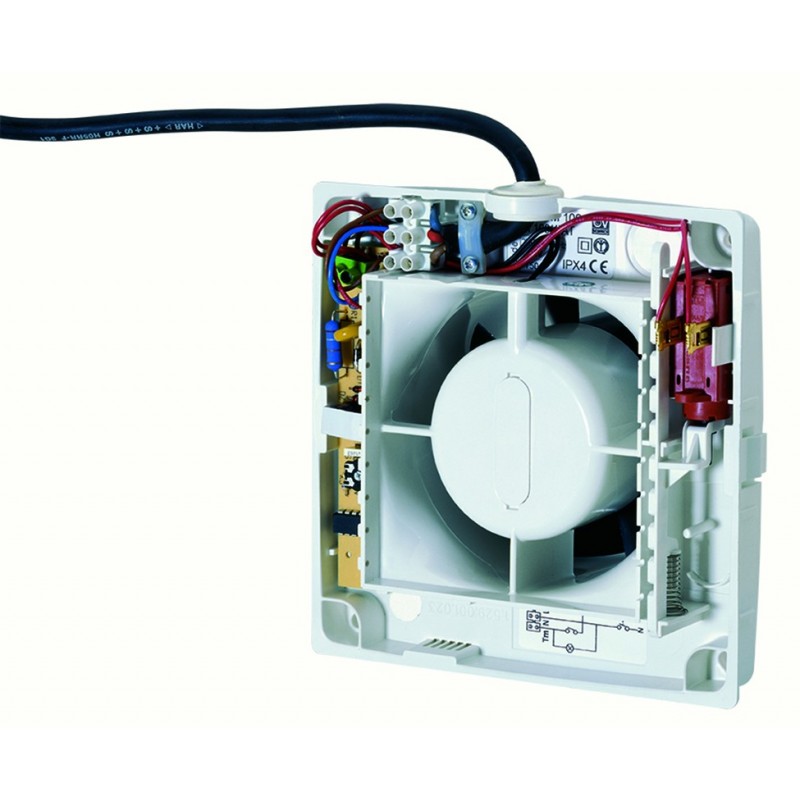

- Thermally protected motor with shaft on self-lubricating bushings, combined with a helical impeller in thermoplastic material with wing profile blades
- Maximum flow rate 335 m3/h
- Safety and performance certified IMQ and IMQ PERFORMANCE
- Speed controllable by Vortex regulator.
Technical data sheet:
- Current consumption max (A) 0.15
- Rated Duct Diameter (mm) 160
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation Class II
- Ø Discharge (mm) 156
- Weight (Kg) 1,1
- Power consumption max (W) 30
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Max flow rate (m³/h) 335
- Max pressure (mmH2O) 6
- Max pressure (Pa) 59
- Sound Pressure Lp [dB (A)] 3m 46
Notice très succinte cependant mais bonne qualité de l'appareil
Efficace ma rumoroso, necessario regolatore velocità.
Conoscevo il prodotto per la sua struttura ed efficacia. Buon prodotto.
Data sheet
- Diameter: 150
- Type: Axial fans
