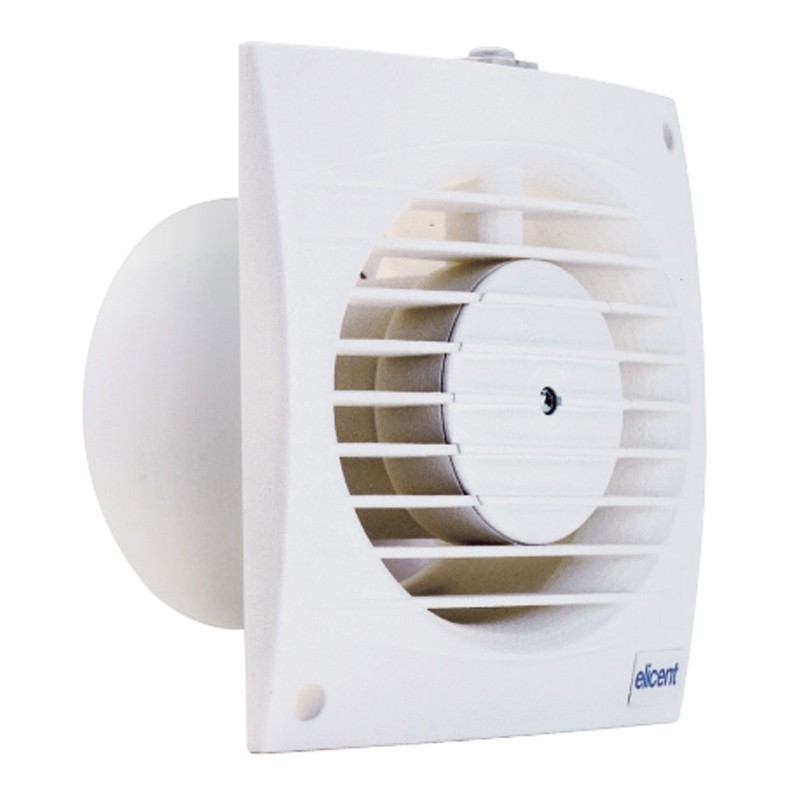

Elicent MiniStyle axial fan Diameter 100 white
ELI 2MI4000
8016510022724
The Elicent MiniStyle axial fan, is designed for direct air extraction in small rooms such as bathrooms, kitchens, utility rooms and laundries. Its compact and essential design makes it ideal for domestic and commercial environments, ensuring effective and quiet air extraction:
-
Applications: Bathrooms, toilets, utility rooms, kitchens, basements, laundries
-
Installation: Wall or ceiling mounted, quick and easy
-
Motor: 230V induction type, 50 Hz frequency with thermal protection - Long Life self-lubricating bushings for durability and quietness
-
Materials: Made of high-quality antistatic technopolymers
-
Design: Modern, ultra-flat and compact. Activation: Via light switch or separate
€22.20
Items Available: 416
: 63
Elicent MiniStyle axial fan Diameter 100 white
Advantages
- Guaranteed efficiency: Flow rate of 90 m³/h for optimal ventilation.
- Quiet and durable: Motor with self-lubricating bushings and sound pressure of only 39 dB(A).
- Versatile installation: Wall or ceiling mounting in a few easy steps.
- Modern design: Ultra-flat and compact, suitable for any environment.
- Safe and compliant: Built in double insulation, does not require grounding
Applications
- Ventilation of bathrooms and toilets.
- Extractor fan for kitchens and laundries.
- Odor reduction in wine cellars and storage rooms.
- Use in domestic and commercial environments.
Technical Characteristics.
| Specifications | Details |
|---|---|
| Voltage | 230V |
| Max flow rate | 90 m³/h |
| Pressure Max | 26 Pa |
| Power | 14 Watts |
| Sound Pressure (at 3 meters) | 39 dB (A) |
| Degree of Protection | IPX2 |
| Maximum Operating Temperature | 40 degrees |
| Model | Extra-flat: on/off via light switch or separate |
| Compliance |
|
Comprei para substituir existentes avariados iguais que duraram 12 anos
mi è piaciuto la velocità e la qualità dei prodotti
Buono e economico. servizio venditore perfetto
Consumo basso solo 14 w e un potere di aspirazione buono.
Data sheet
- Diameter: 100
- Type: Axial fans
