Elicent Axial fan with Timer Diameter ECOLINE 100 2MU6003
ELI 2MU6003
8016510018314

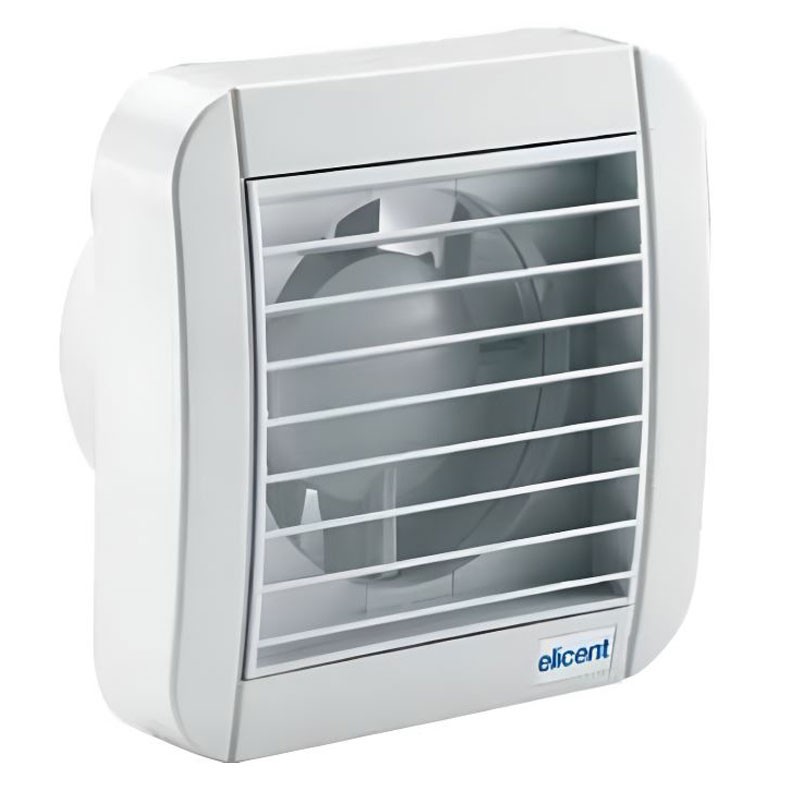

Air and odour extractor fan Elicent model ECOLINE 100 GF helical direct expulsion with electronic timer, air extraction in small and medium environments such as: bathrooms, toilets, storage rooms, kitchens, cellars, laundries, etc...
Elicent Axial fan with Timer Diameter ECOLINE 100 2MU6003
€59.39
€59.39
Tax included
Tax included
Pay in installments with Klarna
Items Available: 9
Particularly suitable in environments where splash water protection is required as indicated in current standards (CEI 64-8). The ECO LINE series appliances are helical vacuum cleaners suitable for direct ejection or in short ducts.
Features:
- Helical exhaust fans for direct external ejection
- Wall or ceiling installation
- Accessories for glass installation
- Available with fixed, gravity or automatic grids
- Protected against splashing water (IPX4)
- Complies with CEI EN 60335-2-80, B.T. 2006/95/EC, EMC 2004/108/EC.
- Made in double insulation, they do not need to be grounded.
- 230V-50 Hz induction motor with thermal protection suitable for continuous duty.
- Self-lubricating Long Life bushings that ensure long life and constant silence over time
- Structure made of high quality antistatic technopolymers
- The front part, more subject to dust accumulation, is easily removable and washable thanks to the total absence of electrical parts.
- Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/UE
Technical specifications:
- Fixed Grid
- Max flow rate 90 cubic meters/h
- Pressure Max 26 Pa
- Power 11 W
- Sound pressure (at 3 meters) 39 db (A)
- IPX4 degree of protection
- Version with adjustable electronic timer that delays the switch-off of the appliance from 3 to 25 minutes.
Data sheet
- Diameter:
- 100
- Type:
- Axial fans
- Functions:
- Timer
