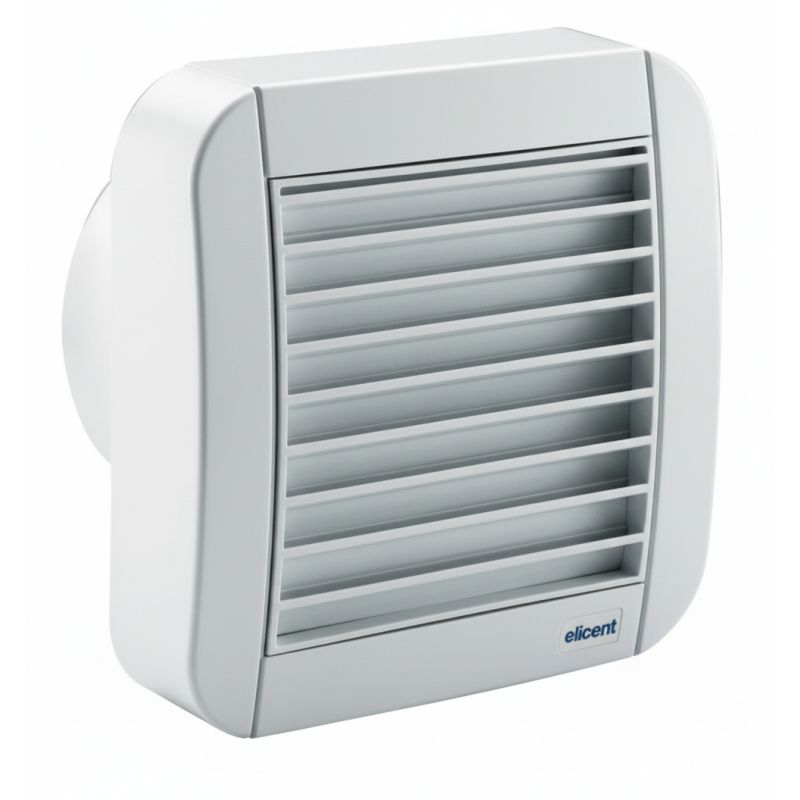

Elicent Axial fan with fins diameter ECOLINE 100 2MU6001


ELI 2MU6001 8016510018291

Air and odour extractor fan Elicent model ECO LINE 100 GG helical direct expulsion with fins that can be opened and closed by gravity, for air extraction in small and medium environments such as: bathrooms, toilets, closets, kitchens, cellars, laundries, etc.

Request info about this product

Elicent Axial fan with fins diameter ECOLINE 100 2MU6001

€43.84
€43.84

Elicent Axial fan with fins diameter ECOLINE 100 2MU6001

€43.84
Tax included
klarna Pay in installments with Klarna
Items Available: 7
qty

Elicent Axial fan with fins diameter ECOLINE 100 2MU6001

€43.84

Buy it within and receive it from Wednesday, 6 March
Two-year warranty
Secure Payment
Easy return within 14 days

Particularly suitable in environments where splash water protection is required as indicated in current standards (CEI 64-8). The ECO LINE series appliances are helical vacuum cleaners suitable for direct ejection or in short ducts.



Features:

  • Helical exhaust fans for direct external ejection
  • Wall or ceiling installation
  • Accessories for glass installation
  • Available with fixed, gravity or automatic grids
  • Protected against splash water (IPX4)
  • Complies with CEI EN 60335-2-80, B.T. 2006/95/EC, EMC 2004/108/EC.
  • Made of double insulation, they do not require earthing
  • 230V-50 Hz induction motor with thermal protection suitable for continuous duty
  • Self-lubricating Long Life bushings that ensure long life and constant silence over time
  • Structure made of high quality antistatic technopolymers
  • The front part, more subject to dust accumulation, is easily removable and washable thanks to the total absence of electrical parts.
  • Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU standards.

Technical specifications:

  • Gravity Grid
  • Max flow rate 80 cubic meters/h
  • Pressure Max 26 Pa
  • Power 11 W
  • Sound pressure (at 3 meters) 39 db (A)
  • IPX4 degree of protection
  • Activation / switching off via light switch or separate

Data sheet

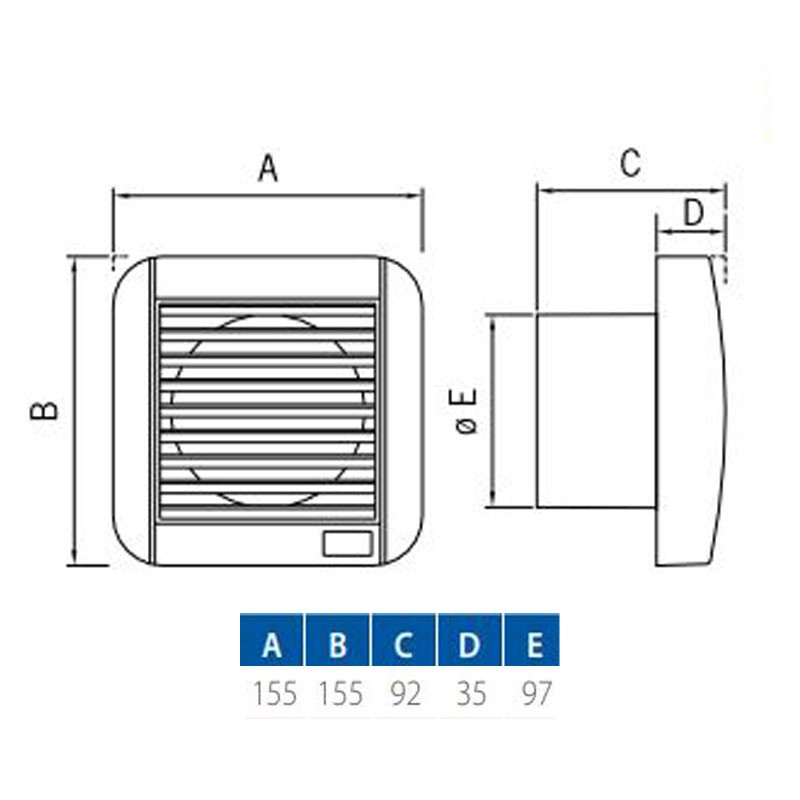

Diameter:
100
Type:
Axial fans
Functions:
Flaps automatic
