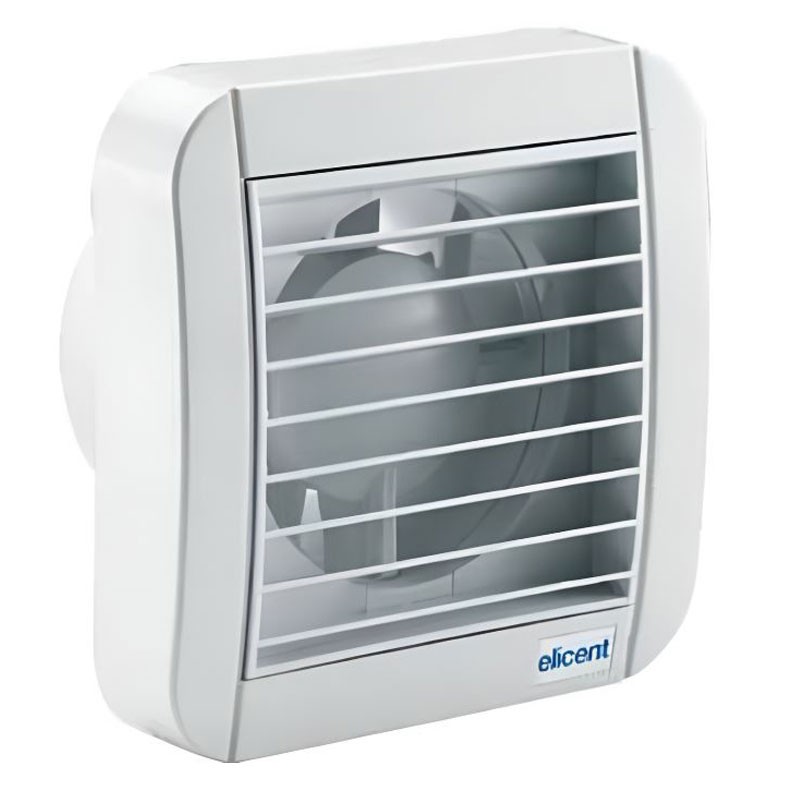

Particularly suitable in environments where splash water protection is required as indicated in current standards (CEI 64-8). The ECO LINE series appliances are helical vacuum cleaners suitable for direct ejection or in short ducts.



Features:

• Helical exhaust fans for direct external ejection
• Wall or ceiling installation
• Accessories for glass installation
• Available with fixed, gravity or automatic grids
• Protected against splashing water (IPX4)
• Complies with CEI EN 60335-2-80, B.T. 2006/95/EC, EMC 2004/108/EC.
• Made of double insulation, they do not require earthing
• 230V-50 Hz induction motor with thermal protection suitable for continuous duty
• Self-lubricating Long Life bushings that ensure durability and constant silence over time
• Structure made of high quality antistatic technopolymers
• The front part, more subject to dust accumulation, is easily removable and washable thanks to the total absence of electrical parts.
• Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/UE

Technical specifications:

• Fixed Grid
• Max. flow rate 170 cubic meters/h
• Pressure Max 39 Pa
• Power 15 W
• Sound pressure (at 3 meters) 42 db (A)
• IPX4 degree of protection
• Activation / switching off via light switch or separate.
