Elicent Automatic Axial fan VITRO 9/230 2VI0972
ELI 2VI0972
8016510008834

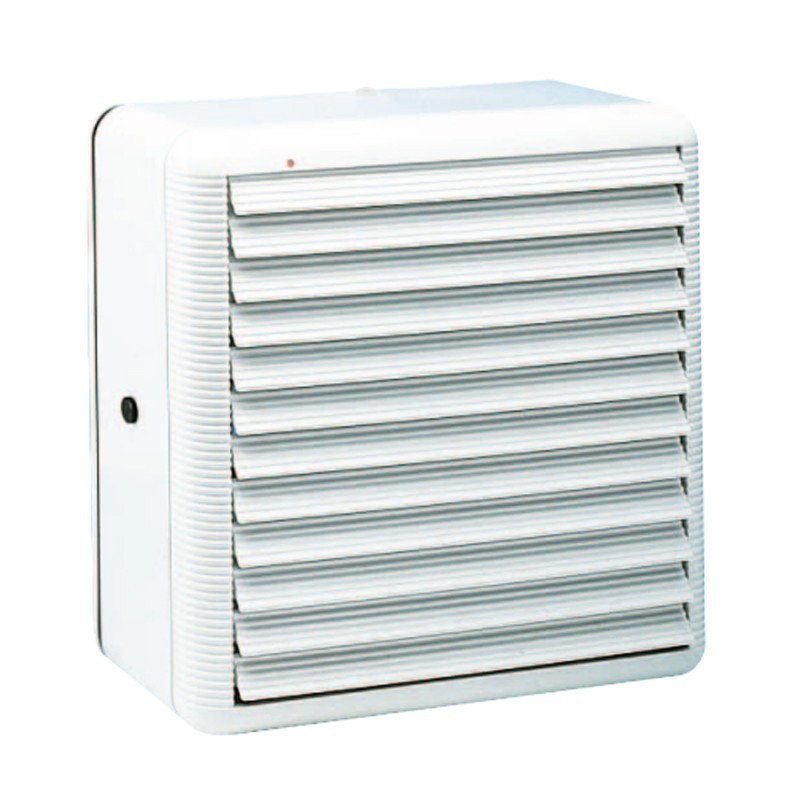

Air and odour extractor fan Elicent model VITRO 9/230 Automatic Reversible for mounting on glass with electric fins and reversible function (it can suck in air but also feed it into the desired environment).
€223.03
Items Available: 5
Air extraction in medium and large environments such as: public places, shops, offices, surgeries, schools, gaming rooms, bars, restaurants, canteens, kitchens, warehouses, laboratories, gyms, locker rooms, etc..
Features:
- Helical exhaust fans for direct external ejection
- Glass installation
- Accessories for double glazing, double window and wall installation
- IPX4 protection (external part)
- Made of double insulation, they do not require earthing
- Motor with Long Life bushings 230V-50 Hz with thermal protection suitable for continuous duty
- Easily removable and washable front
- Equipped with external rain grill
- Structure made of high quality antistatic technopolymers
- The vacuum cleaners can be controlled by our regulators which are supplied separately.
- Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/UE
Technical characteristics:
- Max. capacity Extraction/injection 700 / 400
- Pressure Max 55 Pa
- Power 46 W
- Sound Pressure (at 3 meters) 50 db (A)
- Diameters 254÷258
- Version with electric opening of the front flaps
Data sheet
- Diameter: 255-260
- Type: Axial fans
- Functions: Flaps automatic
