Elicent Axial fan Diameter E-STYLE 120 P E-STILE


ELI 2MU7269 8016510026869

Air and odour extractor fan Elicent model E-STYLE 120 P helical extra-flat direct expulsion, air extraction in small and medium environments such as: bathrooms, toilets, closets, kitchens, wine cellars, laundries, etc.

Request info about this product

Elicent Axial fan Diameter E-STYLE 120 P E-STILE

€51.03
€51.03

Elicent Axial fan Diameter E-STYLE 120 P E-STILE

€51.03
Tax included
klarna Pay in installments with Klarna
Items Available: 16
qty

Elicent Axial fan Diameter E-STYLE 120 P E-STILE

€51.03

Buy it within and receive it from Wednesday, 6 March
Two-year warranty
Secure Payment
Easy return within 14 days

Particularly suitable in environments where splash water protection is required as indicated in CEI 64/8. The E-STYLE series are helical vacuum cleaners suitable for direct ejection or in short ducts.



Features:

  • Helical vacuum cleaners for direct external ejection
  • Wall or ceiling installation

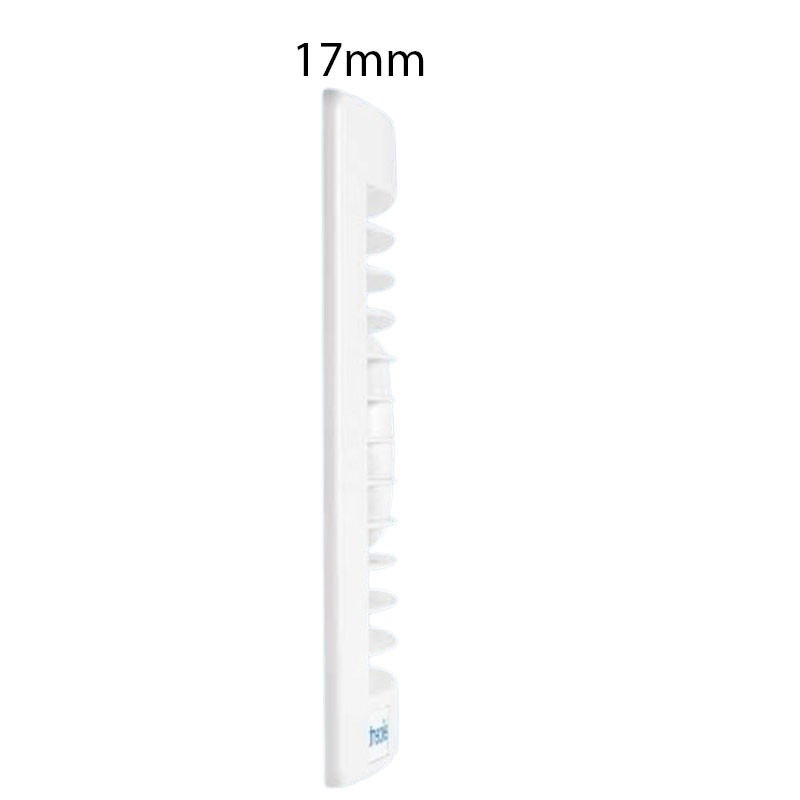

  • Extra flat version: 17 mm front projection
  • Protected against splash water (IPX4)
  • 230V-50Hz induction motor with thermal protection suitable for continuous duty
  • Self-lubricating Long Life bushings that ensure long life and constant silence over time
  • Structure made of high quality antistatic technopolymers
  • The front part, more subject to dust accumulation, is easily removable and washable thanks to the total absence of electrical parts.
  • Complete with non-return damper that prevents the return of air (ø 100, 120, 150 mm): this component can be removed in case of installation with external gravity grill
  • Made of double insulation, they do not require earthing
  • Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU.

Technical specifications:

  • Max flow rate 165 cubic meters/h
  • Pressure Max 54 Pa
  • Power 15 W
  • Sound Pressure (at 3 meters) 36.7 db (A)
  • IPX4 degree of protection
  • Activation / switching off via light switch or separate

Data sheet

Diameter:
120
Type:
Axial fans
