Vortice Heat recovery unit HRW 60 Wifi Mono Evo HCS 0000012432
VOR 0000012432
8010300124322

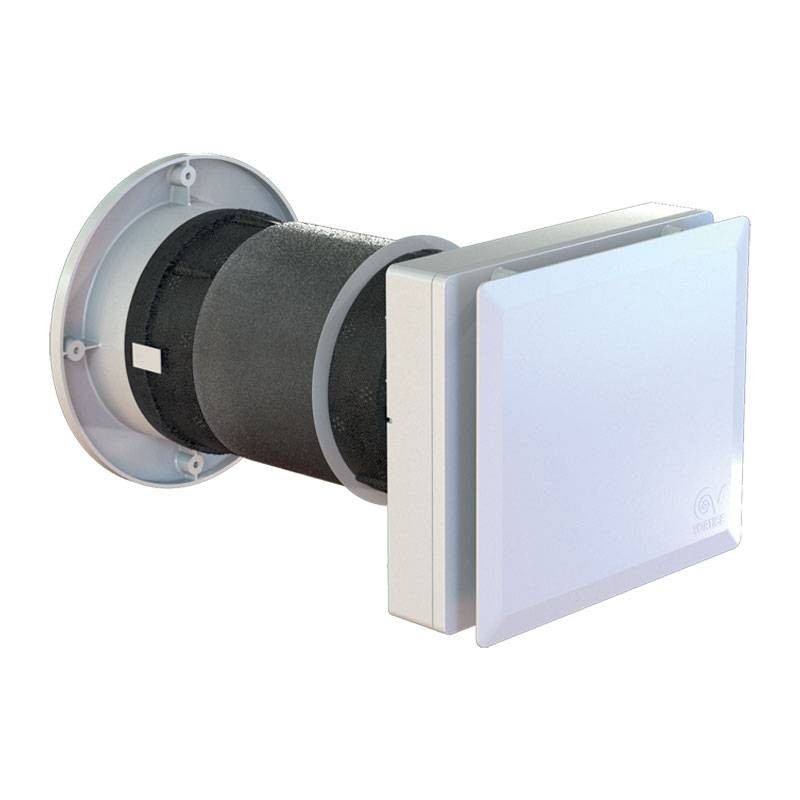

Decentralized heat recovery unit Vortice HRW 60 Mono Evo HCS Wifi is the ideal solution for improving air quality in residential and commercial environments with optimal energy efficiency. Designed to ensure constant air exchange, reduce humidity and prevent mold growth, it is a valuable ally in controlled ventilation with heat recovery. Compact, quiet and intelligent, this device offers high performance and great ease of use, with the following features:
-
Diameter: 160 mm
-
Ceramic exchanger with up to 90% efficiency
-
EC motor fan with 5 speeds
-
Built-in humidity sensor
-
Automatic, boost, night, extraction and input modes
-
Wi-Fi module for local mesh network, with coordinated and consistent communication between devices
-
Remote control for remote control of functions
-
Anti-insect system and grill that can also be installed from the inside
-
Power consumption only 8W
-
Quiet, 14.3 dB(A) in Night mode
€285.48
Items Available: 2
: 1
Vortice heat recovery for home comfort
Designed to optimize indoor comfort in a smart way. Its ceramic heat exchanger with hexagonal cells stores the heat from the extracted air and transfers it to the injected air, providing up to 90% efficiency at low speed. The alternation of the extract and supply phases is managed by a high-efficiency brushless EC motor fan with five adjustable modes to suit every housing requirement.
Automatic operation and intelligent modes
The recuperator includes five selectable operating modes:
-
Cyclic heat recovery
-
Extraction only
-
Feed-in only
-
Automatic (based on humidity level detected)
- Night (ultra-quiet operation in the dark)
Automatic mode uses the humidity probe to autonomously adjust ventilation, while Night mode ensures almost undetectable operation during night hours, improving acoustic comfort.
Comprehensive and intuitive remote control
The included remote control allows you to turn the unit on/off, change speeds and set the humidity threshold (60%, 75% or 90%) that activates Boost mode. It also provides alerts on saturated filters and enables Night mode with a simple touch.
Installation flexibility and easy maintenance
Thanks to the standard 160 mm diameter, it can be installed very easily even in existing walls. The external rubber grid, which can be applied from the inside, allows installation without scaffolding. The system includes anti-insect mesh, washable filters and a quick-close mechanism to prevent unwanted air leakage when the unit is not active.
Recommended applications
-
Residential dwellings
-
Apartments under renovation
-
Humid rooms (bathrooms, kitchens)
-
Mold-prone environments
-
Offices and work environments
Technical characteristics Vortice heat recovery unit
Power Supply and Electrical Performance
| Power supply voltage | 220-240 V / 50-60 Hz |
| Maximum power consumption | 8 W |
| Max current consumption | 0,08 A |
| Insulation class | II |
| IP protection | IPX4 |
Ventilation Performance
| Duct diameter | 160 mm |
| Recovery efficiency | Up to 90% |
| Air flow rate | 10 ÷ 60 m³/h (5 levels) |
| Sound pressure Lp (3 m) | 14.3 dB(A) (Night) - 44.6 dB(A) (Boost) |
| Static pressure | Up to 120 Pa |
Filtration
| Filters | ISOCoarse 65% + washable pre-filter |
Structure and Environmental Conditions
| Weight | 3.3 kg |
| Max. ambient temperature | +50°C |
| Min temperature (storage) | -25°C |
| Structure material | Shockproof and anti-UV plastic |
Motor and Control
| Motor type | EC brushless |
| Control | Remote control included |
There are no reviews
Data sheet
- Diameter: 160
- Type: Heat recovery units
