Humidity control is of the smart plus type, such that when the set threshold is exceeded, the appliance gradually increases the speed of operation in push-pull mode in proportion to the humidity detected. A persistent high concentration of moisture, switches the appliance to forced expulsion only until the moisture is dispersed.

Strengths:

• Decentralized air extraction and supply unit with ultra-high efficiency heat recovery with thermal efficiency up to 90%.
• Ideal for residential applications and environments where constant thermal comfort must be maintained in both summer and winter seasons
• Suitable for installation in any environment, ideal in noble rooms such as bedrooms and living rooms
• Paired installation in single-room or two separate rooms

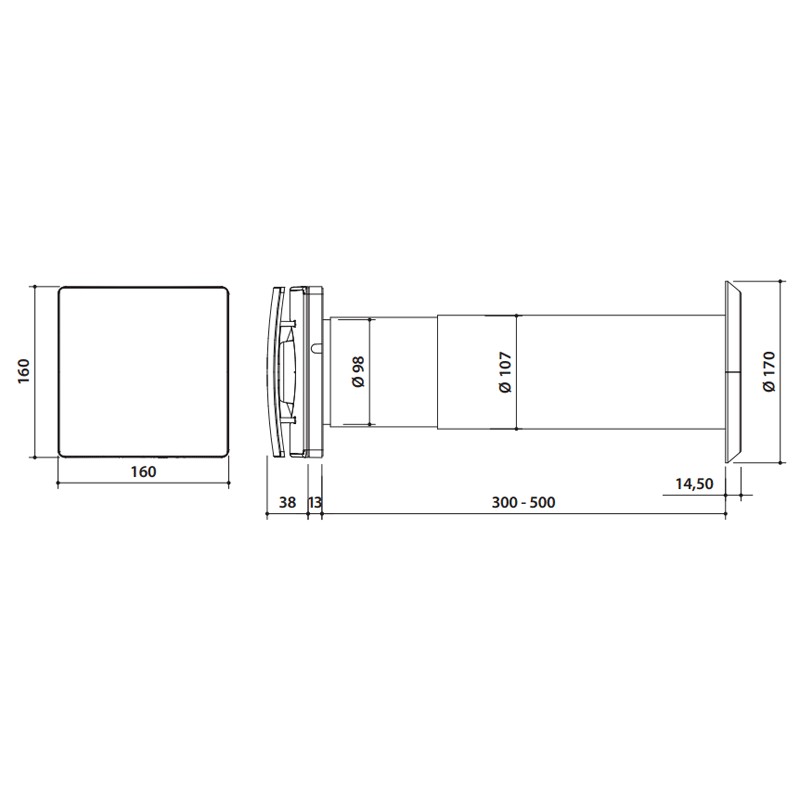

• Wall installation with direct expulsion on walls 300 to 500 mm thick (adaptable to other wall thicknesses from 220 to 1,000 mm: see Dimensions section)
• Suitable for conveying air up to a maximum temperature of 50°C



Features:

• Extremely compact flush-to-wall structure made of high quality and durable plastic material
• High-efficiency, alternating-flow ceramic heat exchanger
• Perfect thermo-acoustic insulation and no condensation problem
• Equipped with Class G3 polypropylene filters for filtering both supply and exhaust air before passing through the exchanger. Easily removable filters for replacement or washing
• Equipped with free-cooling and antifreeze function
• Equipped with EC motor drive
• Complies with EN 60335-2-80, B.T. 2014/35/EU, EMC 2014/30/EU
• IPX4 degree of protection
• CE marking



Principle of operation:

• REC Duo 100 is based on the so-called push pull, or alternating flow, operating principle. It is equipped with a ceramic accumulator-type heat exchanger that stores the heat of the extracted air in the extraction cycle (pull) and then releases it to the injected air during the input cycle (push)
• VMC systems effectively help prevent the formation of mold on walls when this is caused by insufficient natural ventilation



Using the remote control supplied with the REC Duo 100 PLUS RC model, you can adjust the speed and activate the following operating modes:

• 0 - On/off
• Push-pull operation mode 24 h operation, at the set speed. Automatic setting: alternating flow operation
• Speed 1 Low speed setting
• Speed 2 High speed setting
• 4 Timed Boost Speed (maximum speed) with timer (extraction only).
• Night function Freezes the operation mode for 8 hours at the set minimum speed for maximum acoustic comfort. To exit the mode before the 8 hours are up, press any key (except 0)
• Flow control The units operate either all-extract or all-input. Pressing once: eject mode. Pressing a second time: input mode.
• Free-cooling mode: air exchange without heat recovery No flow reversal. Pressing once: flow reversal stops, with the direction of rotation active at that time. Pressing a second time: all units, reverse flow and maintain the direction of rotation so set



Performance:

• Wall hole diameter 100mm
• Wall thickness (Min-Max) 300-500mm
• Min/Max flow rate only extraction 12 / 30 / 40 m3/h
• Voltage at 50 Hz 230V
• Min/Max motor power extraction only 1 / 2.8 / 3.5 W
• Sound data Lp 15/29 dB(A).
