Mitsubishi Lossnay wall-mounted heat recovery unit VL-100EU5-E
MTS 267003
4902901712272
The Mitsubishi Lossnay VL-100EU5-E heat recovery unit is a decentralized controlled mechanical ventilation (MCV) system designed to improve air quality in residential spaces up to 80 m². With a heat exchange efficiency of up to 80%, it ensures optimal air exchange without energy loss, reducing the accumulation of CO2 and pollutants.
-
Controlled mechanical ventilation (VMC) for continuous air renewal
-
Lossnay heat exchanger with up to 80% efficiency
-
Ultra quiet operation, only 25 dBA
-
Class G3 filter for removal of dust and impurities
-
2 connection tubes Ø 75mm, length 550mm included
-
Optional PM10 70% filter available for advanced purification
-
Adjustable baffle for optimal air distribution
-
Modern, compact design with glossy white flat panel
-
Simplified installation, no need for false ceiling.
€406.87
Items Available: 11
: 10
Mitsubishi Lossnay Heat Recovery Unit: Improve Air Quality with Controlled Ventilation
In modern buildings, where thermal insulation is high, lack of natural air exchange can cause accumulation of CO2, moisture and pollutants. The Mitsubishi Lossnay VL-100EU5-E system ensures continuous supply of clean air and effective exhaust of stale air, helping to improve living comfort.

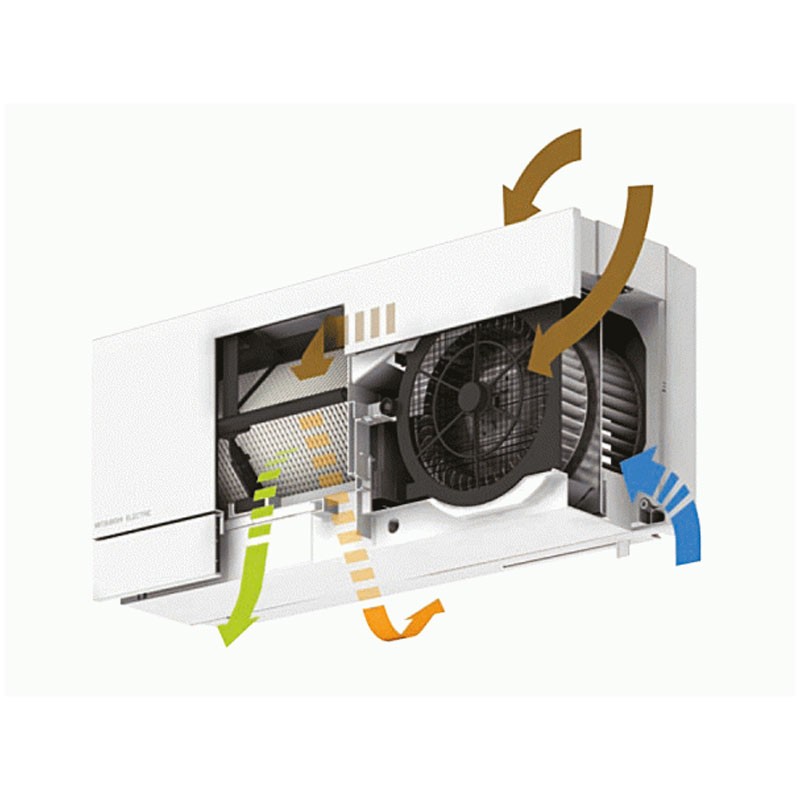

The units allow fresh air in and stale air out simultaneously, thus ensuring a high level of indoor air quality. The unique built-in Lossnay heat exchanger, consisting of a special paper structure, means that the intake and exhaust air flows are not mixed, ensuring that only fresh air is brought in while allowing effective heat and humidity exchange.
Unlike more sophisticated systems that require a ceiling installation and a network of ducts traveling to different rooms, VL-100 installation is very simple: two holes in the outer wall are all that is needed to pass the ducts through, which simultaneously supply and exhaust air, exchanging valuable heat.
Applications, Quietness and Comfort of the Mitsubishi Lossnay
-
The Lossnay VL-100EU5-E is Ideal for residential environments with floor areas up to 80m2 and offers maximum comfort due to its adjustable baffle, optimal air distribution, and maximum quietness with just 25dB
-

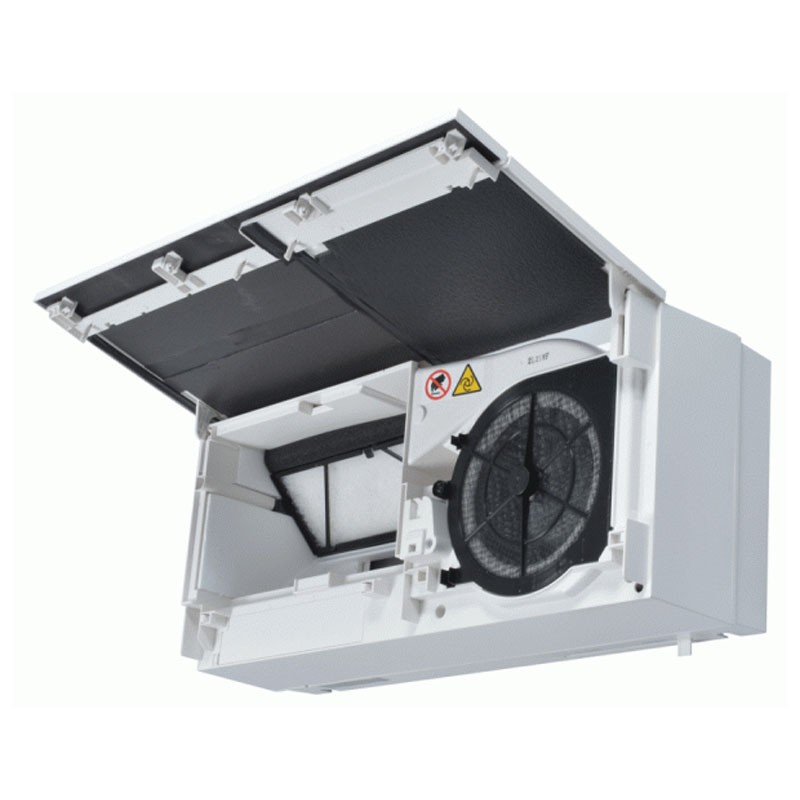

The presence of a 35% Coarse filter (G3 according to EN779) or a filter (optional not integrated as standard) and PM10 70% (M6 according to EN779) allows the removal of fine dust purifying the air and returning a healthy environment. High heat exchange efficiency is up to 80%.
Elegance and easy installation of Mitsubishi heat recovery unit

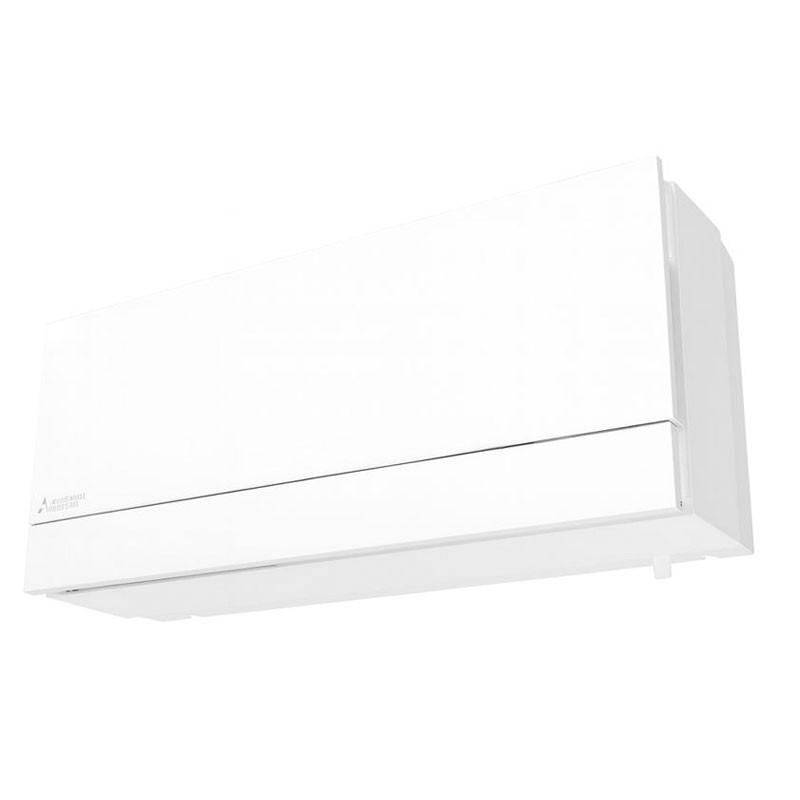

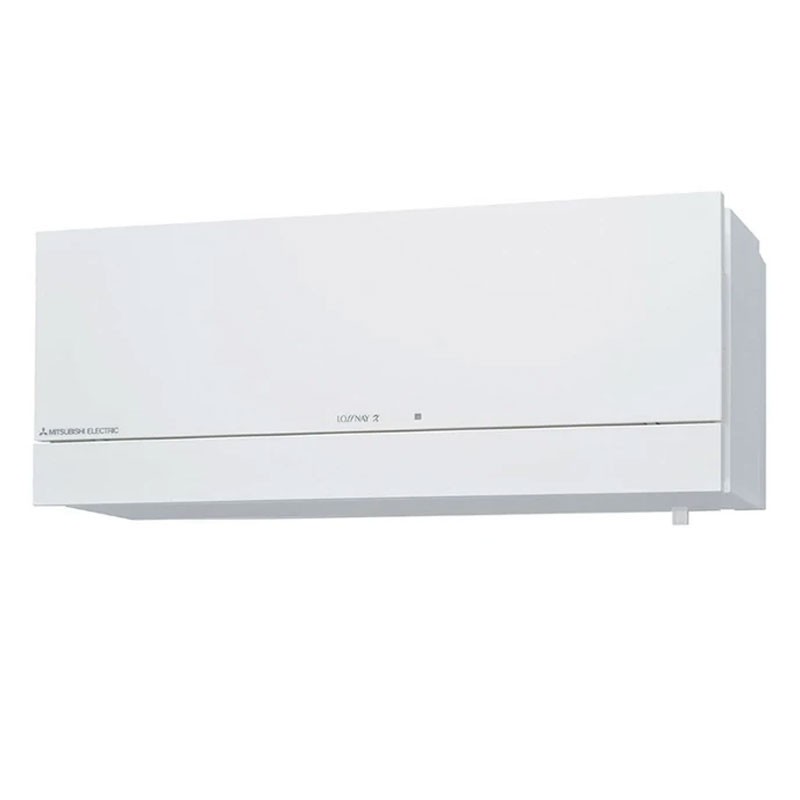

Thanks to the aesthetic refinement provided by the sleek, modern, glossy white flat panel and the compact size to ensure minimum footprint, the recuperator perfectly matches any home environment. Installation is simple and intuitive: just two 85 mm diameter holes and no invasive work or false ceilings are needed.
Technical specifications of the Mitsubishi recuperator
| Feature | Description |
|---|---|
| Power supply | 220-240 V / single phase / 50 Hz |
| Specific energy consumption class (S.E.C.) | B (-28,8) |
| Max air flow rate | 100 m³/h |
| Max sound power | 52 dB(A) |
| Weight | 7.5 kg |
| Dimensions (WxHxD) | 620x265x200 mm |
| Fan speed | High - Low |
| Power consumption | High: 31 W Low: 15 W |
| Air volume treated | High: 105 m³/h Low: 60 m³/h |
| Sensible heat exchange efficiency | High: 73% Low: 80% |
| Standard filter EN 779 (ISO 16890) | G3 (Coarse 35%) |
| Sound pressure level | High: 37 dB(A) Low: 25 dB(A) |
L'apparecchio è efficace, ma è da sapere che la potenza non è regolabile, l'apparecchio funziona quindi a pieno regime ed è piuttosto rumoroso. Per rendere la potenza regolabile bisogna aggiungere un regolatore (non fornito).
Facile montaggio, buona estetica e funzionalità. Manca secondo me un variatore della velocità della ventola.
Data sheet
- Type: Heat recovery units
