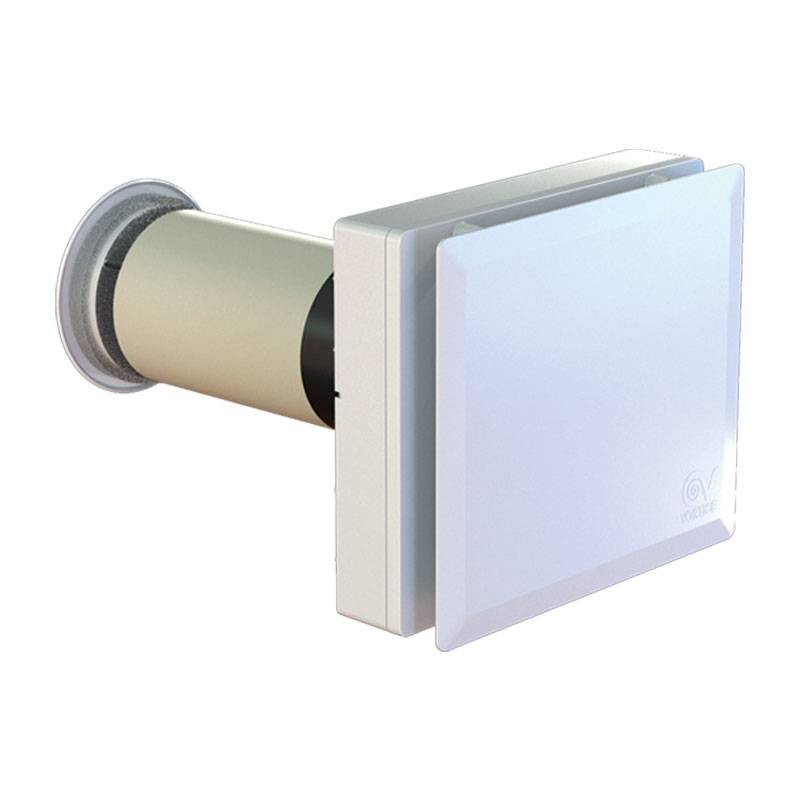

Vortice HRW 30 Wifi Mono Evo HCS heat recovery unit 0000012443
VOR 0000012443
8010300124438
Vortice HRW 30 Mono Evo HCS WiFi decentralized heat recovery unit designed for energy-efficient air exchange in residential and commercial environments. Equipped with a built-in Wi-Fi module, it enables mesh networking between multiple units for balanced and synchronized ventilation without the need for additional wiring. It is the ideal solution for rooms prone to damp or mold, even in renovation settings, with the following features:
-
Diameter: 100 mm
-
Built-in Wi-Fi module for communication between units in mesh network
-
High-efficiency ceramic heat exchanger (up to 90%)
-
5-speed EC motor with low consumption (max 5 W)
-
Integrated humidity probe
-
Remote control for full remote control
-
4 operation modes + automatic Night mode
-
Extremely quiet 19.1 dB(A) at 3 m at minimum speed
-
Anti-insect system and external grille installable from inside
€307.44
Items Available: 2
: 1
Coordinated Vortice heat recovery unit with Wi-Fi connection
The strength of the HRW 30 Mono Evo HCS is the built-in Wi-Fi module, which enables direct communication between multiple devices, eliminating the need for wiring. Thanks to the mesh network, the units exchange information and work in synergy, automatically adjusting flows for optimal efficiency. This allows perfect air balance between supply and exhaust, improving living comfort and reducing energy consumption.
Automatic humidity control and 5 operating modes
The recuperator integrates a humidity sensor that automatically manages motor speeds to counteract the formation of condensation and mold. The remote control allows selection of operating modes:
-
Cyclic heat recovery
-
Extraction only
-
Input only
-
Automatic, with control via HR probe
-
Night: in the dark it automatically reduces the speed to minimum
You can also set the humidity level (60%, 75%, 90%) that activates the Boost mode.
Quietness and acoustic comfort
Perfect for bedrooms, bathrooms and quiet rooms, the VORT HRW 30 provides a very low noise level: only 19.1 dB(A) at minimum speed. Even at maximum speed it does not exceed 49.2 dB(A) at 3 meters, always maintaining a high level of acoustic comfort.
Compact design and easy installation
With a duct diameter of only 100 mm and a lightweight 3.1 kg body, the VORT HRW 30 is ideal even for small spaces. The external rubber grille can be inserted directly from inside, without scaffolding or external access. Washable filters, anti-insect system, and quick mechanical discharge closure complete a functional and durable design.
Recommended applications
-
Apartments and residences undergoing renovation
-
Rooms with mold and condensation problems
-
Bathrooms, kitchens, bedrooms
-
Offices, meeting rooms and commercial spaces
-
Energy-efficient buildings
Technical Specifications Vortice heat recovery unit
Power Supply and Electrical Performance
| Supply voltage | 220-240 V / 50-60 Hz |
| Max power consumption | 5 W |
| Max current consumption | 0,04 A |
| Insulation class | II |
| Degree of protection | IPX4 |
Ventilation Performance
| Recovery efficiency | Up to 90% |
| Air flow rate | 38 m³/h (max) - 6 m³/h (min) |
| Sound pressure Lp at 3 m | 49.2 dB(A) (max) - 32 dB(A) (med) - 19.1 dB(A) (min) |
| Max pressure | 130 Pa (max) - 10 Pa (min) |
Structure and Environmental Conditions

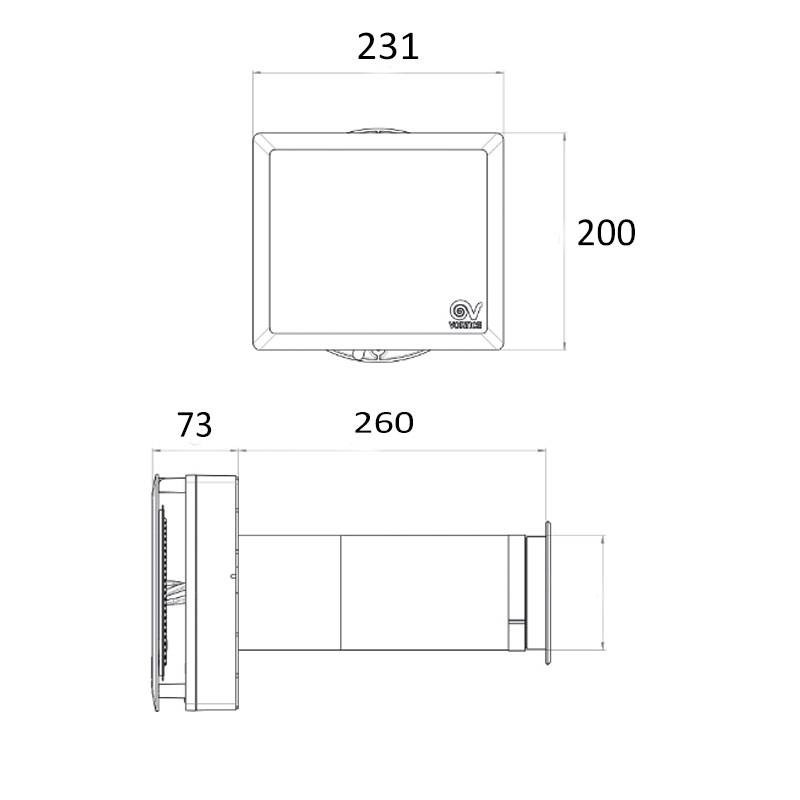

| Duct diameter | 100 mm |
| Net weight | 3.1 kg |
| Max. ambient temperature | +50°C |
| Structure material | Shockproof and anti-UV plastic |
Controls and Modes
| Remote control | Remote control + Wi-Fi module |
| Operating modes | 5 (recovery, extraction, input, automatic, night) |
Filtration
| Filters | ISOCoarse 65% + pre-filter |
There are no reviews
Data sheet
- Diameter: 100
- Type: Heat recovery units
