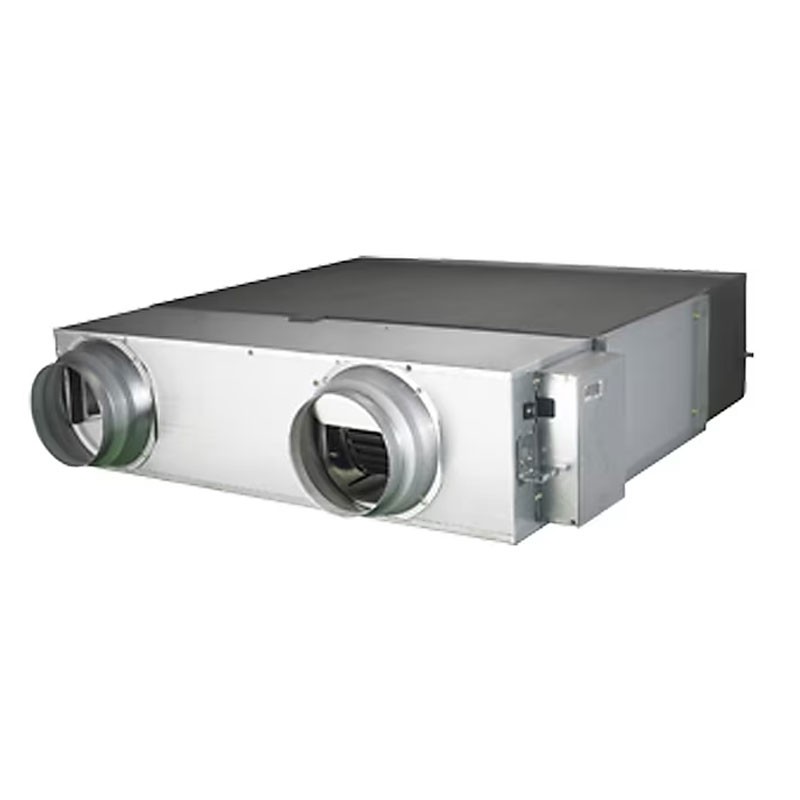

Samsung ERV heat recovery unit air flow rate 256/350 m³/h
SMG AN035JSKLKN/EU
8806086769952
The Samsung ERV heat recovery unit ensures optimal air exchange with high energy efficiency, improving indoor air quality without heat loss. With an air flow rate of 256/350 m³/h, it maintains environmental comfort and reduces consumption, thanks to the Inverter motor and intelligent temperature management system.
Optional wired control to be purchased separately MWR-VH12N.
€1,094.34
Items Available: 2
: 1
Frequently bought together
Samsung ERV Heat Recovery Unit Efficiency and Air Quality
ERV heat recovery units provide the necessary air changes to the environment with high efficiency, temperature and humidity control.
Air Quality and Pollutant Reduction
Indoor pollutants can cause allergies and respiratory problems. Samsung's ERV recuperator, with its class F7 filter, reduces the presence of fine dust and allergens, improving air quality and providing a healthier environment.
Energy Efficiency and Savings on Consumption
Opening windows for air exchange results in high heat loss, leading to increased air conditioning consumption. The ERV heat recovery unit ensures optimal air exchange, yet keeps the indoor temperature stable, thus reducing energy waste.
In addition, the automatic energy-saving mode adjusts operation according to outdoor temperature, optimizing consumption without compromising efficiency.
Intelligent System for Every Climate
Intelligent temperature control allows the ERV to adapt to outdoor conditions, preventing frost formation on the heat exchanger down to -15°C, without the need for auxiliary heating elements. This further reduces operating and installation costs.
Flexible Installation and Slim Design
The Samsung ERV heat recovery unit is designed for maximum installation versatility:
- It can be mounted horizontally, vertically or diagonally, adapting to any space.
- Compact Slim Design reduces footprint and simplifies integration into existing systems.
- Less need for inspection hatches, resulting in savings in installation costs.
Specifications of the Samsung ERV Heat Recovery Unit
| Feature | Description |
|---|---|
| Power supply/frequency | 220-240V - 50/60 |
| Air Flow Rate Max/Std/Min | 350/350/256 m³/h |
| Fan (Max/Std/Min useful static pressure) | 15.8/10.2/8.5 mmH2O - Pa 155/100/83 |
| Fan Motor Type | BLDC |
| Heat exchange efficiency Cooling | 70/70/74 % |
| Heat exchange efficiency Heating | 78/78/79 % |
| Enthalpy exchange efficiency Cooling | 50/50/55 % |
| Enthalpy exchange efficiency Heating | 70/70/76 % |
| Rated power consumption | 115/80/50 W |
| Nominal absorbed current | 0,70 A |
| Power cables | CV 1.5 / CV 2.5 mm² |
| Data transmission cables | VCTF 0.75 / VCTF 1.5 mm² |
| Sound pressure Max/Std/Min/Silence. | 32/29/26/23 dBA |
| Net weight | 42.5 kg |
| Transported weight | 53.5 Kg |
| Net dimensions (WxHxD) | 1012 x 270 x 1000 mm |
| Channel flange Resume/Expulsion/Environment | 200 mm diameter |
There are no reviews
Data sheet
- Type: Heat recovery units
