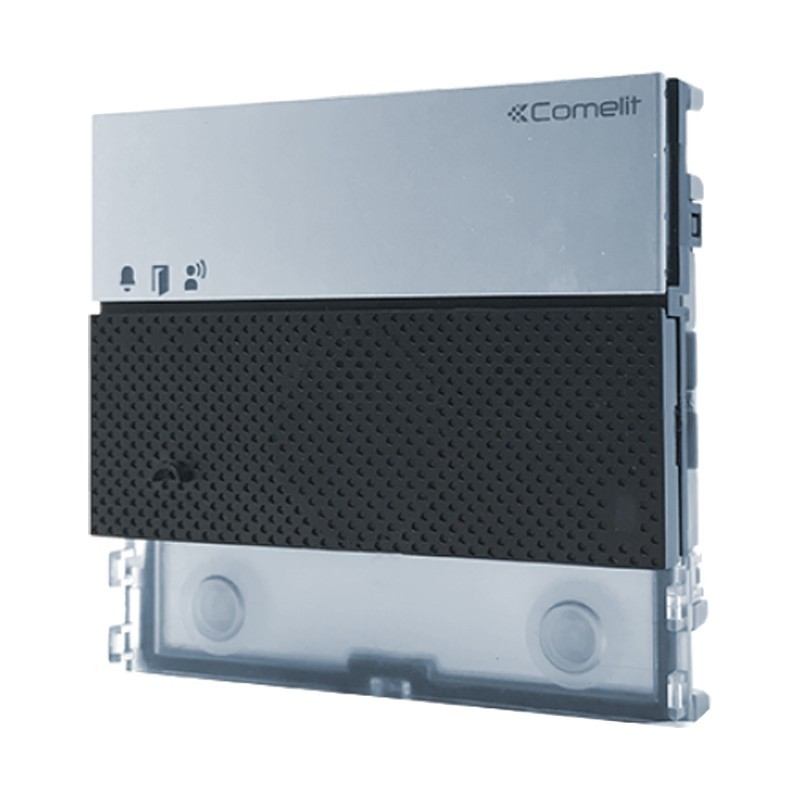

Comelit audio module for Ultra Simplebus2 UT2010 push-button panel
COE UT2010
8023903399967
Comelit audio module for Ultra Simplebus2 system push-button panel, for use in systems with power supply unit type 1210 / 1210A.
Comelit audio module for Ultra Simplebus2 UT2010 push-button panel
€251.23
€251.23
Tax included
Tax included
Pay in installments with Klarna
Items Available: 3
Benefits:
- Easy to install and simple to configure thanks to smart programming of call buttons
- Twilight sensor to automatically turn off the backlight of name tags during daylight hours
- Omni-directional digital microphone and dual speakers for high fidelity audio
- Audio/visual aid signals for the disabled that can be activated via programming.
- Ready for 2 call buttons
- To be completed with cap, single button or double button in professional plastic with anti-yellowing and anti-opacification treatment or in aluminium.
- Adjustments and programming without removing the module
- Dimensions: 1 Ultra module
- ULTRA, the new most technologically advanced push-button panel with maximum ease of installation.
Features:
- Modular typology
- Dimensions: Product height (mm) 90 - Product width (mm) 95,6 - Product depth (mm) 27
- Product weight (g) 275
- Product colour Black RAL9005, Grey RAL 7042, Aluminium
- Material ABS, Plastic, Aluminium Alloy
- Flush Mounting Yes
- Wall Mount Yes
- Compatible with: Audio/video Simplebus 2 with power supply unit art. 4888C - Audio/video Simplebus 2 with power supply unit art. 1210/1210A - Audio/video Simplebus 2 with power supply unit art. 1209 - Audio Simplebus 2 with power supply unit art. 1210/1210A
- Microphone Digital audio sensor MEMS, omnidirectional
- Loudspeaker 28mm (Ø), 8 Ohm, 1W (2)
- Power supply type Power supply from video door phone bus
- Power supply voltage 27÷33 VDC (Bus)
- Stand-by absorption (W) 1.5
- Maximum absorption (W) 3.5
- Type of call Buttons
- Number of buttons (n°) 2
- Colour of backlighting White, Off
- Terminals RTE GND SE- NO NC COM V- V+ L L
- Number of inputs (No.) 1
- Number of outputs (No.) 2
- Communication ports Micro-USB
- Brightness sensor Yes
- Twilight sensor Yes
- Speaker Volume Yes
- Microphone Volume Yes
- Backlight brightness Yes
- Degree of protection IP54
- Vandal-proof degree of protection IK IK08
- Operating temperature (°C) -25 ÷ 55
- Operating humidity (RH max - %) 25 ÷ 75
- Environmental class IV
- Compliance and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
- Door opener Yes
- Number of auxiliary relays (n°) 1
- Input for local door opener button Yes
- Input for door open signalling Yes
- Visual signalling of system status Yes
- Acoustic signalling of system status Yes
- Voice synthesis of system status Yes
Data sheet
- Type:
- Door stations/Outdoor Intercoms
- Components:
- Modules
