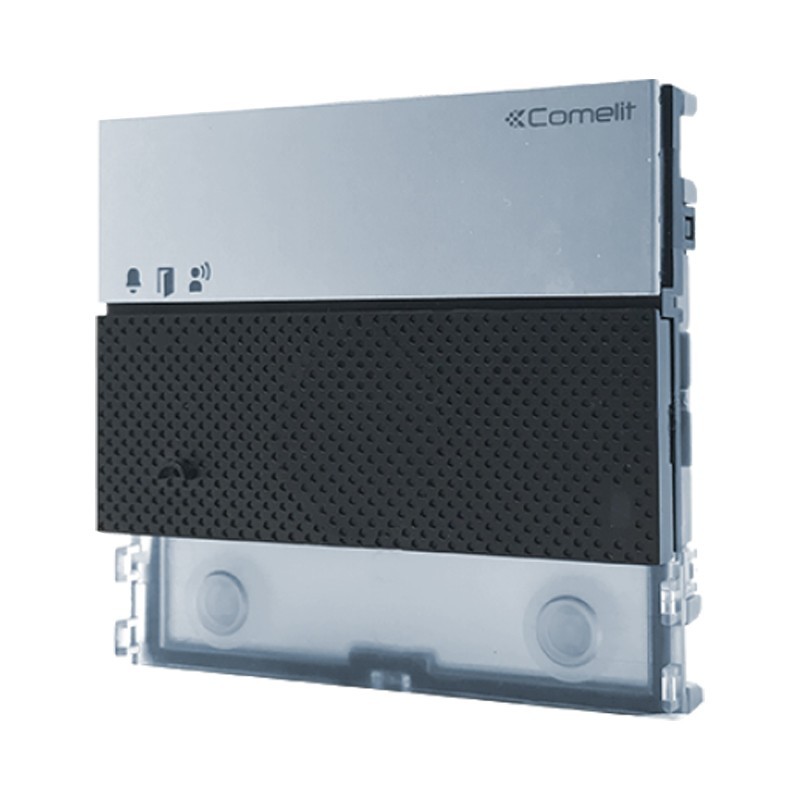

Comelit audio module for Ultra Simplebus1 push-button panel UT1010

Comelit audio module for Ultra Simplebus1 push-button panel UT1010

Comelit
Comelit
COE UT1010 8023903399950

Comelit audio module for Ultra push-button panel Simplebus1 system. To be used in systems with power supply unit art.1595 and art. 4888C.

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Comelit audio module for Ultra Simplebus1 push-button panel UT1010
Comelit audio module for Ultra Simplebus1 push-button panel UT1010
€183.24
€177.75
€177.75

Lowest price in 30 days:
€183.24
Save 3%
€177.75
Tax included
Calculate shipping cost
Offer expires in
Out of stock
Further availability of the manufacturer
€177.75

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Benefits:

  • Easy to install and simple to configure thanks to smart programming of call buttons
  • Twilight sensor to automatically turn off the backlight of name tags during daylight hours
  • Omni-directional digital microphone and dual speakers for high fidelity audio
  • Audio/visual aid signals for the disabled that can be activated via programming.
  • Ready for 2 call buttons
  • To be completed with cap, single button or double button in professional plastic with anti-yellowing and anti-opacification treatment or in aluminium.
  • Adjustments and programming without removing the module
  • Dimensions: 1 Ultra module
  • ULTRA, the new most technologically advanced push-button panel with maximum ease of installation.

Features:

  • Modular typology
  • Dimensions: Product height (mm) 90 - Product width (mm) 100 - Product depth (mm) 35
  • Product weight (g) 275
  • Product colour Black RAL9005, Transparent, Aluminium
  • Material Polycarbonate, Aluminium alloy
  • Flush Mounting Yes, with dedicated accessory
  • Wall mounting Yes, with dedicated accessory
  • Audio/video Simplebus 2 with power supply unit art. 4888C
  • Audio Simplebus 1
  • Microphone MEMS digital audio sensor, omnidirectional
  • Loudspeaker 28mm (Ø), 8 Ohm, 1W (2)
  • External power supply
  • Supply voltage 33VDC
  • Stand-by power consumption (W) 1.5
  • Maximum power consumption (W) 3.5
  • Call type Buttons
  • Number of buttons (No.) 2
  • Colour of backlighting White, Off
  • Terminals L V+ V- COM NC NO SE GND RTE TX- TX+ RX- RX+
  • Number of inputs (No.) 1
  • Number of outputs (No.) 2
  • Communication ports Micro-USB
  • Twilight sensor Yes
  • Speaker volume Yes
  • Microphone Volume Yes
  • Backlight brightness Yes
  • Operating temperature (°C) -25 ÷ 55
  • Operating humidity (RH max - %) 25 ÷ 95
  • Environmental class IV
  • Conformity and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
  • Door opener Yes
  • Number of auxiliary relays (n°) 1
  • Input for local door opener button Yes
  • Input for door open signalling Yes
  • Yes Visual signalling of system status
  • Yes Acoustic signalling of system status
  • Voice synthesis of system status Yes
  • Button type Mechanical.
