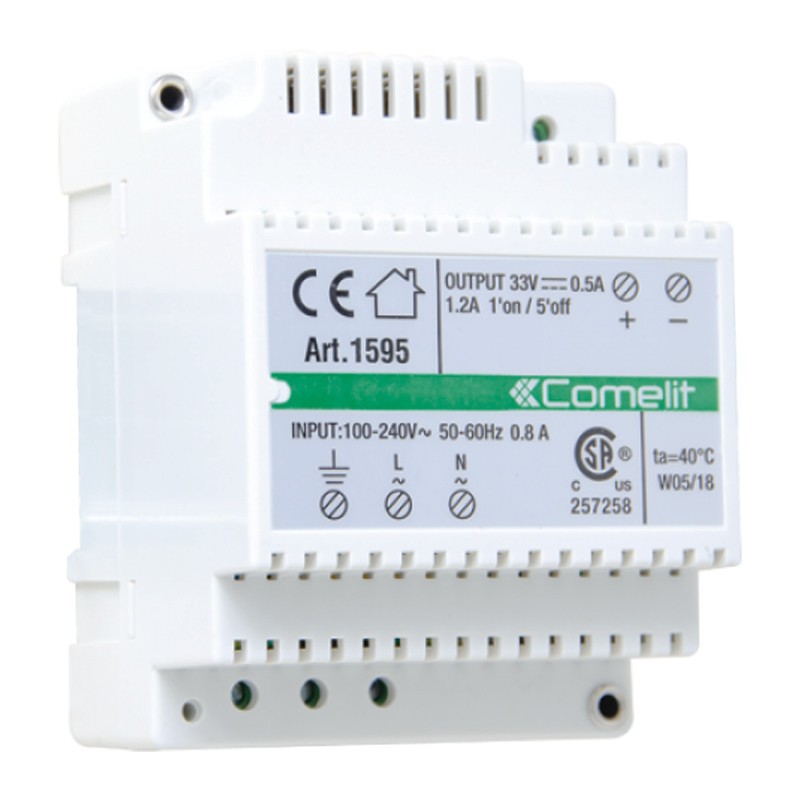

Comelit power supply 33vdc input 120-230vac for ikall door station
COE 1595
8023903211979
Power supply with 120÷230VAC input, 33VDC output 500mA in continuous functioning and 1.2A inrush, for outdoor panels. Equipped with internal protections for overcurrents and short circuits.
€72.29
Items Available: 6
Characteristics:
- Supply voltage 120÷230 VAC
- Output supply voltage 33VDC
- Max output current (A) 0,5
- Maximum inrush current (A) 1,2
- Applicable to DIN rail Yes
- Number of DIN modules (n°) 4
GENERAL DATA
- Dimensions (mm) Height (mm) 62 Width (mm) 71.7 Depth (mm) 90
- Coating type Plastic
- Colour White
- Operating temperature (°C) -20 ÷ 40
- Operating humidity (% RH max) <90
COMPATIBILITY
- Simplebus 2 audio/video system Yes
- Audio/video system Building Kit Yes
- Audio system Simplebus 2 Yes
- Simplebus 1 audio system Yes
- Vip system Yes
- Audio/video kit system Yes
ELECTRICAL FEATURES
- Maximum output power (W) 60
Hshshshsysbbxbzbzbzbbzzbznxnzbzbhzxsbbbxbzbsjshshshs
Tutta la serie modo master buona e bella oltre ad essere economica.
Data sheet
- Type: Power supplies
