Comelit Address Module 4 Supervised Inputs 41IOM040
COE 41IOM040
8023903288179
Comelit addressed module, 4 supervised inputs, with the following features:
- Supply voltage 15÷32VDC
- Stand-by absorption 0.3 mA
- Rated absorption 300uA@27 VDC
- Absorption with 1 LED on 4 mA
- Maximum output current(s) 0.75A@28VDC/0.5A@120VAC
- Number of supervised inputs 4
- Degree of protection IP21
- Isolator Yes
- Standards EN EN54-17, EN54-18
- Dimensions: Height 80mm - Width 142mm - Depth 45mm
- Type ABS cover materials
- Color: white, transparent cover
- Weight: 230 grams
- Operating temperature: -10/+60°C
- Cable cross section for terminals (mm) 0.4 ÷ 2.5mm
€66.73
Out of stock
Incoming

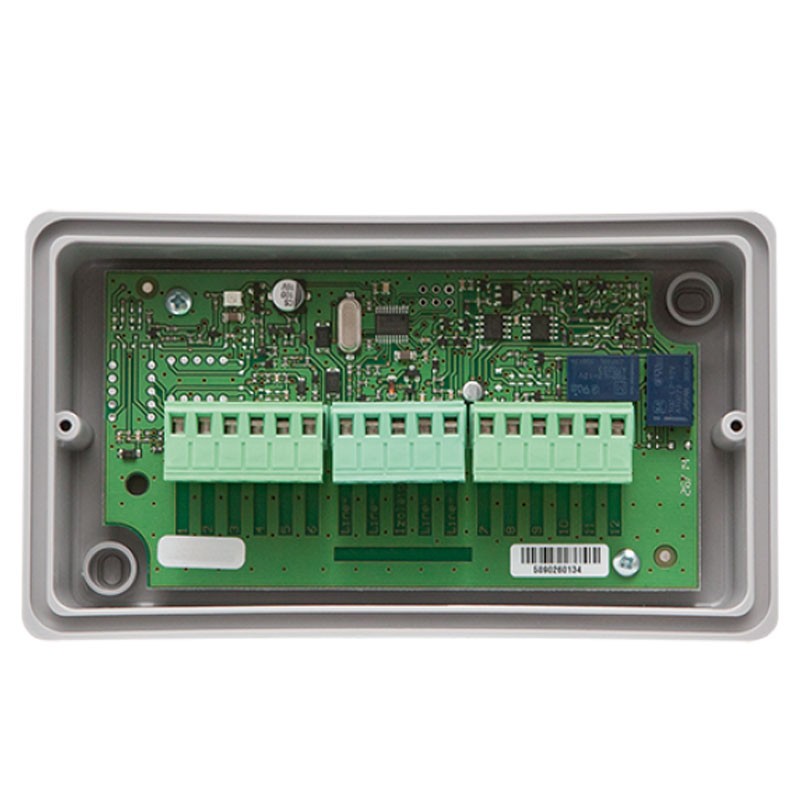

The 41IOM040 addressed module, with integrated on-board isolator, controls four balanced inputs. It is loop-powered and is controlled by the control panel by means of the communication protocol. The module is supplied in a plastic case suitable for wall mounting equipped with a transparent cover to enable easy visual inspection. Certified according to EN 54-17 and EN 54-18.
There are no reviews
Data sheet
- Type: Indexed Modules
