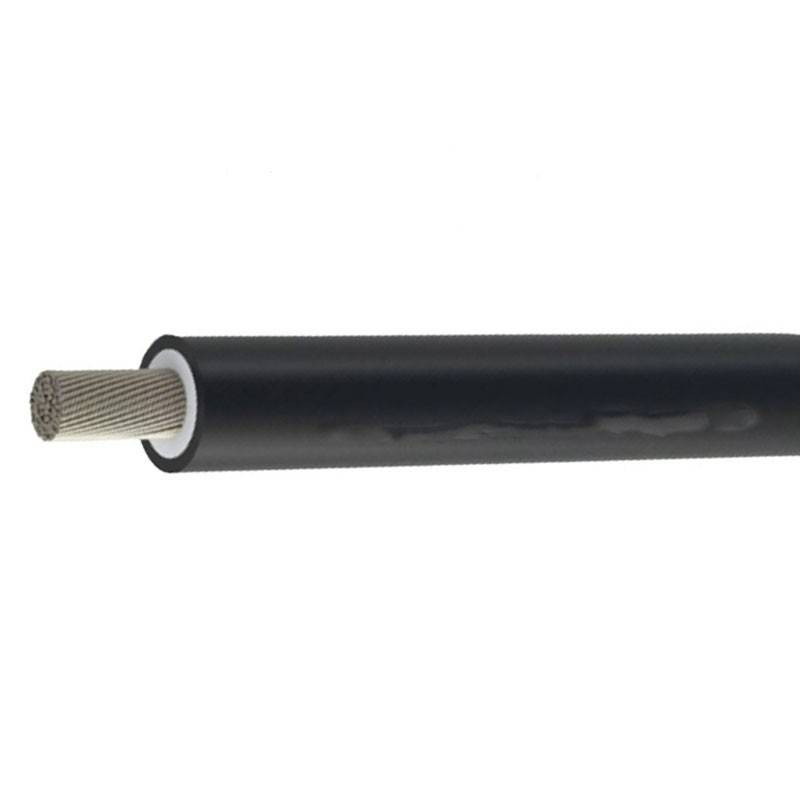

Flexible single-core cable for photovoltaic systems 1x10 sq. mm black H1Z2Z2-K1X10N500


9X9 H1Z2Z2-K1X10N500

Flexible single-core cable for photovoltaic systems 1x10 sq mm with the following characteristics:


  • Approximate conductor diameter: 4mm
  • Average insulation thickness: 0.7mm
  • Average sheath thickness: 0.8mm
  • Approximate production diameter: 7.2mm
  • Maximum electrical resistance at 20°C: 1.95 ohm/km
  • Maximum voltage: 1800 V DC - 1200 VAC
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -40°C
  • Minimum installation temperature: -40°C
  • Maximum short-circuit temperature: 250°C
  • Maximum tensile stress: 15 N/mm2
  • Minimum bending radius: 4 times the maximum outer diameter
  • Sheath color: black


The selling price is per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Request info about this product

Flexible single-core cable for photovoltaic systems 1x10 sq. mm black H1Z2Z2-K1X10N500

€2.05 Tax included
€2.05

Flexible single-core cable for photovoltaic systems 1x10 sq. mm black H1Z2Z2-K1X10N500

€2.05
Tax included
klarna Pay in installments with Klarna
Items Available: 191
qty

Flexible single-core cable for photovoltaic systems 1x10 sq. mm black H1Z2Z2-K1X10N500

€2.05

Buy it within and receive it from Tuesday, 27 February
Two-year warranty
Secure Payment

Flexible single-core tinned cable for photovoltaic system connections. Insulation and sheathing made of halogen-free, flame-retardant elastomeric compound.


Characteristics:

  • Conductor: Flexible tinned copper cord, class 5
  • Insulation: Special quality cross-linked rubber compound LS0H in accordance with EN 50618 LS0H = Low Smoke Zero Halogen
  • Outer sheath: LS0H compound of special quality cross-linked rubber conforming to EN 50618


Conditions of use: For the interconnection of elements of photovoltaic systems. Suitable for fixed outdoor and indoor installation within exposed or recessed piping or similar closed systems. Suitable for installation directly underground or within buried pipe and for use with class II equipment.

Data sheet

Type:
Cables photovoltaic
Cross-Section:
10mmq
