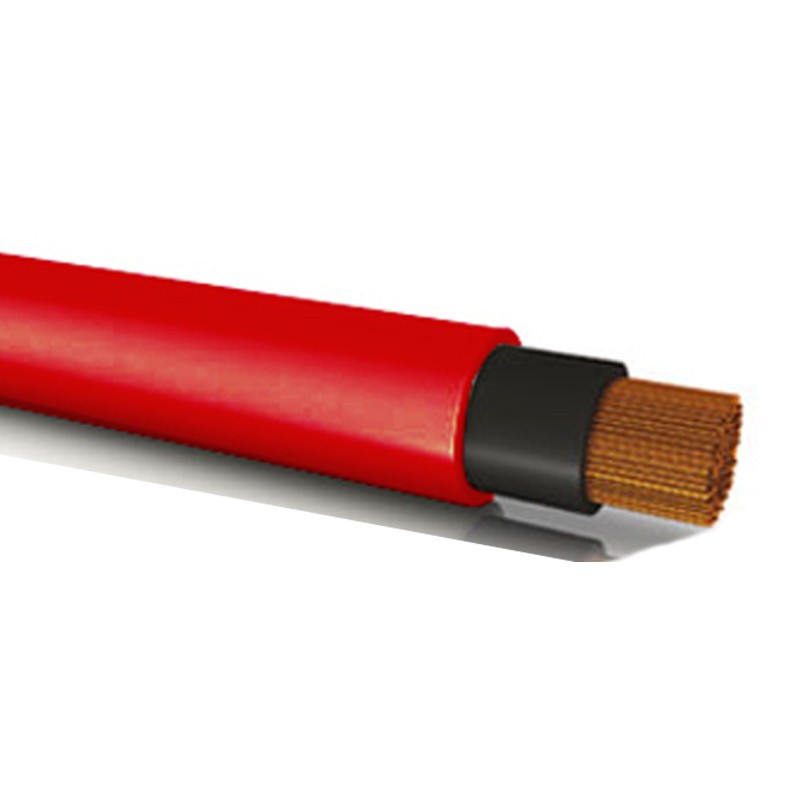

Unipolar Flexible Photovoltaic Cable 1X6MMQ Red
9X9 H1Z2Z2-K1X6RO
Unipolar flexible photovoltaic cable 1X6MMQ color Red, tinned. Insulation and sheathing made of flame-retardant halogen-free elastomeric compound. Conductor diameter 3.0mm, average insulation thickness 0.7mm, average sheath thickness 0.9mm.
Suitable for interconnection of photovoltaic system elements.
Suitable for fixed installation outdoors and indoors, within exposed or recessed piping or similar closed systems.
Suitable for installation directly underground or within buried pipe and for use with class II equipment.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
€1.26
Items Available: 68480
: 5400
Specifications:
- Flexible tinned copper rope, class 5
- Insulation LS0H compound of special quality cross-linked rubber conforming to EN 50618
- Outer sheath LS0H compound of special quality cross-linked rubber in accordance with EN 50618
- Maximum voltage: 1800 VDC - 1200 VAC
- Maximum operating temperature: 90°C
- Minimum operating temperature: -40°C
- Minimum installation temperature: -40°C
- Maximum short-circuit temperature: 250°C
- Maximum tensile stress: 15 N/mm2
- Minimum bending radius: 4 times the maximum outer diameter
There are no reviews
Data sheet
- Type: Cables photovoltaic
- Cross-Section: 6mmq
