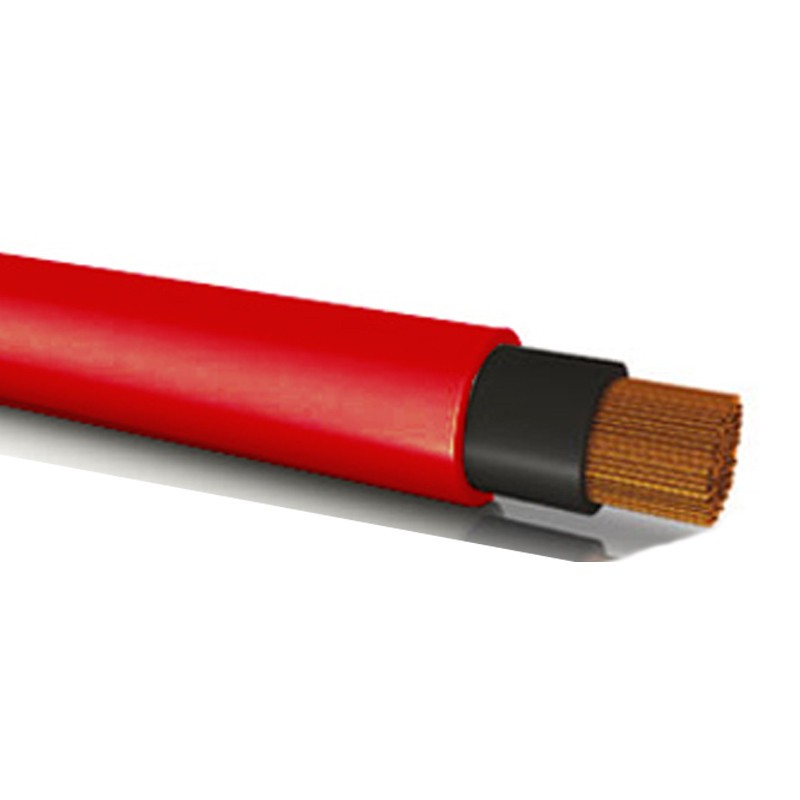

Unipolar Flexible Photovoltaic Cable 1X4MMQ Red

Unipolar Flexible Photovoltaic Cable 1X4MMQ Red


9X9 H1Z2Z2-K1X4RO

Unipolar flexible photovoltaic cable 1X4MMQ, Red color, tinned. Insulation and sheathing made of halogen-free, flame-retardant elastomeric compound. Conductor diameter 2.5mm, average insulation thickness 0.7mm, average sheath thickness 0.8mm.

Suitable for interconnection of photovoltaic system elements.

Suitable for fixed installation outdoors and indoors, within exposed or recessed piping or similar closed systems.

Suitable for installation directly underground or within buried pipe and for use with class II equipment.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
Request info about this product
Unipolar Flexible Photovoltaic Cable 1X4MMQ Red

Unipolar Flexible Photovoltaic Cable 1X4MMQ Red

€0.86 Tax included
€0.86

Unipolar Flexible Photovoltaic Cable 1X4MMQ Red

The minimum purchase order quantity for the product is 100.

€0.86
Tax included
klarna Pay in installments with Klarna
Items Available: 41663
qty

Unipolar Flexible Photovoltaic Cable 1X4MMQ Red

€0.86

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Thursday, 29 February
Two-year warranty
Secure Payment
Easy return within 14 days

Specifications:

  • Flexible tinned copper rope, class 5
  • Insulation LS0H compound of special quality cross-linked rubber conforming to EN 50618
  • Outer sheath LS0H compound of special quality cross-linked rubber in accordance with EN 50618
  • Maximum voltage: 1800 VDC - 1200 VAC
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -40°C
  • Minimum installation temperature: -40°C
  • Maximum short-circuit temperature: 250°C
  • Maximum tensile stress: 15 N/mm2
  • Minimum bending radius: 4 times the maximum outer diameter

Data sheet

Type:
Cables photovoltaic
Cross-Section:
4mmq
