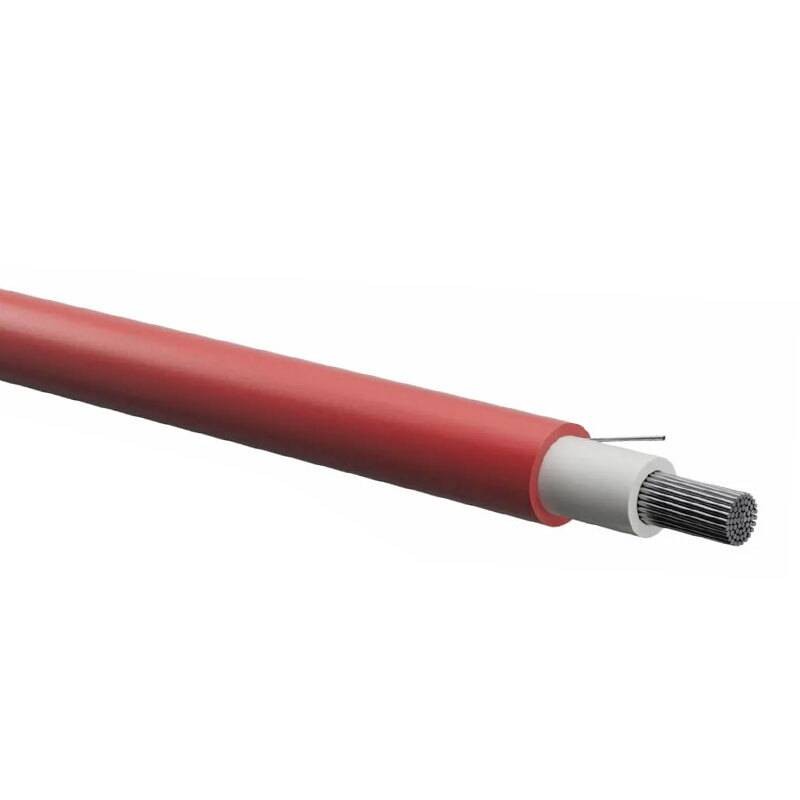

Flexible single-core cable H1Z2Z2-K for photovoltaic systems 1x6 sq. mm red
9X9 H1Z2Z2K1X6RO1000
Single-core Photovoltaic Cable H1Z2Z2 is designed for the interconnection of photovoltaic systems, providing maximum safety and strength due to its flexible tinned copper structure and halogen-free LS0H sheathing. Suitable for indoor and outdoor fixed installations, with the following characteristics:
-
Approximate conductor diameter: 3 mm
-
Average insulation thickness: 0.7 mm
-
Average sheath thickness: 0.8 mm
-
Approximate production diameter: 6 mm
-
Max. electrical resistance at 20°C: 3.39 ohm/km
-
Sheath color: red
The selling price is intended per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€1.31
Items Available: 24211
: 21700
Two-year warranty
H1Z2Z2-K photovoltaic cable: tinned copper, LS0H and environmental resistance
Tinned copper conductor: reliability and durability
The H1Z2Z2-K cable has a class 5 tinned copper conductor, which offers greater resistance to oxidation and ensures excellent electrical performance over time. This feature makes it ideal for photovoltaic systems, where reliability is essential.
LS0H sheathing: safety in case of fire
The LS0H cross-linked elastomeric compound sheathing and insulation make the cable halogen-free, with low emission of smoke and toxic gases in case of fire. This makes it suitable for indoor installations and places where safety is a priority.
Weather and environmental resistance
The cable is designed to resist UV, ozone and adverse weather conditions, ensuring a long service life even in outdoor installations. It is certified according to EN 50618 and IEC EN 50289-4-17 for UV resistance.
Applications and laying methods
The cable is ideal for photovoltaic installations and can be installed in a variety of ways:
-
Outdoor and indoor, in exposed or recessed conduits
-
Fixed laying on structures, conduits or catwalks
-
Directly laid underground or in buried pipe, complying with safety standards
-
Compatible with class II equipment
Technical Characteristics
| Feature | Value |
|---|---|
| Approximate conductor diameter | 3 mm |
| Average insulation thickness | 0.7 mm |
| Average sheath thickness | 0.8 mm |
| Approximate production diameter | 6 mm |
| Max. electrical resistance at 20°C | 3.39 ohm/km |
| Maximum voltage | 1800 V DC - 1200 VAC |
| Maximum operating temperature | 90°C |
| Minimum operating temperature | -40°C |
| Minimum installation temperature | -40°C |
| Maximum short-circuit temperature | 250°C |
| Maximum tensile stress | 15 N/mm² |
| Minimum bending radius | 4 times the maximum outer diameter |
| Sheath color | Red |
There are no reviews
Data sheet
- Type: Cables photovoltaic
- Cross-Section: 6mmq
