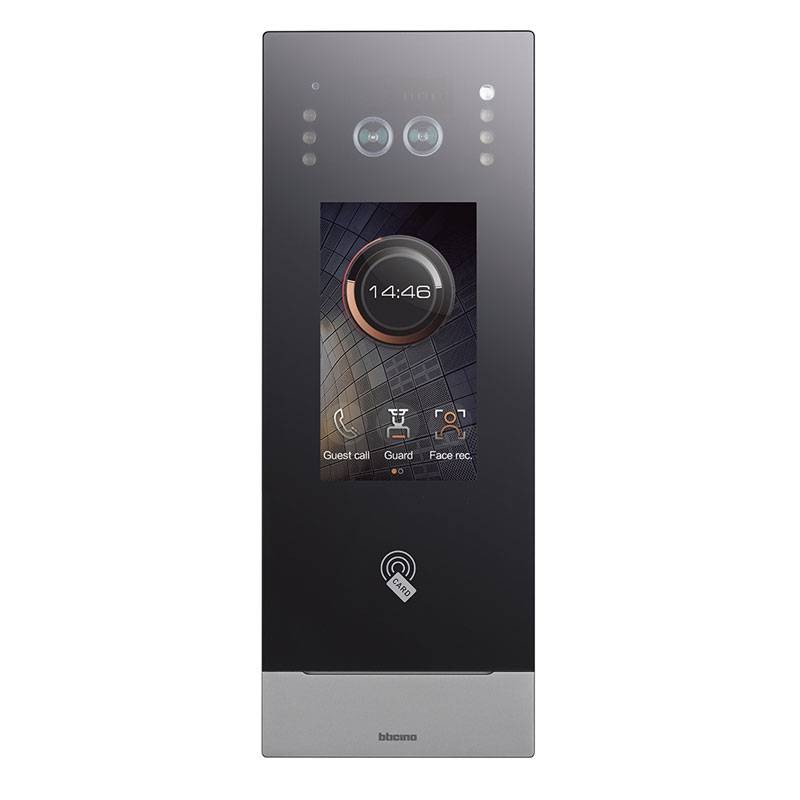

Bticino Small 4.3" external IP Video Intercom 374005
BTI 374005
8005543693414
External Video Intercom for Bticino Small IP systems with 4.3-inch vertical display, facial recognition and RFID badge reader for access control functions.
The device can be powered via PoE (power over Ethernet) or directly via power supply code 375005.
Recessed installation with box code 375009.
Bticino Small 4.3" external IP Video Intercom 374005
€688.84
€688.84
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Frequently bought together
Via touch display, calls can be made to the apartments, concierge switchboard, and enter the access code to activate the opening of the electric lock.
Configuration for different call modes:
- Apartment code (Area - Condominium - Staircase - Floor - Apartment)
- Numeric or alphanumeric codes for residents
- Address book with list of contacts
Menu access for maintenance and settings management (e.g., backlight brightness, ringer volume, speaker volume, key volume, screensaver duration).
Ability to upload custom screensavers via configuration software.
Features:
- 24Vdc voltage
- IP54 degree of protection
- Dimensions 245x92x64mm
- Height 245mm
- Width 92mm
- Depth 64mm
- Maximum cable cross section 0.8mm
- IP plant type
- RJ45 insertion
- Ruggedness grade IK07
- Recommended installation height 160-165cm
- Operating temperature -40° - +70°C
- Field of view (in degrees) 80°H - 53°V
- 1080p resolution
- Face recognition distance 30-80cm
- Color Silver
- IP Video Doorphone System Series
Data sheet
- Type:
- Door stations/Outdoor Intercoms
- System:
- IP
