Bticino Linea 2000 audio 2-wire 1-button intercom panel 342911
BTI 342911
8012199653518

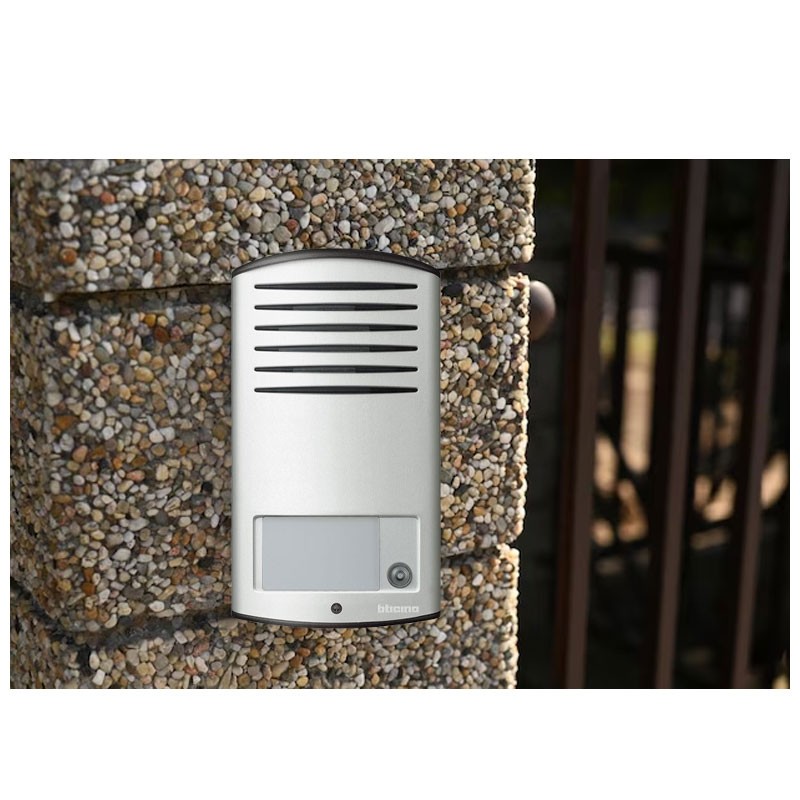

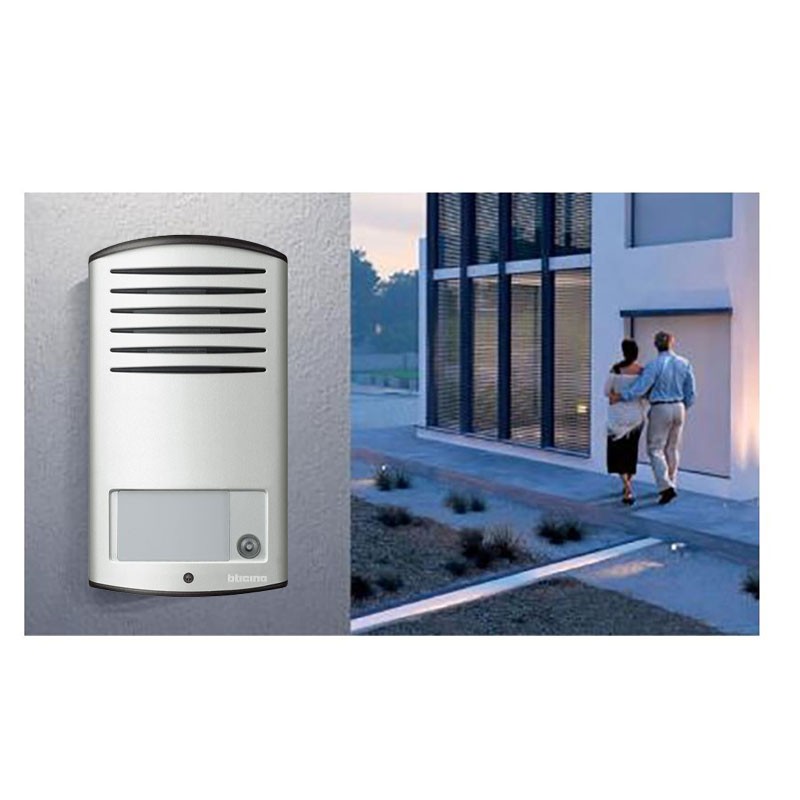

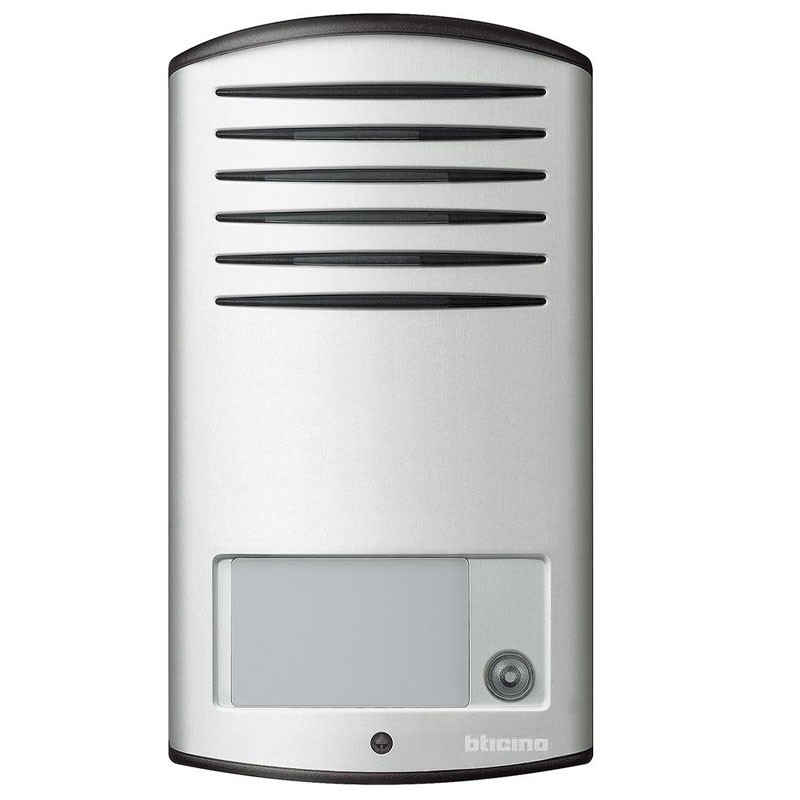

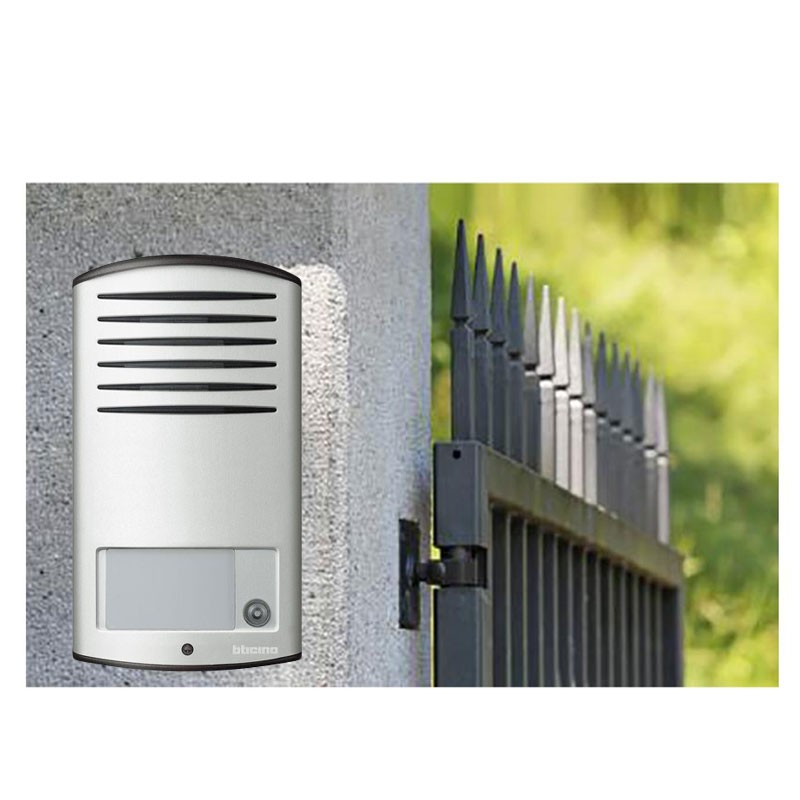

The Bticino Linea 2000 audio push-button panel (model 342911) is a reliable and durable solution for intercom systems with 2-wire technology. Equipped with a call button, it is designed for wall-mounted installations and offers excellent weather resistance thanks to its aluminum construction and IP54 rating.
-
2-wire technology compatible with Bticino intercom systems
-
Durable aluminum frame with modern design
-
Green LED illumination of name tag for nighttime visibility
-
IP54 degree of protection against dust and water splashes
-
Impact resistance IK07, ideal for outdoor installations
-
Electric lock activation (18V 4A pulse, 250mA hold)
-
Simple physical configuration with P and N number assignment.
€89.30
Items Available: 19
: 18
Frequently bought together
Durable Design and Versatile Installation
The aluminum front ensures durability and strength, making the hand control suitable for any residential or commercial setting. With IP54 rating, it is protected from dust and rain, while IK07 resistance defends it against impact and vandalism.
Green LED illumination of the name tag ensures visibility even in low-light conditions, improving nighttime usability.
Operation and Configuration
The button panel must be physically configured with two parameters:
- P (door station number): assigns a recognition number to the speech module in the system. The first door station must always be configured with P=0.
- N (call number): allows the buttons of the door station to be associated with the connected door phones or video door phones.
Thanks to 2-wire technology, installation is quick and does not require complex wiring.
Integrated Electric Lock Activation
The pushbutton panel enables activation of anelectric lock connected directly to the S+ and S- terminals with an output of 18V 4A pulse and 250mA holding current. This allows safe and reliable access management.

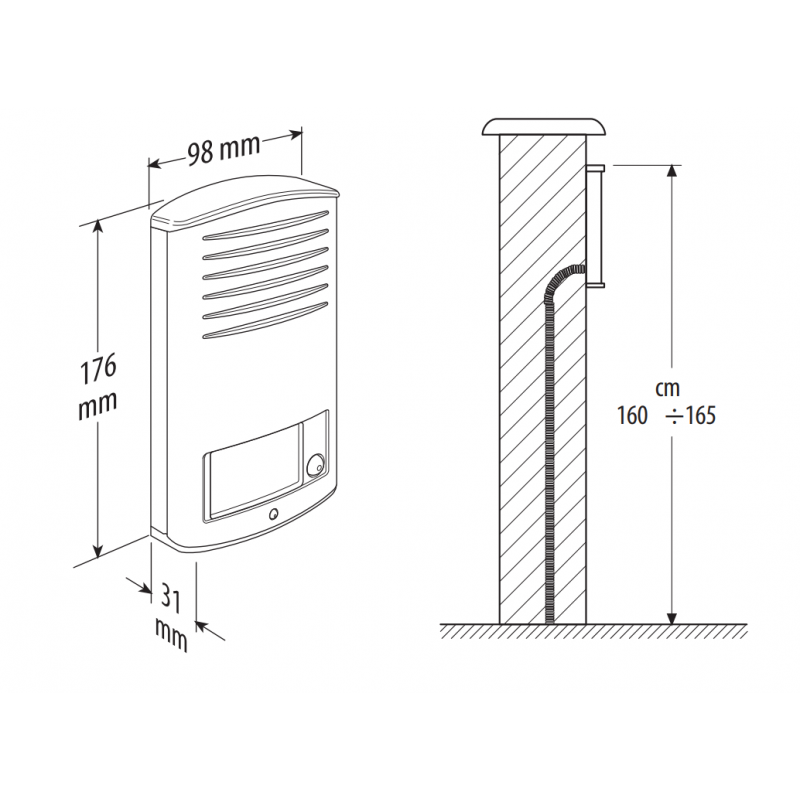

Technical specifications of the Linea 2000 push-button panel
| Feature | Description |
|---|---|
| Degree of protection | IP54 |
| Height | 176 mm |
| Width | 98 mm |
| Depth | 31 mm |
| Calls | 1 |
| System type | 2 wires / 2Wires |
| Ruggedness grade | IK07 |
| Recommended installation height | 160-165 cm |
| Operating temperature | -25° / +70°C |
| Series | 2000 Line |
Site très sérieux.
Remboursent sans problème et rapide.
Conforme à ma demande et identique à celui à remplacer.
Produit de qualité excellente marque produit 2files
Bon produit...Doit remplacer un produit bticino plus ancien.
Tutto ok _____________________________&&&&&&&&&&&&&
Molto positiva. Il pezzo è arrivato in tempi brevi perfettamente imballato.
rapide et emballage soigné très bien
Data sheet
- Type: Door stations/Outdoor Intercoms
- System: 2-Wire
