Bticino KIT single-family Intercom 2-wires 366811
BTI 366811
8005543503638
Single-family audio kit consisting of:
- 1 SPRINT L2 intercom 344232
- 1 LINEA 2000 handset with 1 call button 342921
- 1 Power supply 346040
€143.56
Items Available: 185
: 109
Frequently bought together
The intercom has a lock opening button and configurable button for auxiliary functions (e.g., staircase light control, door unit activation, concierge switchboard call). The devices are wall-mountable. The push-button panel meets the IK07 degree of robustness - IP54 degree of protection.
Technical specifications of kit parts:
Code 342911 LINEA 2000 pushbutton panel (1 button) 1 piece:
- Line 2000 audio pushbutton panel
- 2-wire technology with one call button for wall-mounted installation
- Aluminum front panel
- Name tag illumination with green LEDs
- IP54 degree of protection
- Ruggedness grade IK07
- Allows activation of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max).
- Power supply from SCS BUS: 18 to 27 Vdc
- Standby absorption: 30 mA
- Max. absorption in operation: 65 mA
- 1 Pushbutton
- Wall installation
- Aluminum front panel
- Illumination of name tag with green LEDs
- IP54 degree of protection
- Ruggedness grade IK07

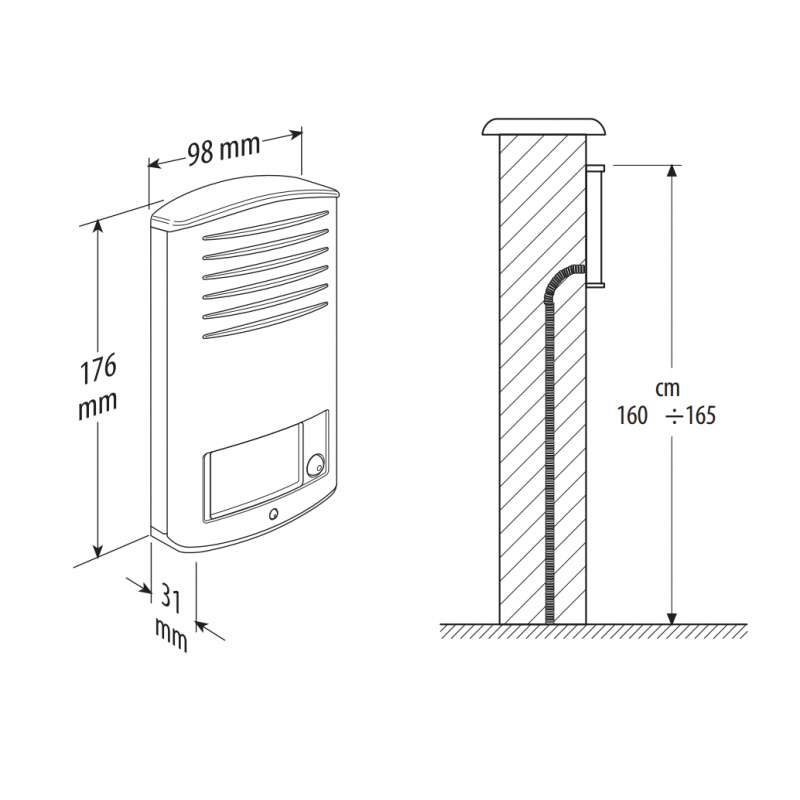

- Dimensions: Height 176 mm - Width 98 mm - Depth 31 mm
- SCS-BUS 2-WIRE Connection
- Installation type: 2 wire / 2 Wires system
- Recommended installation height: 160-165cm
- Operating temperature -25°/+70°C
Code 344232 SPRINT L2 intercom 1 piece:
- 2-wire technology NON-accessible wall-mounted installation
- It is equipped with electric lock activation button and configurable button for auxiliary functions (staircase light switch-on, door unit activation, concierge switchboard call)
- Has terminals for connecting an external floor call button
- If installed in video or mixed audio/video systems as the last upright or apartment section device, it must be equipped with line termination 3499 connected in ENTRA - EXIT on the intercom itself
- The ringer volume can be adjusted to three levels by special selector switch.
- Power supply from SCS BUS: 18 - 27 Vdc
- Standby absorption: 3.5 mA
- Maximum absorption in operation: 35 mA
- Maximum cable cross-section: 2x1mmq
- System type: 2 wires / 2 Wires
- Operating temperature: -5/+40°C
- Color: White
346040 Power supply 1 piece:
- Power supply for 2-wire audio systems in 6-DIN modular housing.
- Power supply 110-240 Va.c. 50-60 Hz
- Provides a low voltage output rating of 26 Vd.c. and a maximum current rating of 600 mA and is protected on the PRI side (with fuse) against overload and short circuit
- It is a double-insulated SELV safety device.
PRI (AC power input):
- Rated voltage: 110 - 240 Vac
- Rated current: 370 - 225 mA
- Working voltage range: 100 - 265 V
- Working frequency range: 47 - 63 Hz
- Power consumption at full load: 20.5 W
- Power dissipation: 4.9 W (max.)
- Efficiency at full load: 80 % (typ.)
- Standby power: < 1 W
- Operating temperature: 5 - 45 °C
- Built-in fuse (PRI SIDE): F1 T2A 250 V (NOT REPLACEABLE)
- Dimensions 6 DIN modules
- Reference standards: IEC EN60950 - IEC 64-8-4 (section 411.1.2.5)
BUS (DC output):
- Rated voltage: 26 V
- Rated current: 0 - 0.6 A
- Power rating: 15.6 W
Observe the following installation rules:
- The power supply must always be installed in appropriate enclosures.
- Must not be exposed to dripping or splashing water
- Do not obstruct ventilation openings
- A double-pole switch with contact separation of at least 3 mm must be used, placed near the power supply. The switch serves the dual purpose of being able to disconnect the power supply from the mains and to protect the power supply
très satisfait du produit et de sa qualité maintenant à voir sur le long terme
Très bon produit, simple à installer
Ottimo prodotto, come da aspettative.
BTicino è sempre una garanzia.
Data sheet
- KIT: Intercom Kits
- Model: Single-family house
- System: 2-Wire
