Bticino Sprint L2 2-wire wall-mounted intercom auxiliary function White 344232
BTI 344232
8005543590584

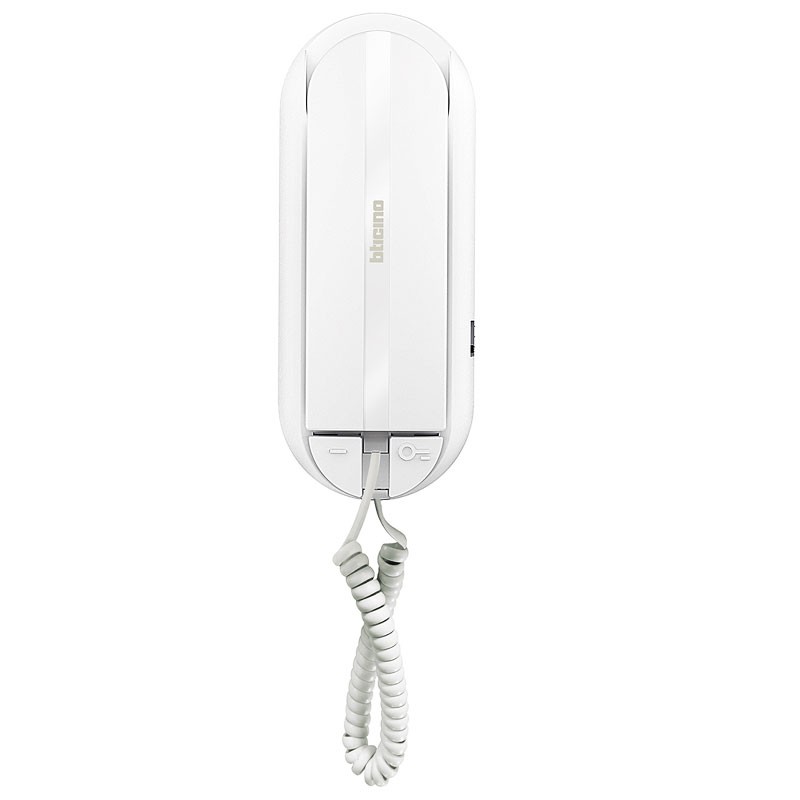

Bticino Sprint L2 intercom with handset, electric lock button and configurable button for auxiliary functions. Adjustable volume and compatibility with video/audio systems. Compact size, ideal for civil and residential installations, with the following features:
-
Technology: 2-wire (not accessorizable)
-
Mounting: Wall-mounted
-
Controls: Electric lock button + 1 configurable auxiliary button
-
Compatibility: Audio/video and mixed systems
-
Ringer volume: Adjustable to 3 levels
-
External connection: Floor call button terminals
-

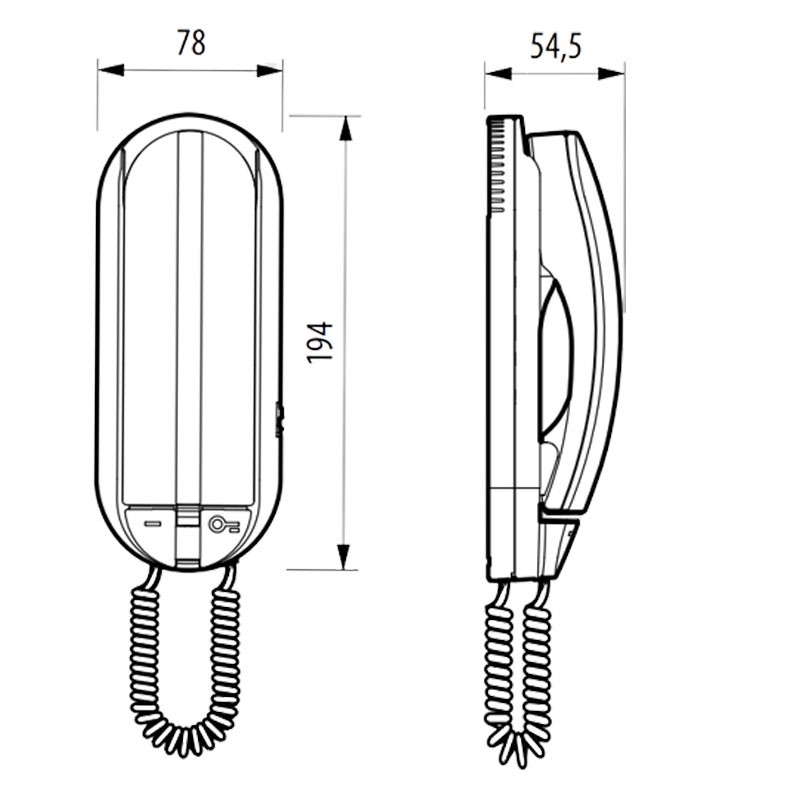

Dimensions: 194×78×54.5 mm
-
Color: White
€45.64
Items Available: 564
: 259
Frequently bought together
Compact Bticino intercom for every installation need
The Sprint L2 intercom is a versatile and essential solution for 2-wire intercom systems, with a compact and elegant design designed for residential and commercial environments. Thanks to 2Wires technology, it enables rapid installation even in already wired contexts, reducing installation time and costs.
Equipped with an ergonomic handset and electric lock button, it allows simple and intuitive control of the entrance. The configurable auxiliary button extends the functionality of the device, adapting it to the specific needs of the user.
Flexible installation and advanced functionality
Designed for wall-mounted installation, the intercom has dedicated terminals for external floor call button. When used as the last device in a leg in video or mixed systems, it requires the insertion of line termination 3499 (connected in ENTRA/ESCI).
Power is supplied directly from SCS BUS (18-27 Vdc), and the power consumption, optimized, ensures energy efficiency: 3.5 mA in standby, 35 mA in operation. The adjustment selector allows three different ringer volume levels to be set, adapting to any living context.
Sprint L2 Intercom Technical Specifications
| Parameter | Value |
|---|---|
| System technology | 2 wires (2Wires) |
| Mounting type | Wall-mounted |
| Power supply | From SCS BUS (18 - 27 Vdc) |
| Stand-by power consumption | 3.5 mA |
| Maximum absorption | 35 mA |
| Ringer volume | 3 adjustable levels |
| Operating temperature | +5 °C TO +40 °C |
| Color | White |
| Series | Sprint L2 |
| Dimensions (H x W x D) | 194 x 78 x 54.5 mm |
| Maximum cable cross-section | 2 x 1 mm² |
très bon achat arrivée à l'heure et produit conforme.
Appareil fonctionne parfaitement.
Malheureusement mon problème n'est pas résolu, car la panne vient de la platine de rue
Data sheet
- Type: Intercoms
- System: 2-Wire
