Intercom with handset Elvox Vimar VOXIE 2 Wires Plus 6 Buttons 40542
VIW 40542
8007352672277

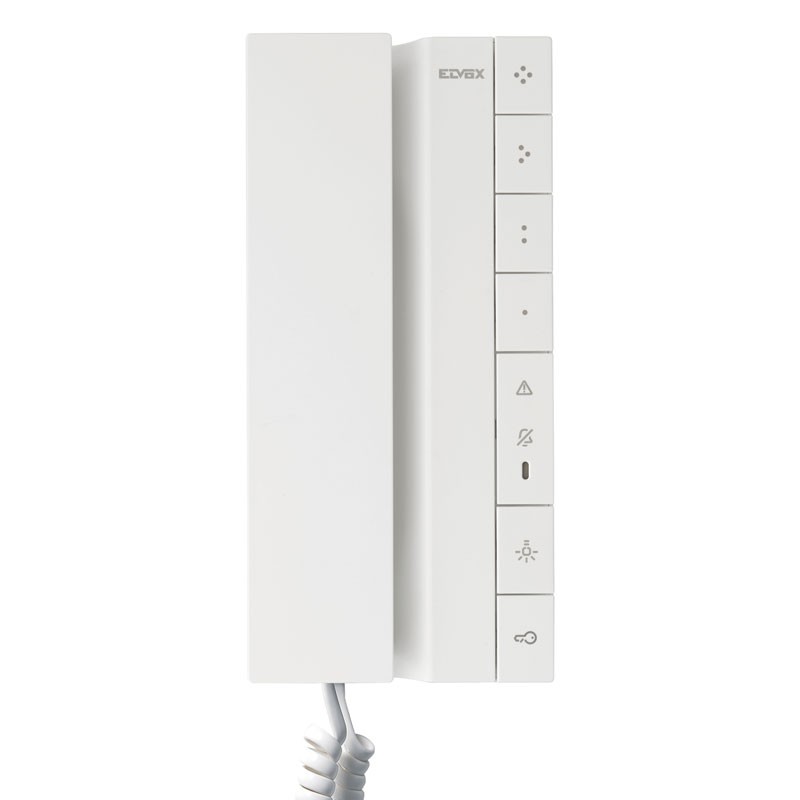

Door entry monitor with handset Elvox Vimar VOXIE 2 Wires Plus 6 buttons for lock release and auxiliary service (stair light), 4 programmable buttons for functions and auxiliary services, wall-mounted, white.
€55.32
Items Available: 74
: 24
Frequently bought together
Features:
- Also suitable for renovations
- With Teleloop, visual and acoustic signals. Crystal-clear sound and visual feedback confirm the activation of functions, making it easy to use even for people who are visually impaired or have hearing aids
- Simplified configuration with dip switches, buttons and software
- Fast and intuitive functions.
Installation options:
- On wall with screws (supplied) and dowels (not included)
- Installation on box: Round box (Vimar V71701) - Rectangular box 3 modules (Vimar V71303, V71703) in vertical position
- British standard square box
- Table-top: with table base accessory 40598.
Technical specifications:
- Absorption: in standby 10 mA; maximum current 100 mA
- Power supply: from BUS terminals 1, 2 - nominal voltage 28Vdc
- Environmental class: Class A1 (indoor use)
- Degree of protection IP30
- Operating temperature: (-5 °) (+40) °C (indoor use)
- Operating environment humidity: 10 / 80% (non-condensing).
Ottimo prodotto e facile da montare......
tutto ok sigillato e conforme
Spedizione sempre celere
Data sheet
- Type: Intercoms
- Model: Intercom function
- System: 2-Wire
Tloop function
